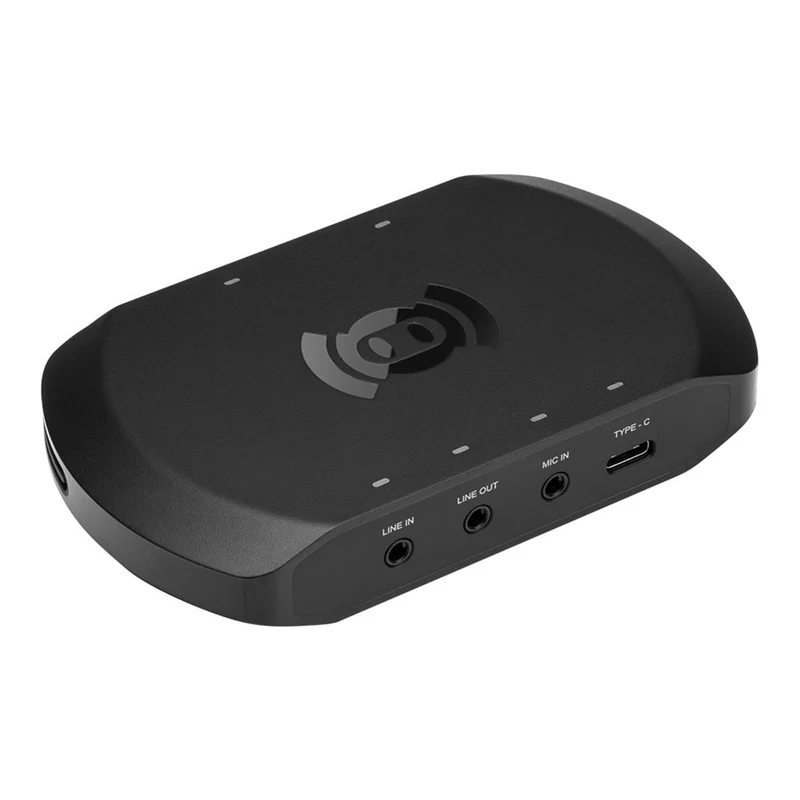

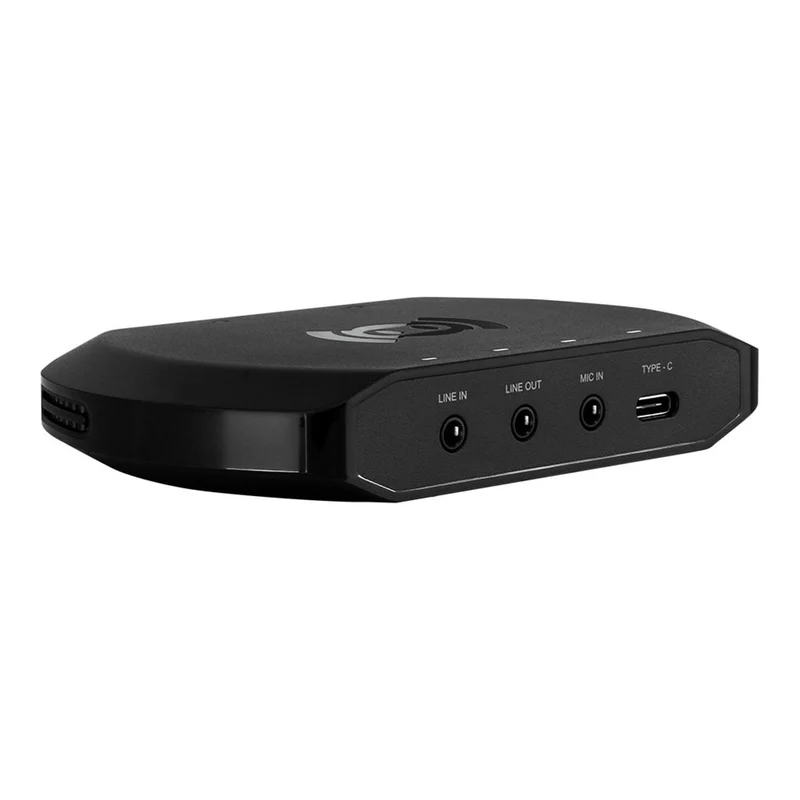

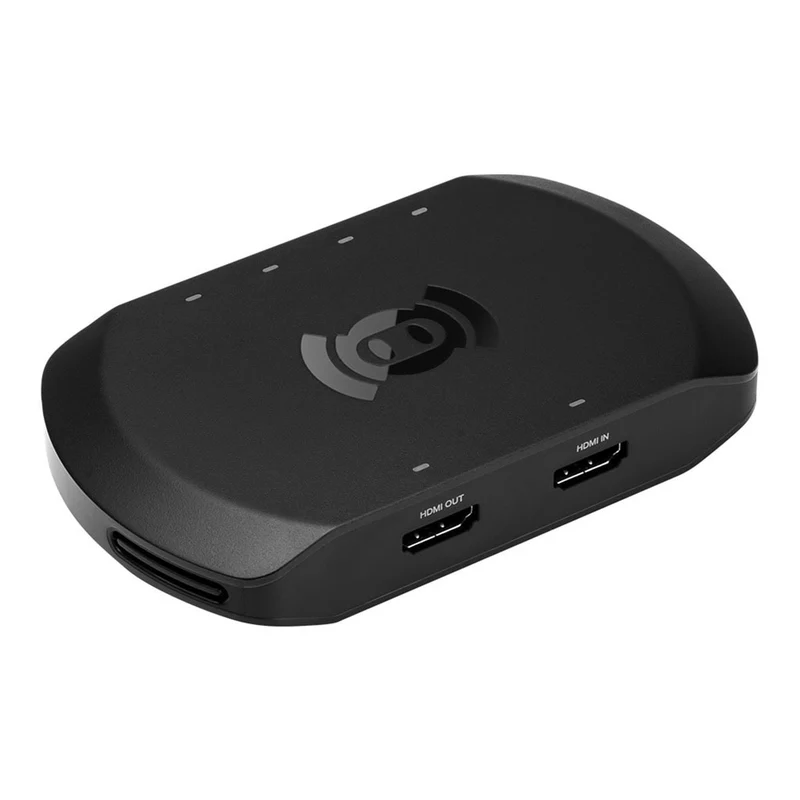

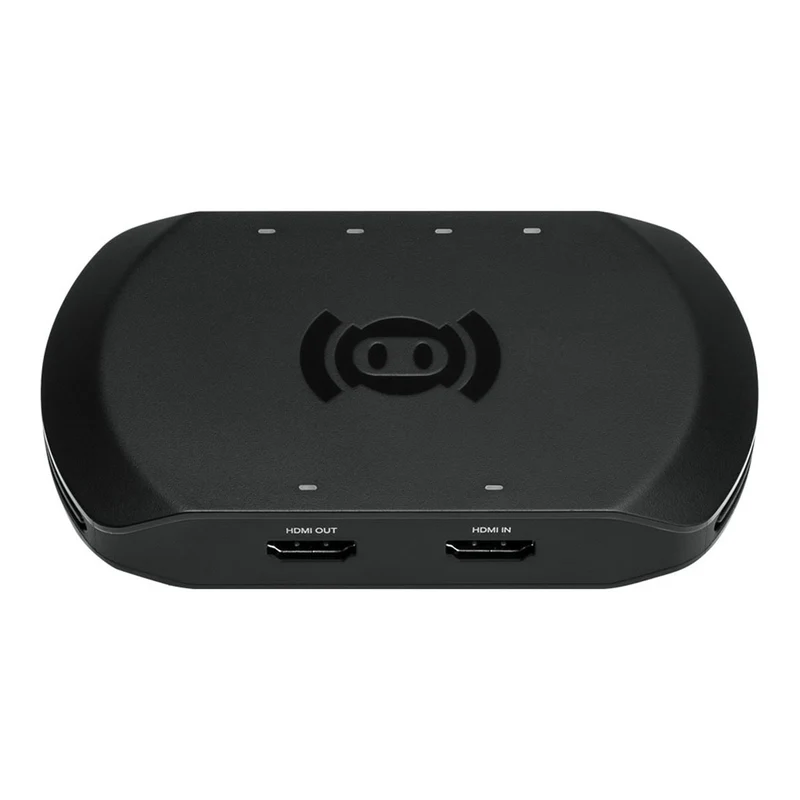

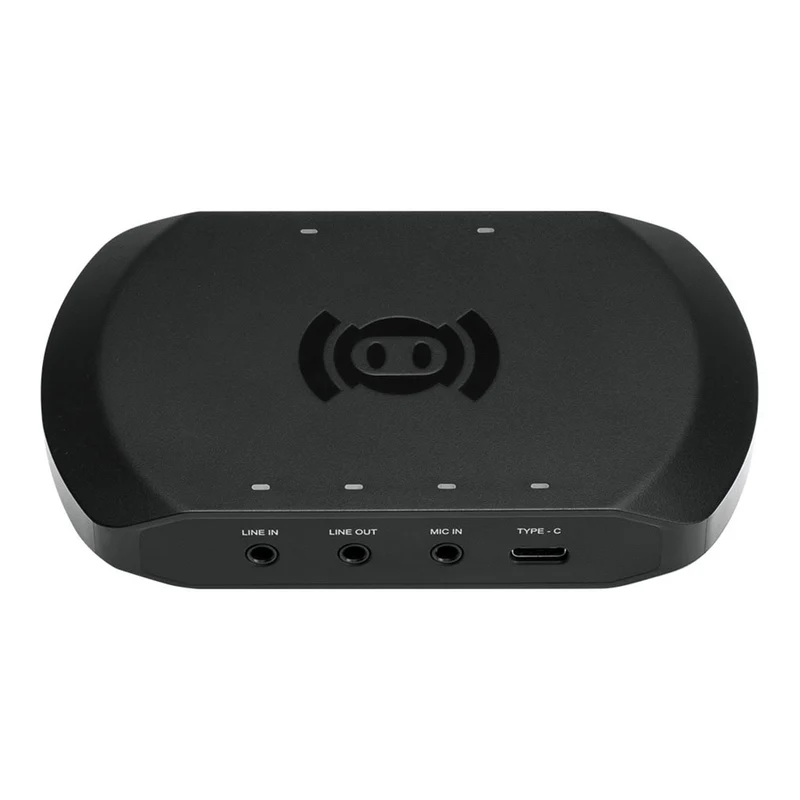

Streamplify Capture 4K

CAPTURE 4K is a versatile streaming device, offering high-resolution 4K/30 streaming capture and up to 4K@60Hz passthrough resolution. It boasts ultra-low latency under 100ms for seamless audio-video syncing, high sampling rate audio capture, and extensive compatibility across platforms like OBS, Twitch, YouTube, and major gaming consoles. Mic-in support and user-friendly status indicators contribute to a seamless streaming experience.

Features:

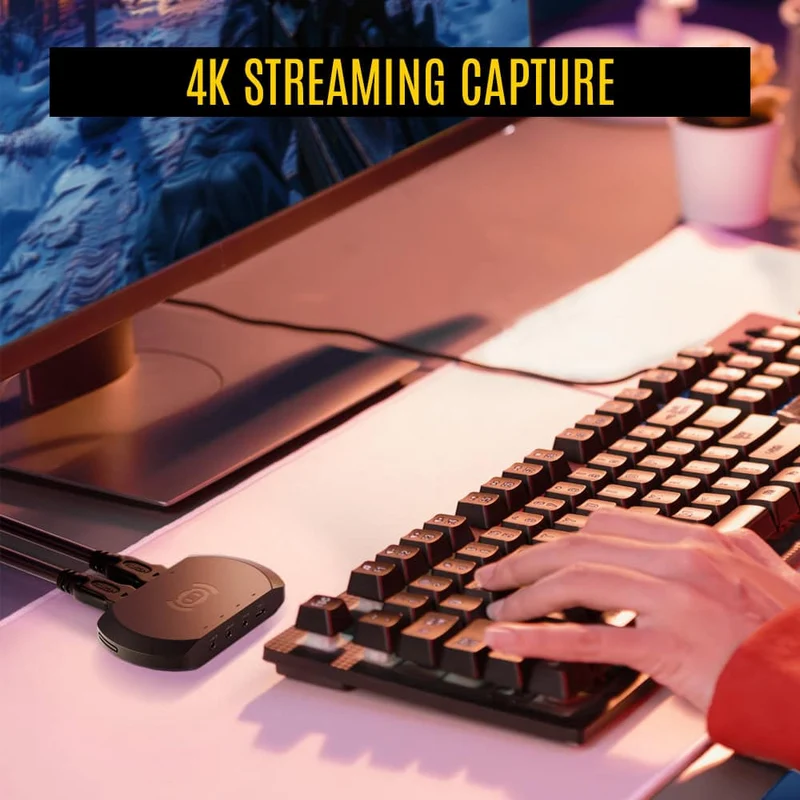

• High resolution 4K/30Hz streaming capture.

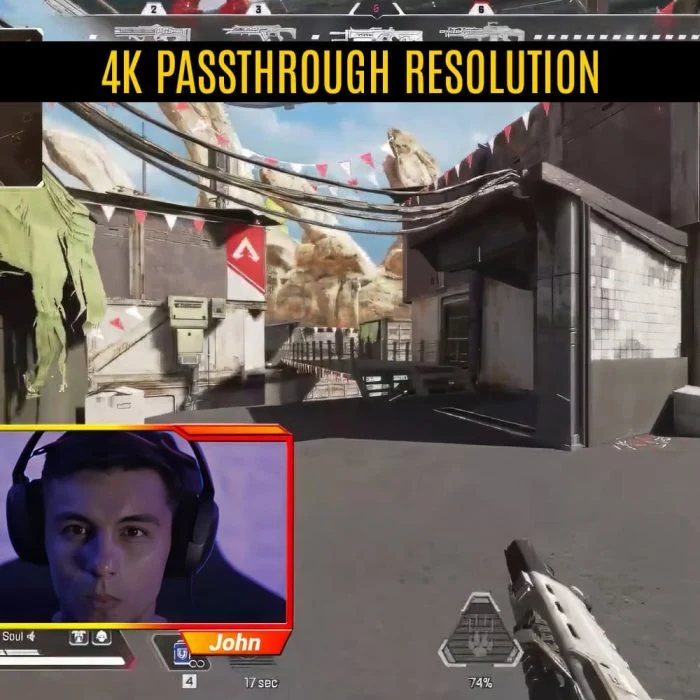

• Up to 4K@60Hz passthrough resolution.

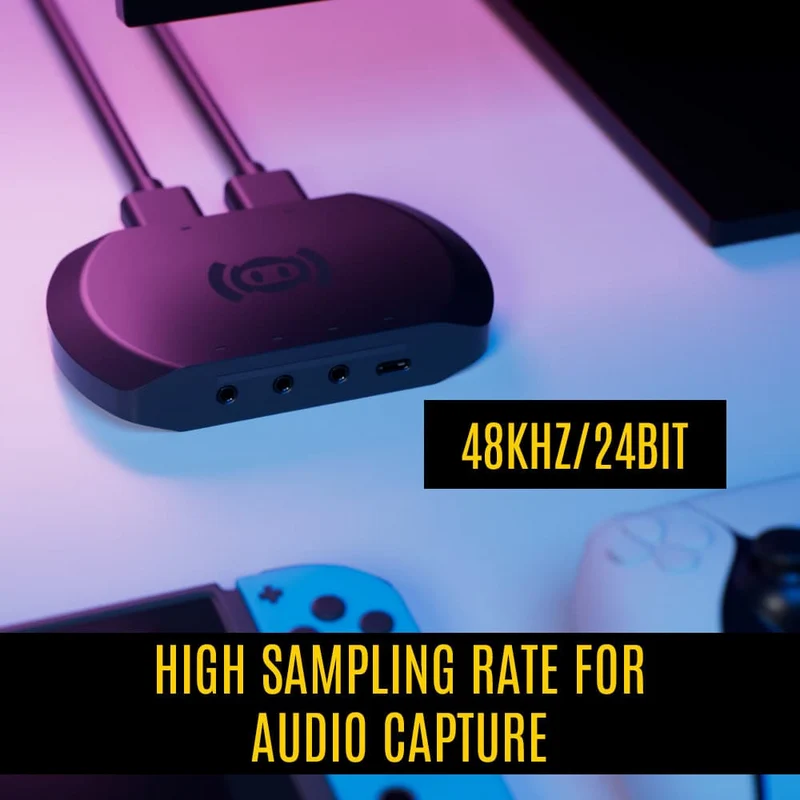

• High sampling rate: 48KHz/24bit for vivid audio capture quality.
• Ultra-low Latency: Sub 100ms for seamless audio/video syncing.
• VRR (Variable refresh rate) and HDR passthrough support.

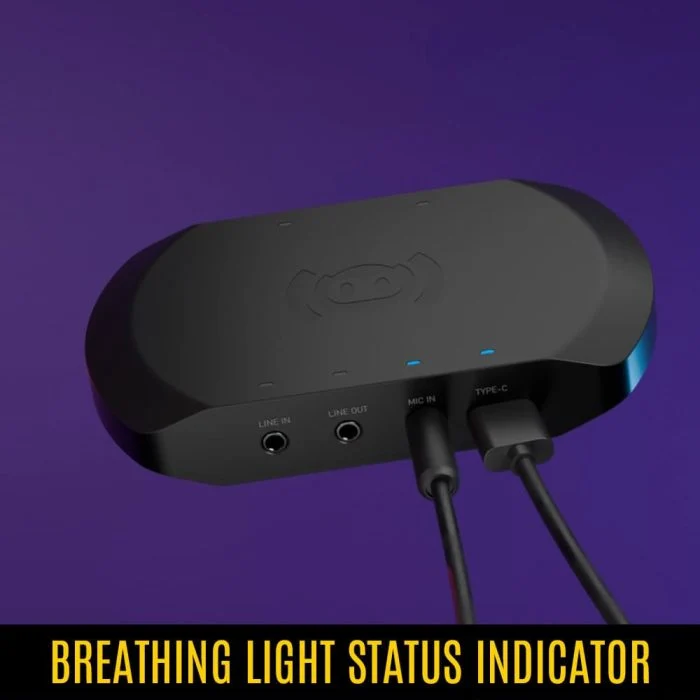

• Breathing light indicates working status.
• Easy connection status checks with LED connector indicator.

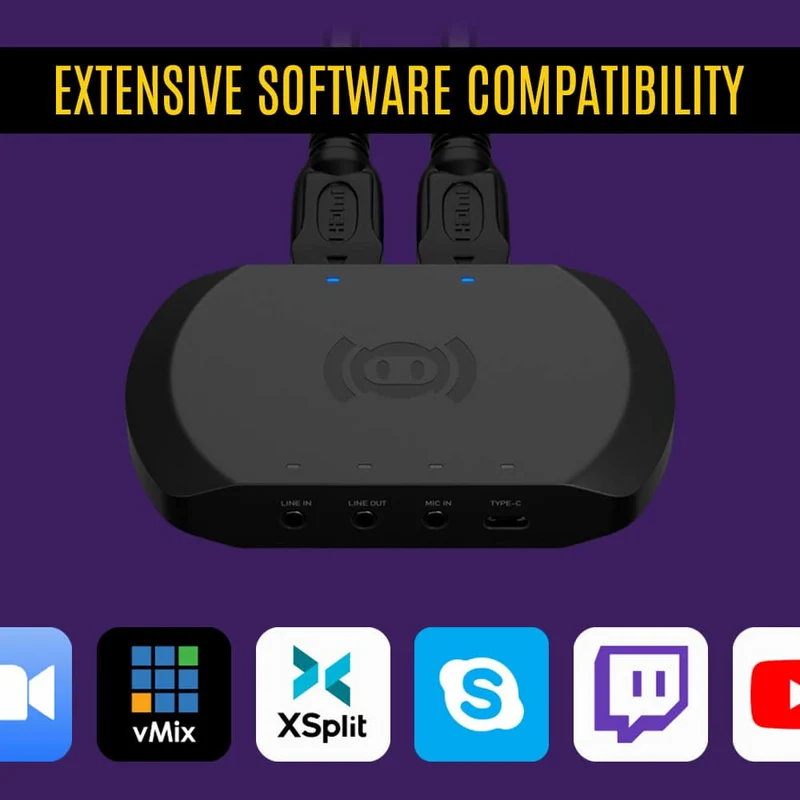

• Versatile platform compatibility for cross-system streaming.
• Compatible with OBS, Twitch, YouTube, XSplit, vMix, Zoom, Skype.
• Supported by PC, Android, iOS, Xbox, PS5, PS4, Nintendo Switch, and more.
• Live commentary and multiple connectivity enabled with mic-in support.

Ultra-Low Latency Streaming

Stream with confidence thanks to sub-100ms latency. Enjoy perfectly synced audio and video, making your streams smoother and more professional.

SPECIFICATION

Model	CAPTURE 4K
Max. Pass-Through Resolution	4K@60Hz, 2560x1440@60Hz, 1920x1080@120Hz, 1080P@60Hz, 720P@60Hz, 480P@60Hz
Max. Recording Resolution	4K@30Hz, 2560x1440@60Hz, 1080p@120Hz, 1080P@60Hz, 720P@60Hz, 480P@60Hz
Record Format	NV12/YUY2/XRGB
Connection type	USB-C 3.2
Audio Capture Format	PCM2.0, sampling rate 48K/24Bit
High Dynamic Range (HDR)	Yes (in passthrough mode)
Variable Refresh Rate (VRR)	Yes (in passthrough mode)
HDCP Support	Yes (HDCP2.2)
Line in Support	4-pole 3.5 mm jack x 1
Audio out	4-pole 3.5 mm jack x 1
Mic in	4-pole 3.5 mm jack x 1
Dimensions	111 x 68.5 x 20.5 mm
Cable Length (USB & HDMI)	100 cm
Power required	5V 300mA
Plug & Play	Yes, standard UVC & UVA protocol
Connection type	USB-C
Cable length	180 cm
RGB effect	10 types (long press to power on/off)
Tripod compatible	Support standard 5/8” head
System	Windows 10/8/7/Vista/XP, Mac OS, Chrome OS
	Mac OS, Chrome OS
Compatible device	Laptop, PC, gaming console as PS4/PS5/Xbox
System Requirement	Windows 10, Mac OS 10.13 or later
	Intel Core i5 CPU or similar
	NVIDIA GeForce GTX 1060 or later
	8GB RAM, built-in USB 3.0 port
