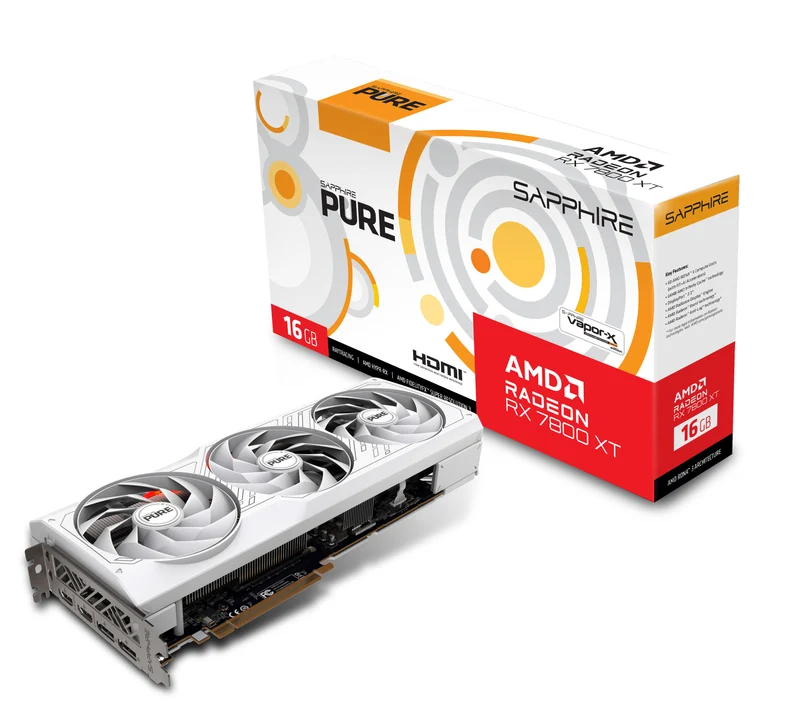

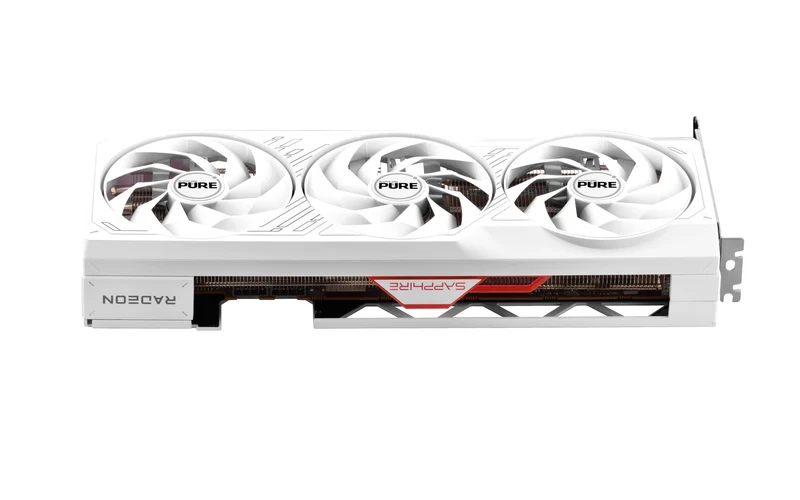

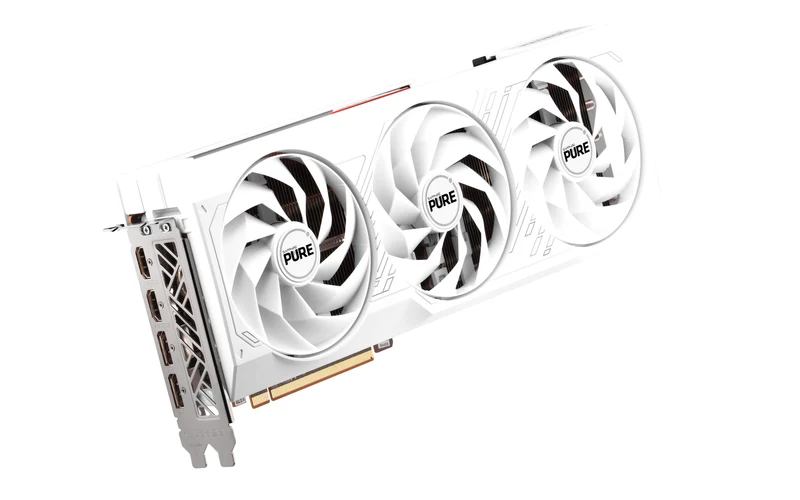

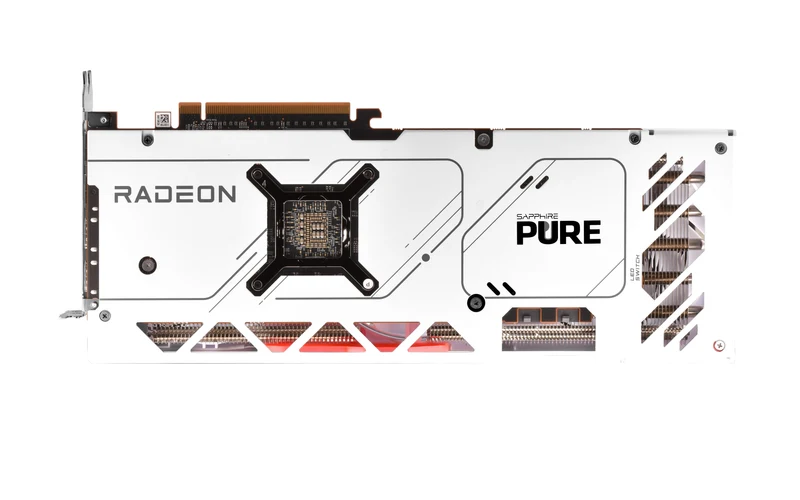

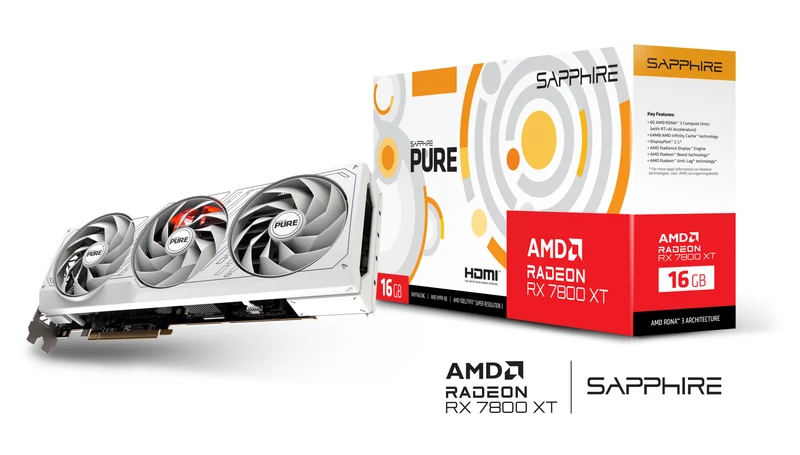

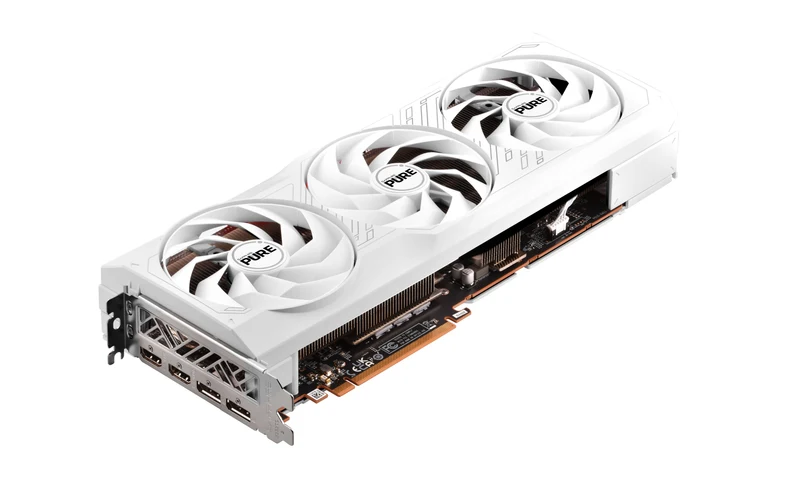

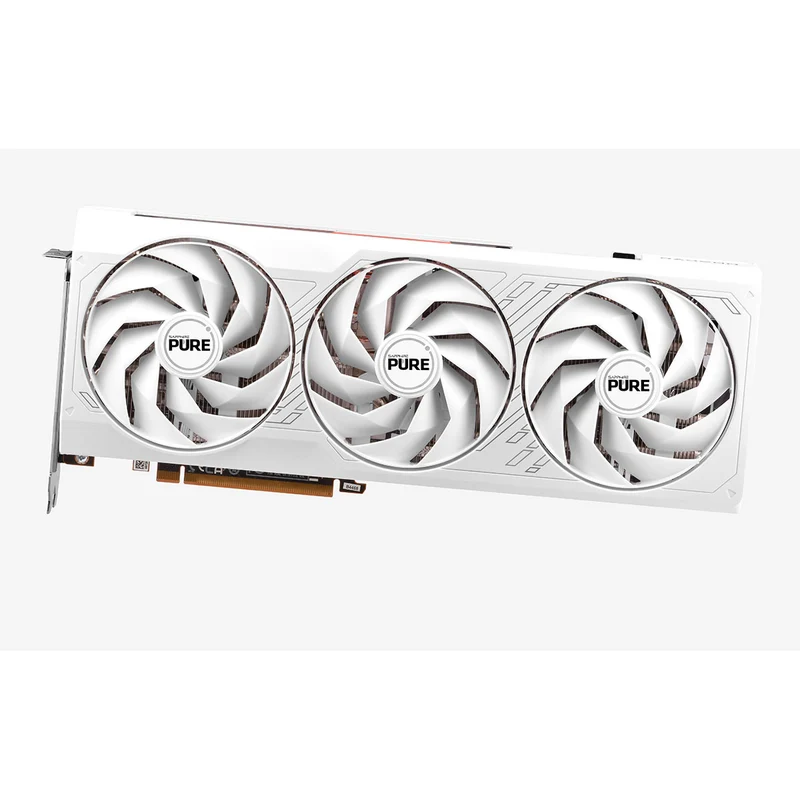

Sapphire Pure AMD Radeon RX 7800 XT Gaming OC 16GB GDDR6 Dual HDMI / Dual DP Graphics Card

SPECIFICATION

GPU

AMD Radeon™ RX 7800 XT Graphics Card
5nm GPU
AMD RDNA™ 3 Architecture

Engine Clock

• Boost Clock: Up to 2475 MHz
• Game Clock: Up to 2169 MHz

Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.

Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

Stream Processors

3840

Compute Units

60 CU (with RT+AI Accelerators)

Infinity Cache

64MB

Ray Accelerators

60

Memory Size/Bus

16GB/256 bit GDDR6

Memory Clock

19.5 Gbps Effective

Displays

Maximum 4 Displays

Resolution

• HDMI™: 7680×4320
• DisplayPort 2.1: 7680×4320

Interface

PCI-Express 4.0 x16

Output

• 2x HDMI
• 2x DisplayPort

BIOS Support

• UEFI

Game Index

4K

Sapphire Features

• Premium Digital Power Design
• Ultra High Performance Conductive Polymer Aluminum Capacitors
• Fuse Protection
• Tri-X Cooling Technology
• High TG Copper PCB
• Optimized Composite Heatpipe
• Intelligent Fan Control
• Precision Fan Control
• Metal Backplate
• Red LED SAPPHIRE Logo
• Two-Ball Bearing Fans
• Angular Velocity Fan Blade
• TriXX Supported
• TriXX Boost

Accessories Bundled

• Graphics Card Supporter

AMD Features

• AMD RDNA™ 3 Architecture
• 60 AMD RDNA™ 3 Compute Units
• 64MB AMD Infinity Cache™ Technology
• DisplayPort™ 2.1 Support
• AMD Radiance Display™ Engine
• 16GB GDDR6 on 256-Bit Memory Bus
• PCI® Express 4.0 ready
• AMD FidelityFX™ Super Resolution technology
• Microsoft® DirectX® 12 Ultimate Support
• Microsoft® DirectStorage Support
• Vulkan® Optimized
• AMD Smart Technologies
• AMD Software: Adrenalin Edition™
• AMD Noise Suppression
• AMD Privacy View
• AMD Radeon™ Super Resolution technology
• AMD Link
• AMD FreeSync™ Technology

Cooling

3 Fans

Form Factor

2.5 slot, ATX
Dimension: 320(L)X 128.75(W)X 52.57 (H)mm

Power Consumption

270W Total Board Power

OS

Linux®, Windows® 10, and Windows 11. 64-bit  operating system required
