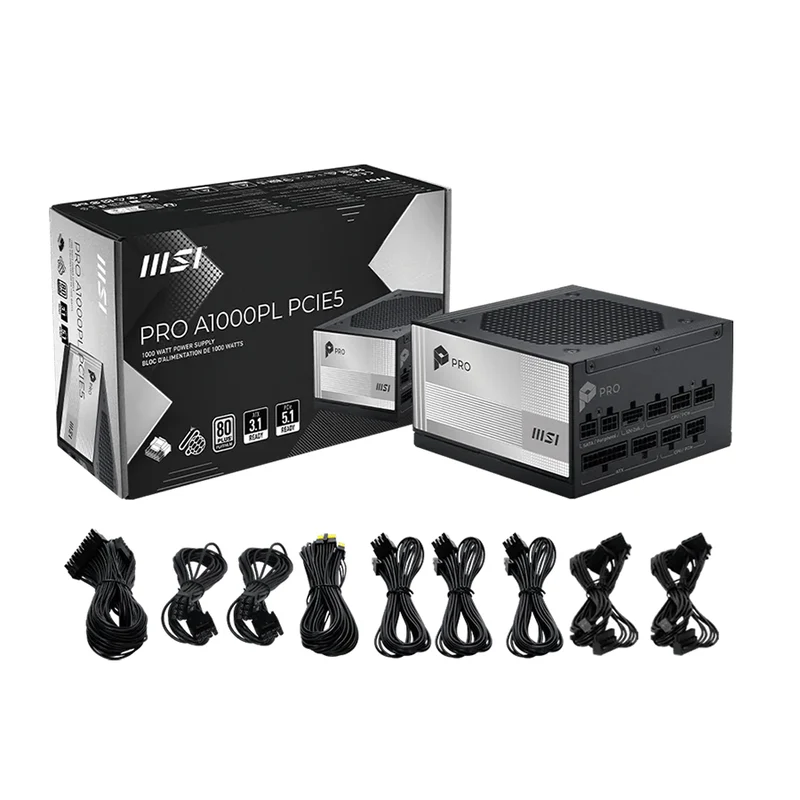

MSI Pro A1000PL 1000W PCIe5 80+ Platinum Fully Modular Power Supply

Ultimate Proof PSU

It has an output port that is compliant with Intel PSDG (Power Supply Design Guide) ATX 3.1,the power supply can hold up to 2x total power excursion and 3x GPU power excursion.

Reliable Connector Design

The power supply features the 12V-2x6 (H++) connector, design with an optimized structure that complies with the PCIe CEM 5.1standard. The ensures enhanced reliability and safety. It is capable of delivering up to 600W of power, making it suitable for even the most demanding high-end graphics cards.

Specifications:

Efficiency Rating	80 PLUS Platinum (up to 92%)
Modular	Fully Modular
Fan Size	120 mm
Fan Bearing	Hydraulic Bearing
Dimensions (DxWxH)	150 x 150 x 86 mm / 5.9 x 5.9 x 3.38 inches
PFC Type	Active PFC
Input Voltage Range	100-240V~
Power Watt	1000W
Input Frequency Range	50-60Hz
Power Excursion	200%
ATX (24 pin)	1
EPS (4+4 pin)	2
PCI-E 5.1 (16 pin)	1 (600W)
PCI-E (6+2 pin)	3
SATA (15 pin)	6
PERIPHERAL (4 pin)	2
Protection	OCP, OTP, OPP, SCP, OVP, UVP, SIP, NLO
