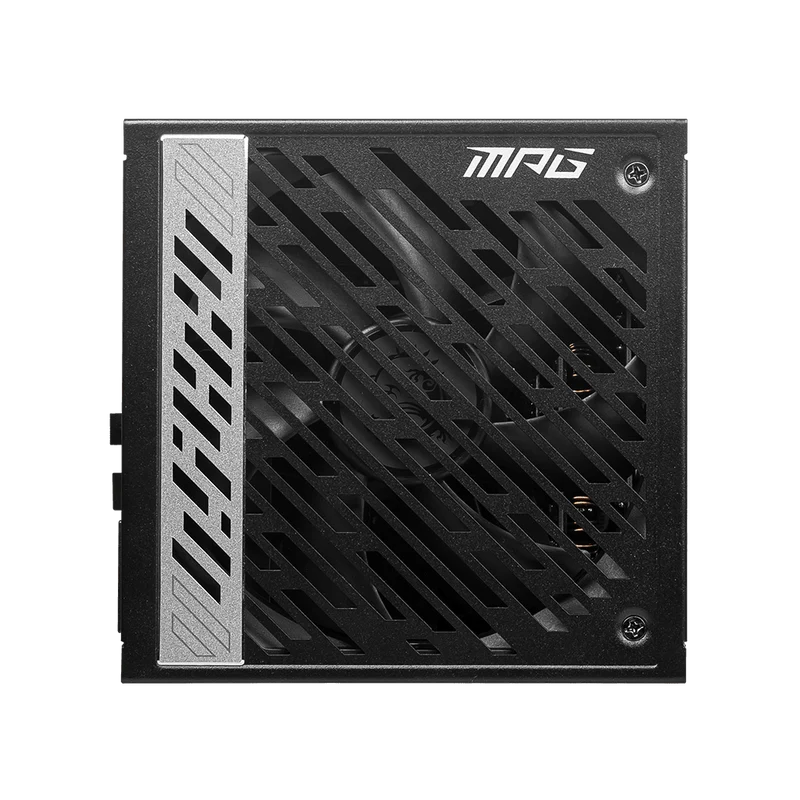

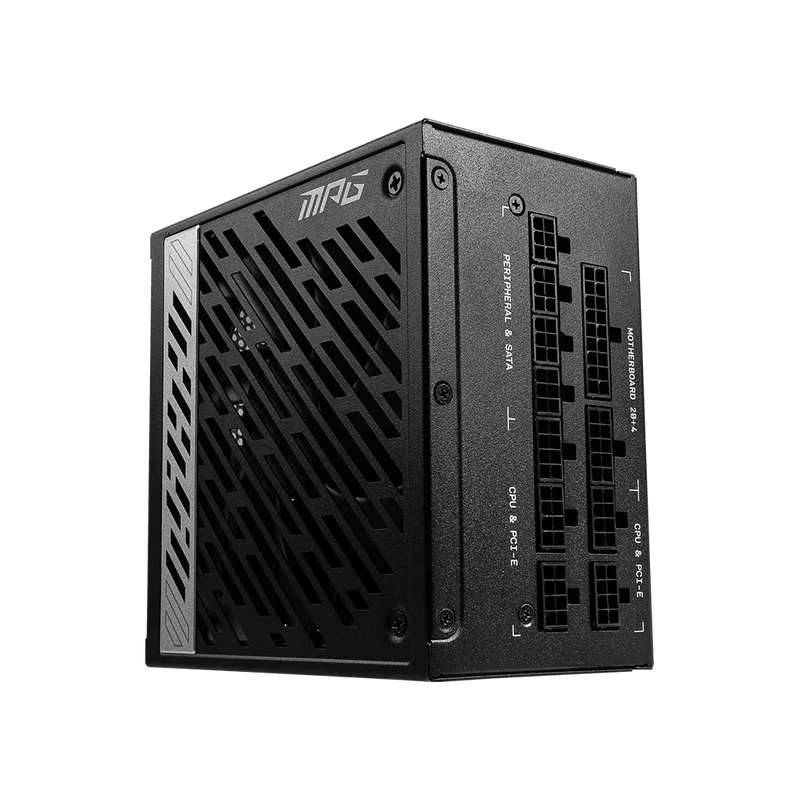

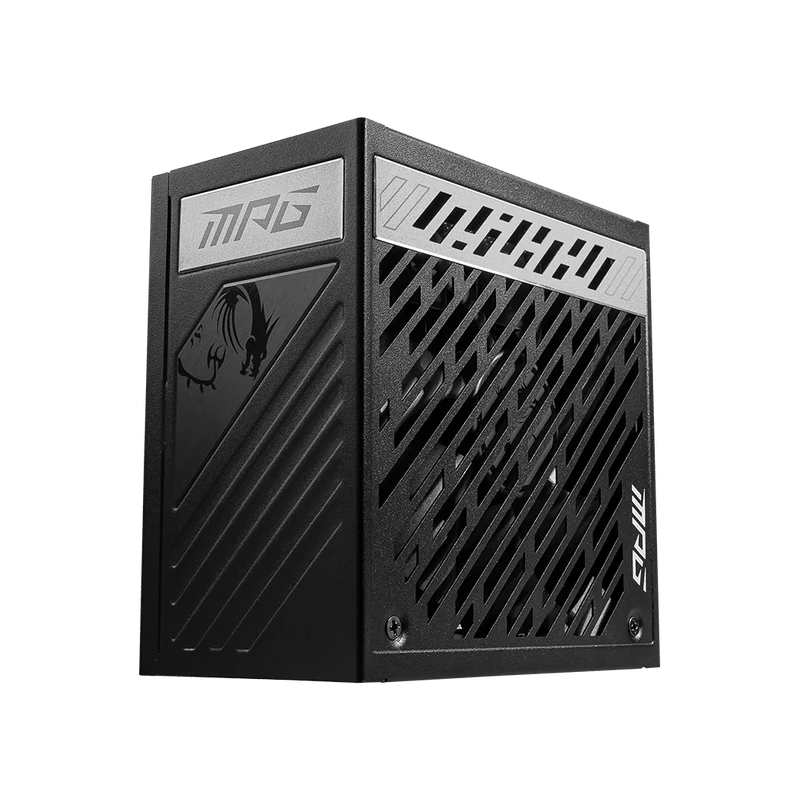

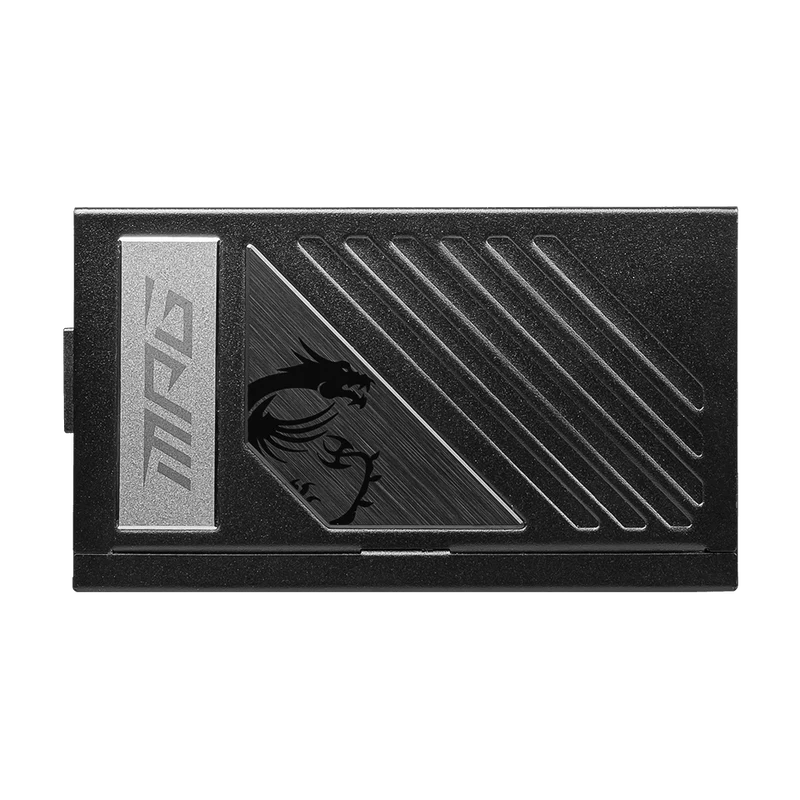

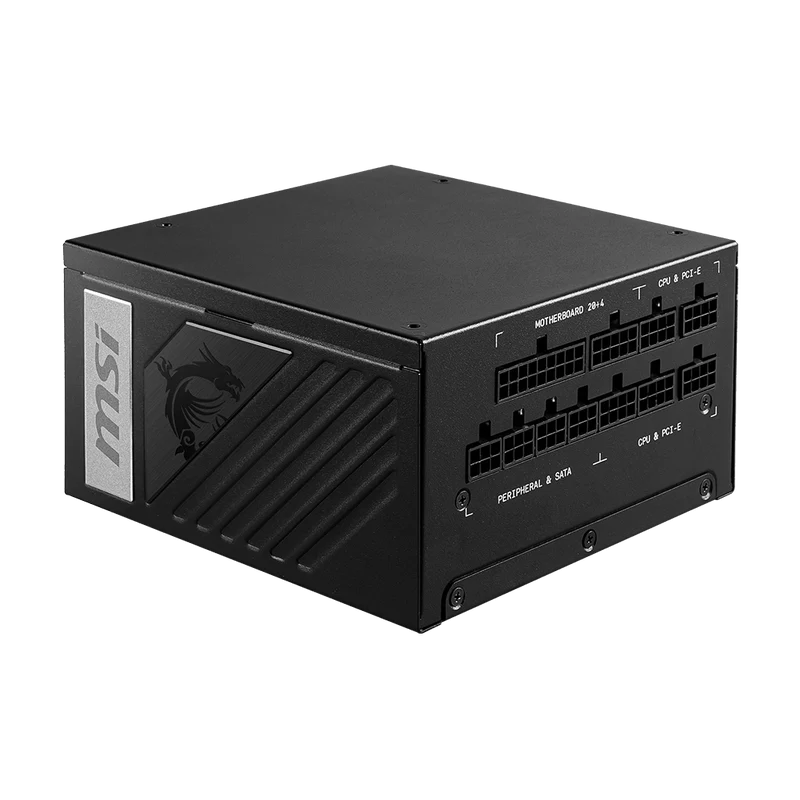

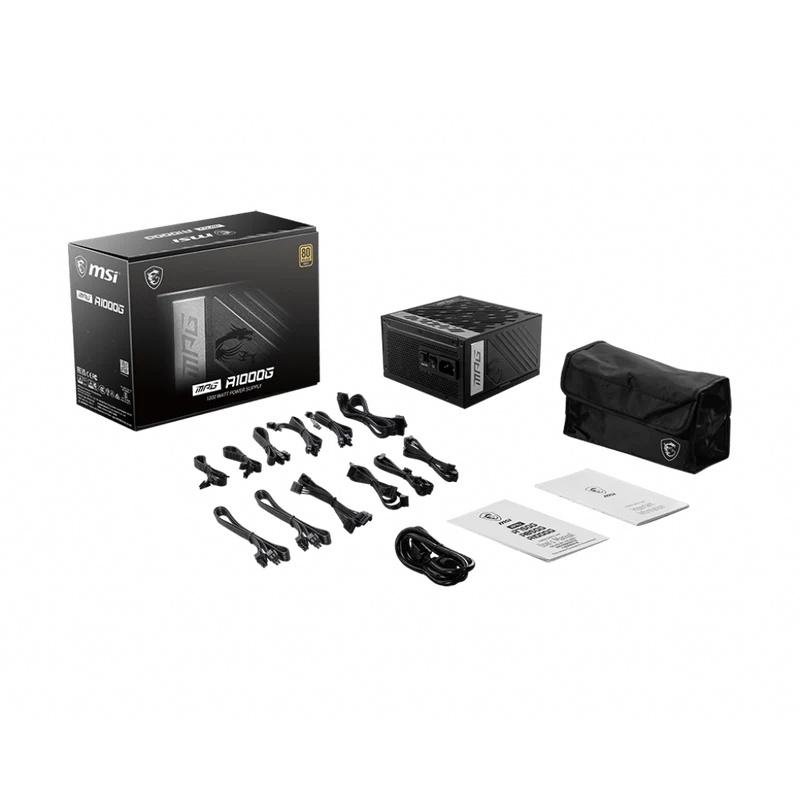

MSI MPG A1000G 1000W Gold Modular Power Supply

• Supports the NVIDIA GeForce RTX™ 30 Series GPUs
• Full modular cable design
• Flat cable equipment
• 80 Plus Gold certified for high efficiency
• 100% all Japanese 105oCcapacitor
• Active PFC design
• Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
• LLC Half Bridge Topology with DC-DC module design

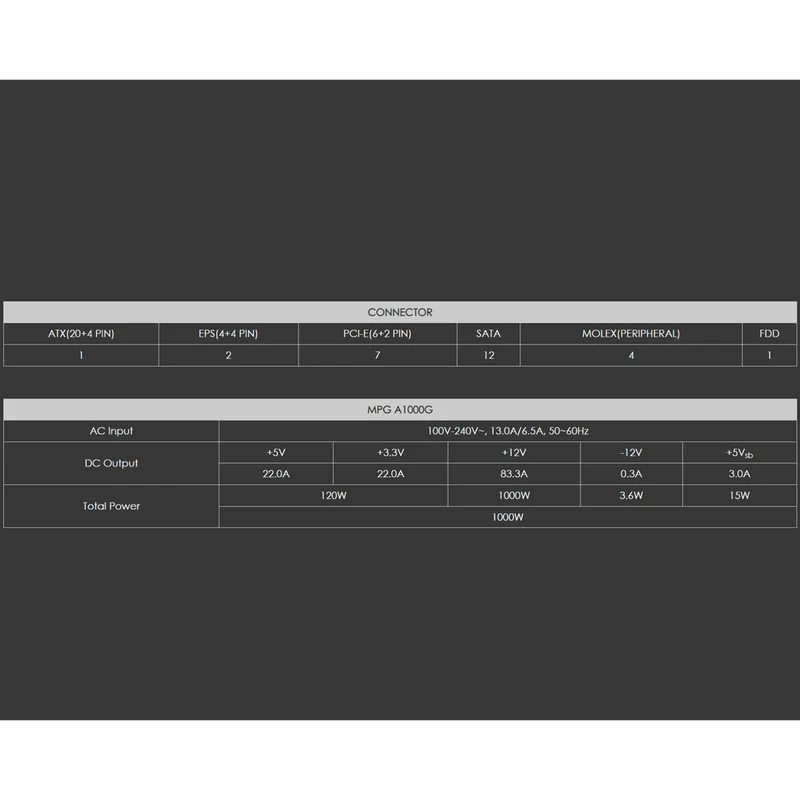

SPECIFICATIONS:

EFFICIENCY RATING	80 PLUS Gold (up to 90%)
MODULAR	Yes (fully modular)
FAN SIZE	135 mm
FAN BEARING	Fluid Dynamic Bearing
DIMENSIONS (DXWXH)	150 x 150 x 86 mm
PFC TYPE	Active PFC
POWER WATT	1000W
INPUT VOLTAGE RANGE	100~240 VAC
INPUT FREQUENCY RANGE	50~60 Hz
PROTECTION	OCP / OVP / OPP / OTP / SCP / UVP
ATX (24 PIN)	1
EPS (4+4 PIN)	2
PCI-E (6+2 PIN)	7
SATA (15 PIN)	12
MOLEX (4 PIN)	4
FDD (4 PIN)	1
