MSI MAG B550 Tomahawk Max WiFi AMD Motherboard

MAG B550 TOMAHAWK MAX WIFI

• Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processors
• Supports DDR4 Memory, up to 5100+(OC) MHz
• Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 Gen 2
• Premium Thermal Solution: Extended Heatsink Design with additional choke thermal pad rated for 7W/mk and PCB with 2oz thickened copper are built for high performance system and non-stop gaming experience.
• Enhanced Power Design: 10+2+1 Duet Rail Power System, Digital PWM, Core Boost, DDR4 Boost.
• 2.5G LAN and AMD Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection.

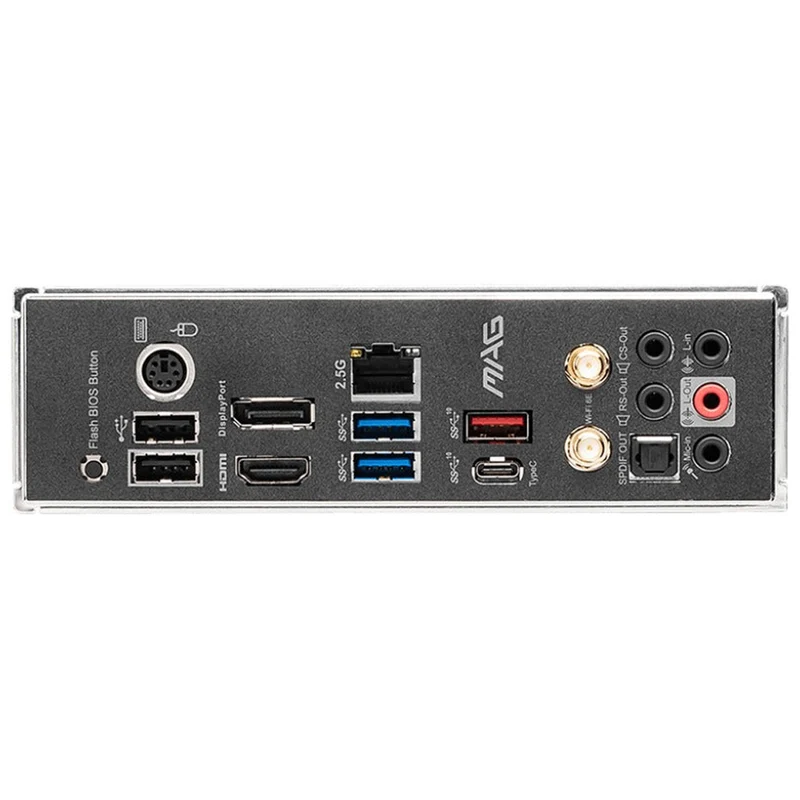

• Pre-installed I/O Shield: Better EMI protection and more convenience for installation.
• Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience.
• Multi-GPU: With Steel Armor PCI-E slots. Supports AMD Crossfire

SPECIFICATION

• SOCKET : AM4
• CHIPSET : AMD B550 Chipset
• MEMORY CHANNEL : Dual
• DIMM SLOTS : 4
• MAX MEMORY (GB) : 128
• PCI-E X16 : 2
• PCI-E X1 : 2
• SATAIII : 6
• M.2 SLOT : 2
• RAID : 0/1/10
• WIFI & BLUETOOTH : Bluetooth® 5.2
• USB 3.2 PORTS (FRONT) : 1(Gen 1, Type C), 2(Gen 1, Type A)
• USB 3.2 PORTS (REAR) : 1(Gen 2, Type C), 1(Gen 2, Type A), 2(Gen 1, Type A)
• USB 2.0 PORTS (FRONT) : 4
• USB 2.0 PORTS (REAR) : 2
• AUDIO PORTS (REAR) : 5+ Optical S/PDIF (Realtek® ALC897 Codec)
• DISPLAYPORT : 1
• HDMI : 1
• DIRECTX : 12
• CROSSFIRE : Y
• OPERATING SYSTEM : Support for Windows® 11 64-bit, Windows® 10 64-bit
• FORM FACTOR : ATX
