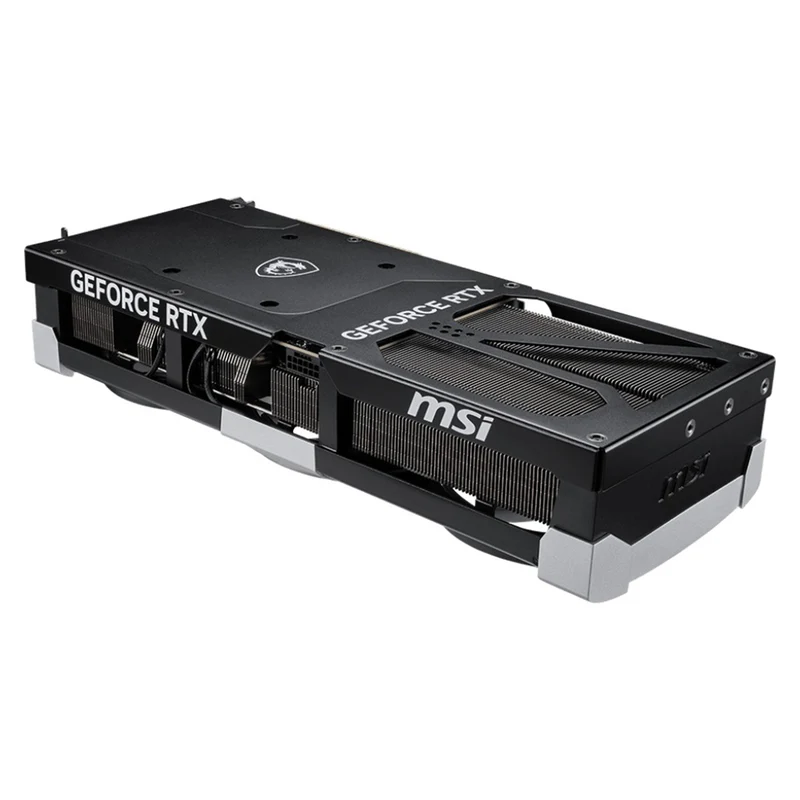

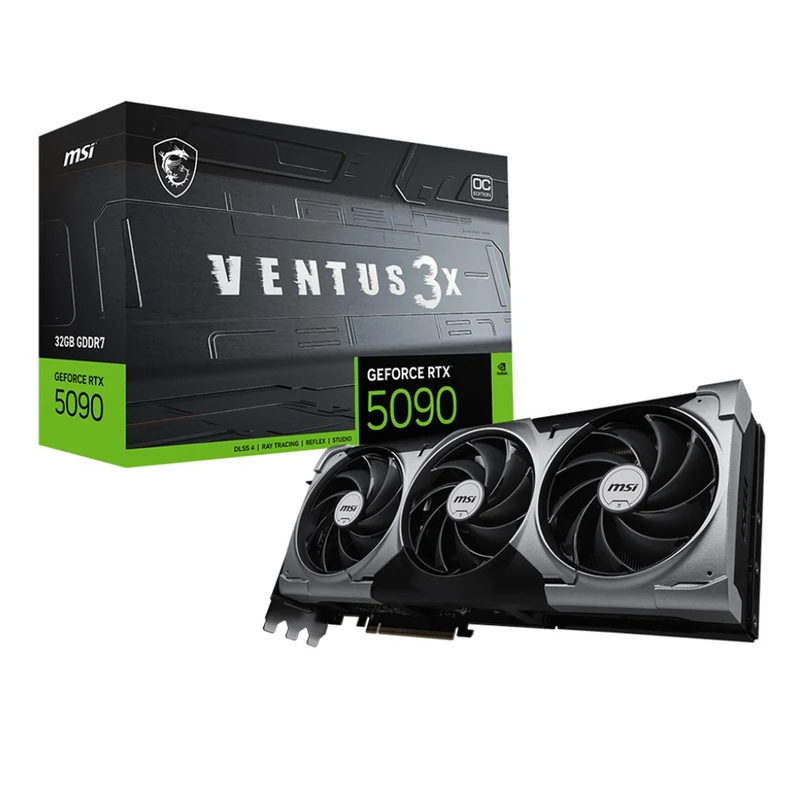

MSI GeForce RTX 5090 32GB GDDR7 Ventus 3X OC Graphics Card

GeForce RTX™ 5090 32G VENTUS 3X OC

• Powered by the NVIDIA Blackwell architecture and DLSS 4
• Core Clocks:
  Extreme Performance: 2452 MHz (MSI Center)
  Boost: 2437 MHz

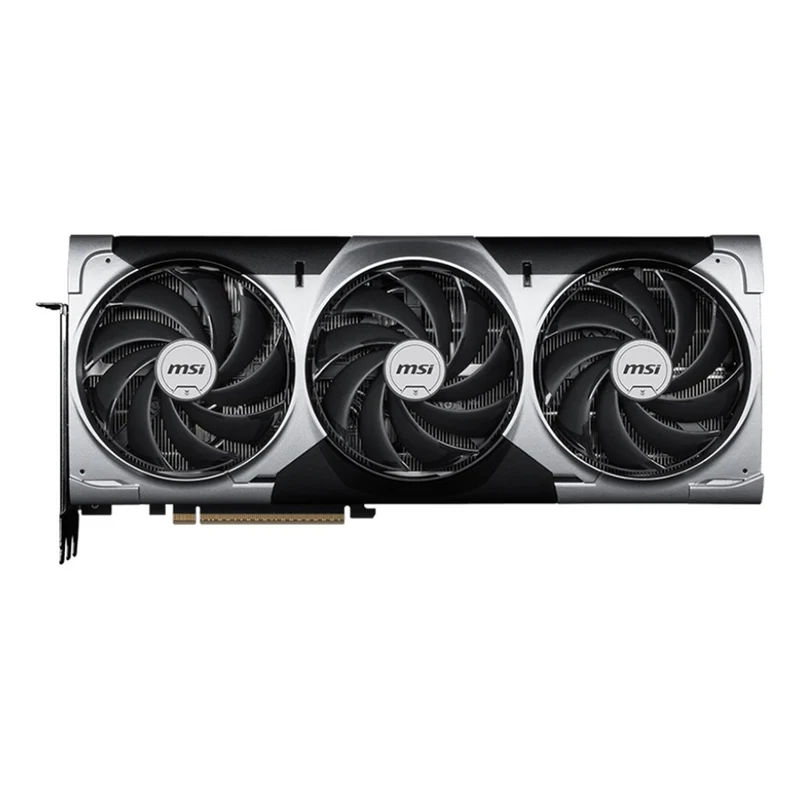

• TORX Fan 5.0: Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow.
• Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred.
• Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management.

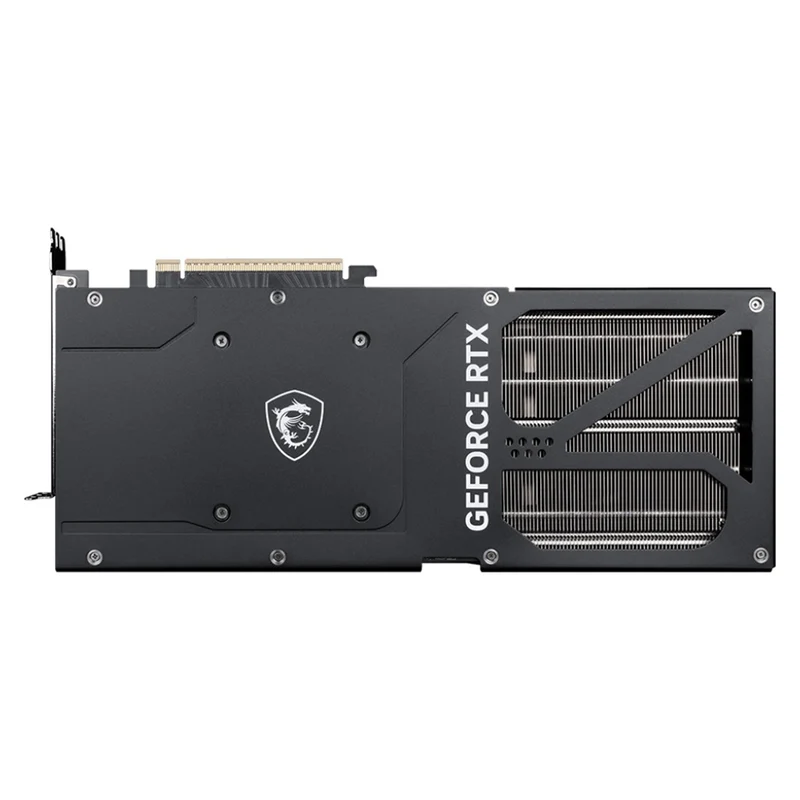

• Metal Backplate: A sturdy metal backplate strengthens the graphics card while the airflow vent design reduces excess heat.
• MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
• Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.

Specifications:

Marketing Name	GeForce RTX™ 5090 32G VENTUS 3X OC
Model Name	G5090-32V3C
Graphics Processing Unit	NVIDIA® GeForce RTX™ 5090
Interface	PCI Express® Gen 5
Core Clocks	Extreme Performance: 2452 MHz (MSI Center) Boost: 2437 MHz
CUDA® CORES	21760 Units
Memory Speed	28 Gbps
Memory	32GB GDDR7
Memory Bus	512-bit

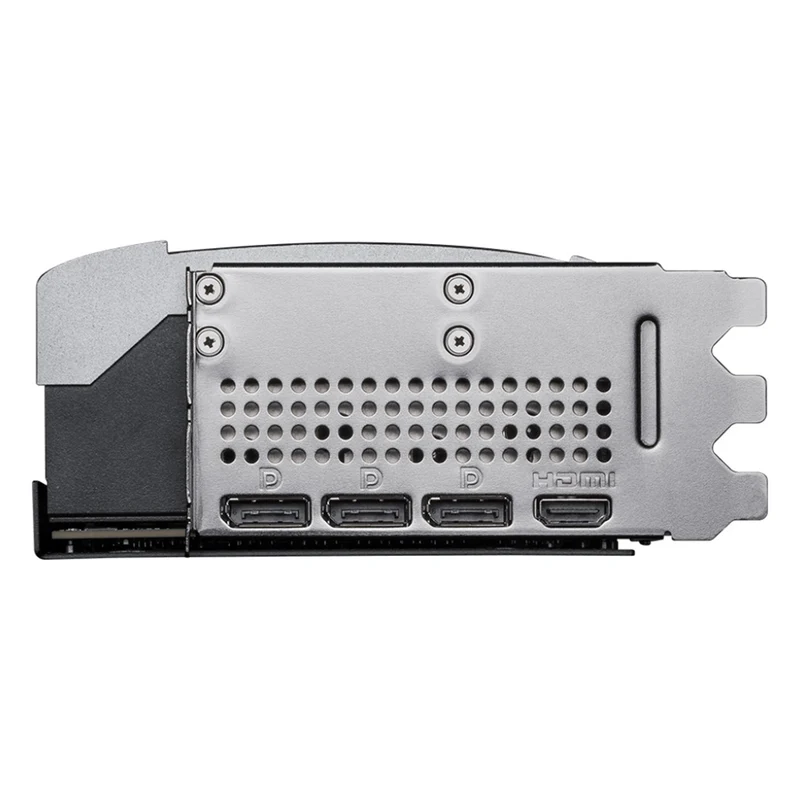

Output	DisplayPort x 3 (v2.1b) HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
HDCP Support	Y
Power consumption	575 W

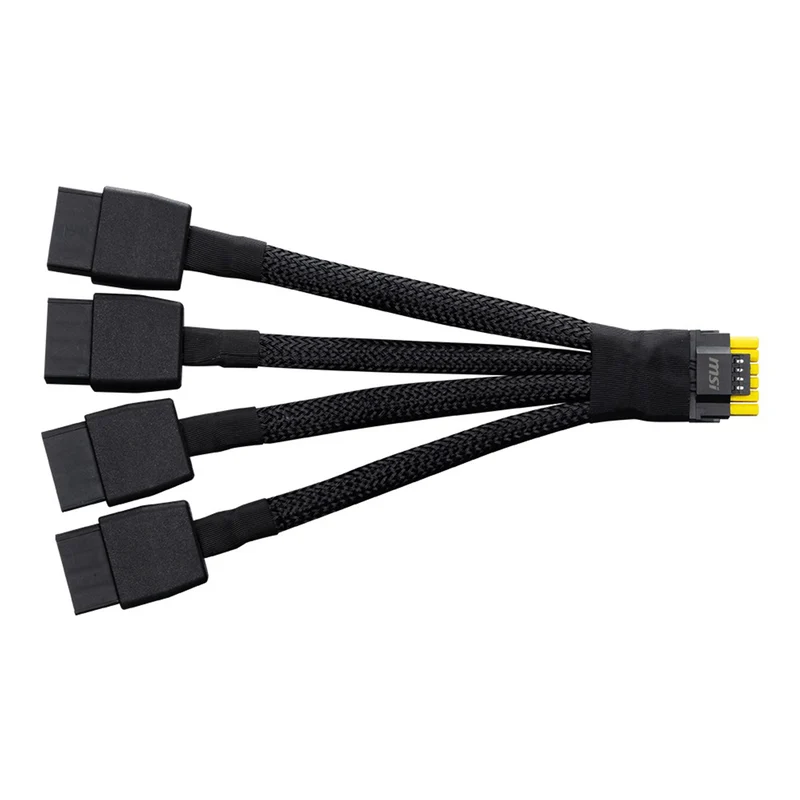

Power connectors	16-pin x 1
Recommended PSU	1000 W
Card Dimension (mm)	325 x 139 x 67 mm
Weight (Card / Package)	1875 g / 2489 g
DirectX Version Support	12 Ultimate
OpenGL Version Support	4.6
Maximum Displays	4
G-SYNC® technology	Y
Digital Maximum Resolution	7680 x 4320
