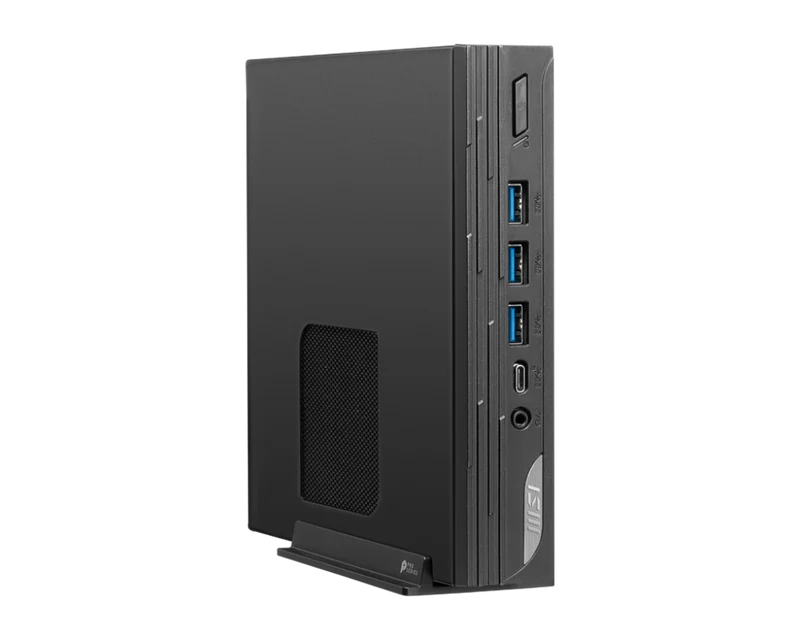

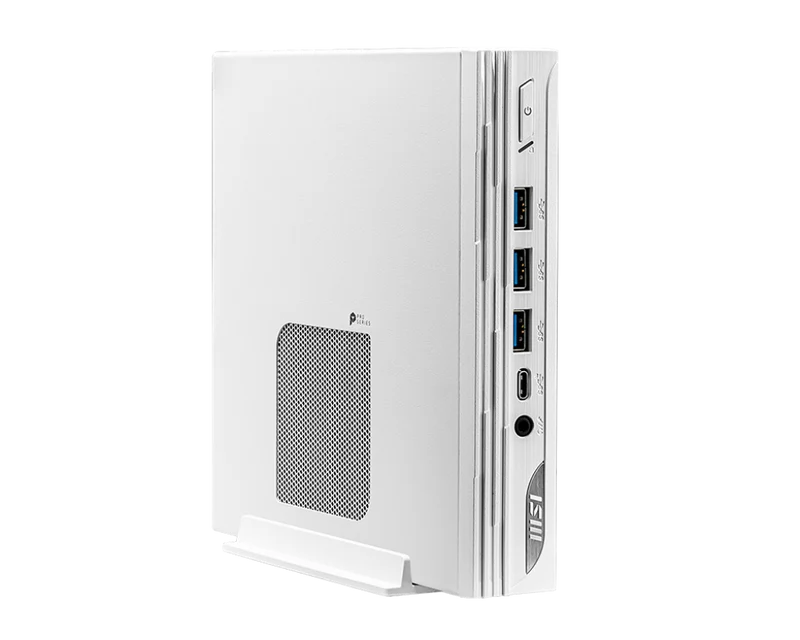

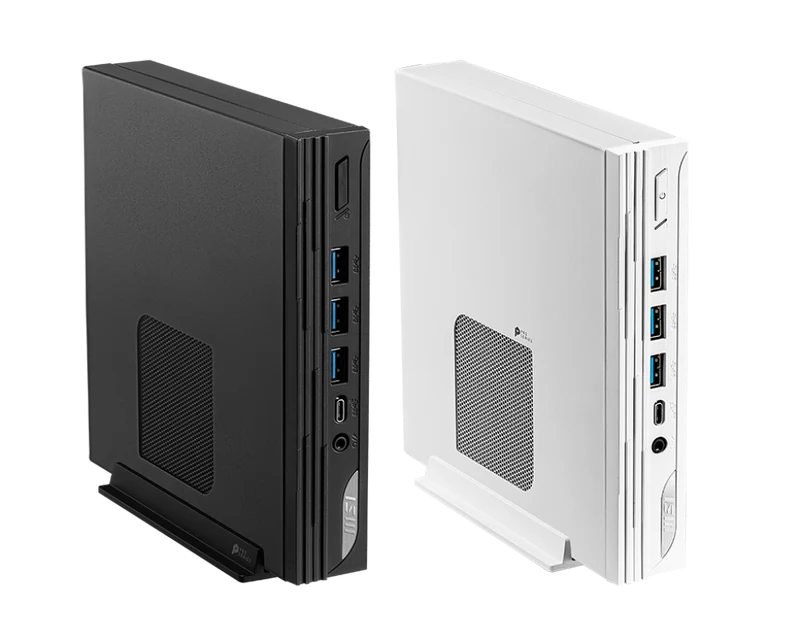

MSI CB PRO DP10 13M-001EU | MSI Pro Desktop PC

PRO DP10 13M

• Windows 11 Pro
• Intel® Core™ i7-1360P Prozessor
• 1,1 Liter mit 185,5 mm Höhe

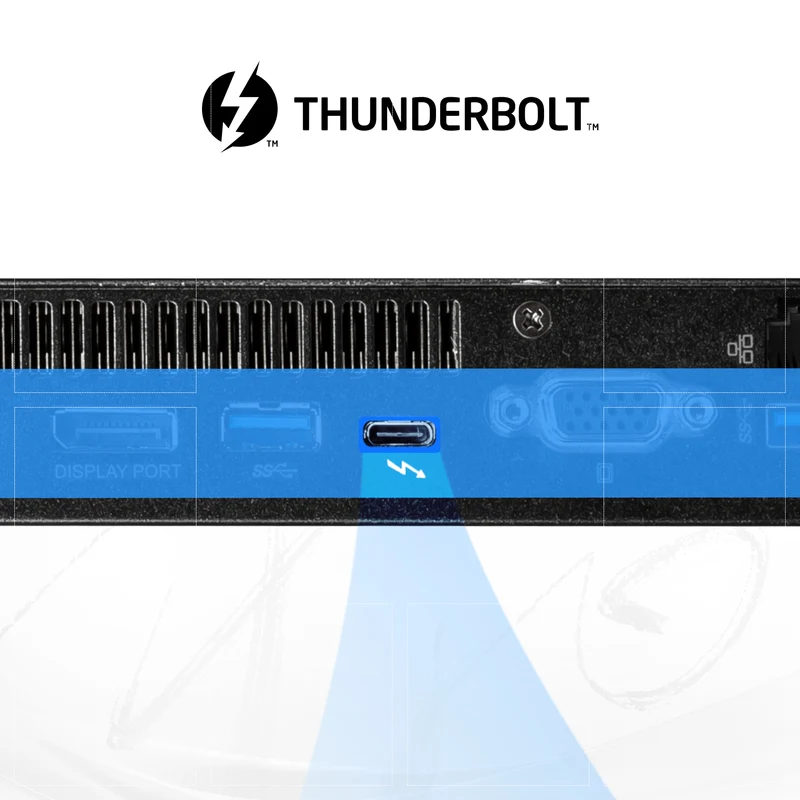

• Thunderbolt 4, liefert die Lösung zum Anschließen von Displays, Festplatten oder anderen Geräten.
• Unterstützt Displays mit bis zu 8K Auflösung via Thunderbolt

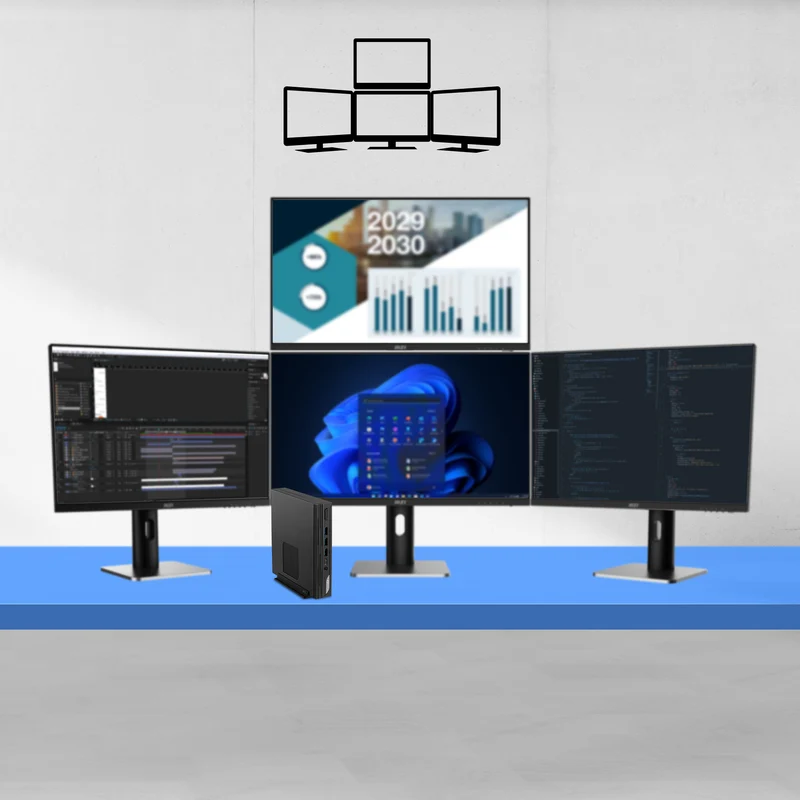

• Unterstützt maximal 4 Monitore

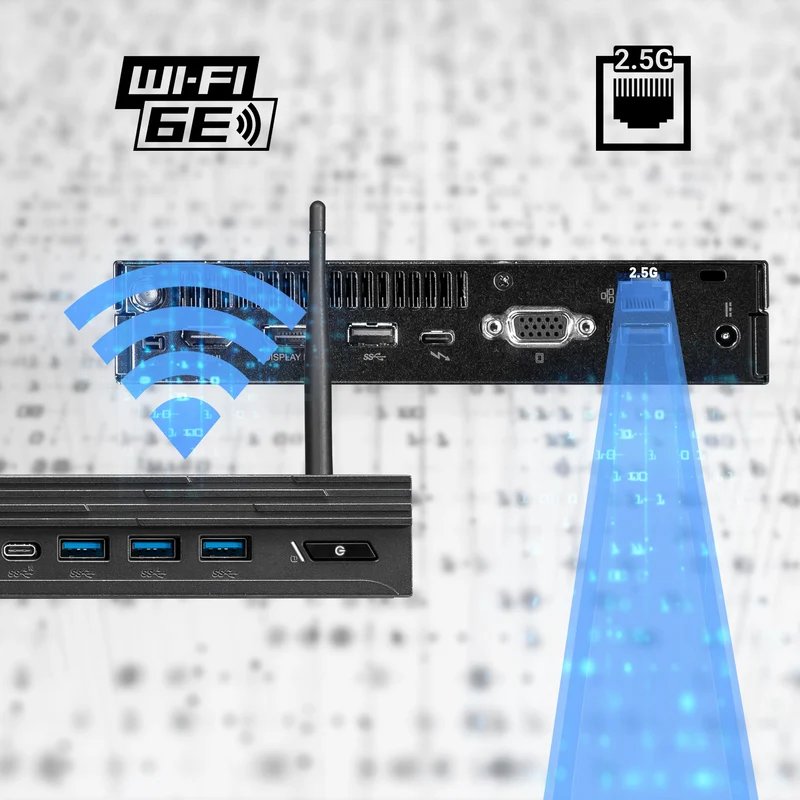

• Wi-Fi 6E (Optional) ermöglicht sichere Verbindungen mit bis zu 2,4 Gbit/s
• Schnelles und Störungsfreie Datenübertragung via 2,5 Gbit/s Ethernet Anschluss

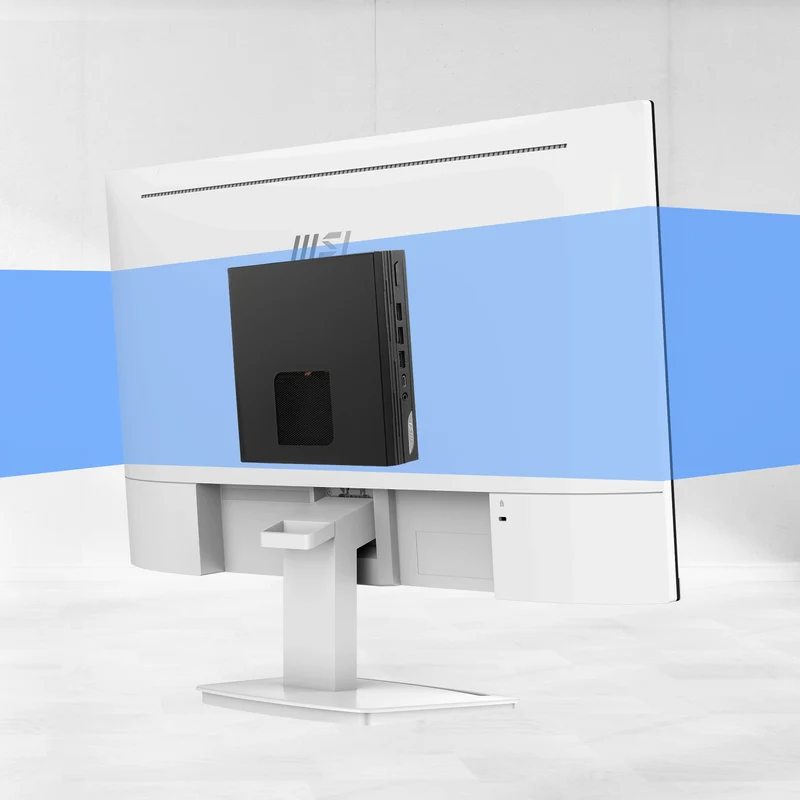

• Unterstützt VESA-Mounts

Download Datenblatt,

Operating Systems	Windows 11 Pro
CPU Number	Intel Core i7-1360P
CPU Clock	2.2GHz
MKT Name	PRO DP10 13M
CPU Cores	12
MKT Spec	PRO DP10 13M-001EU
TDP	28W
Color	ID1/Black-Black-Black
Cache	18 MB Intel® Smart Cache
SKU Number	9S6-B0A611-001
Threads	16
Chipsets	Soc
Memory Size	16GB(8GB*2)
Max Turbo Frequency	up to 5.00 GHz
Memory Type	DDR4 SDRAM
CPU Cooler	Air cooling
Memory Speed	1600(3200)MHz
Module Type	SO-DIMM
Memory Slot(Total)	2
Memory Slot(Free)	0
Max Capacity	Max 64GB
Arbeitsspeicher	Memory Size 16GB(8GB*2) Memory Type DDR4 SDRAM Module Type SO-DIMM Memory Slot(Total) 2 Memory Slot(Free) 0 Max Capacity Max 64GB
SSD Interface	PCIe GEN3x4

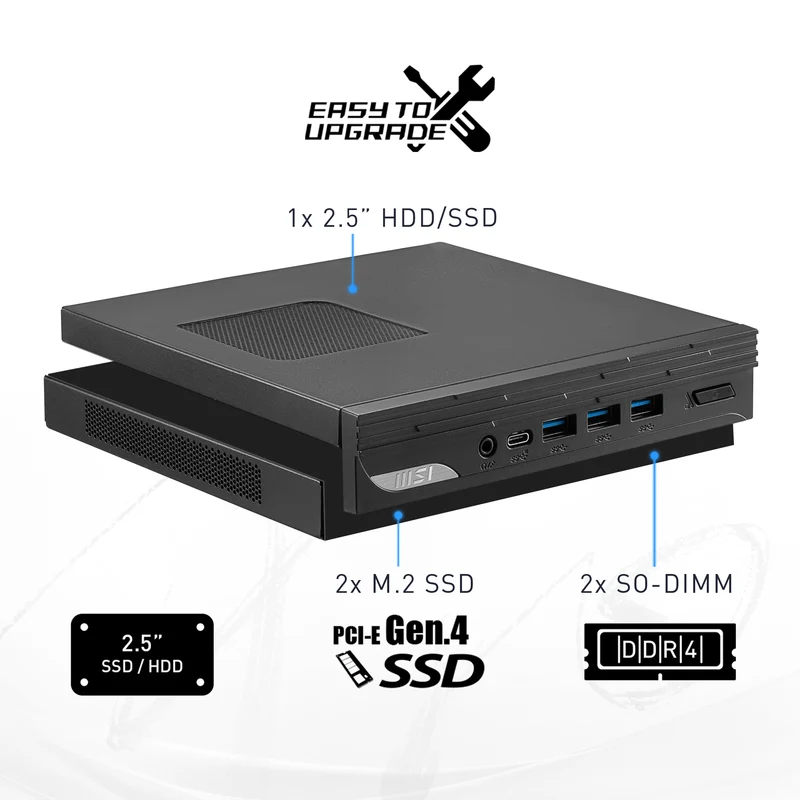

Speicher	SSD Form Factor M.2-2280 M-KEY(1TB*1) SSD Size 1TB M.2 slots(Total) 2 M.2 slots(Free) 1 2.5" Drive Bays(Total) 1 2.5" Drive Bays (Free) 1 3.5" Drive Bays(Free) 0
Audio Chipset	Realtek ALC256
Audio Type	2.1 Channel HD Audio
SSD Form Factor	M.2-2280 M-KEY
SSD Config	1TB*1
SSD Size	1TB
Audio	Realtek ALC256, 2.1 Channel HD Audio
WLAN Version	Wi-Fi 6E+BT
BT Version	5.3
WLAN	INTEL/AX211.NGWG.NV

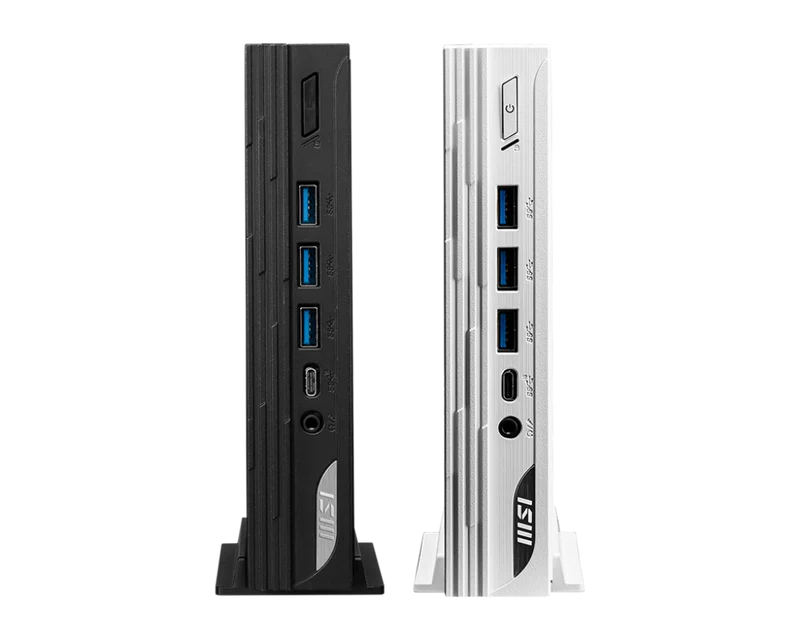

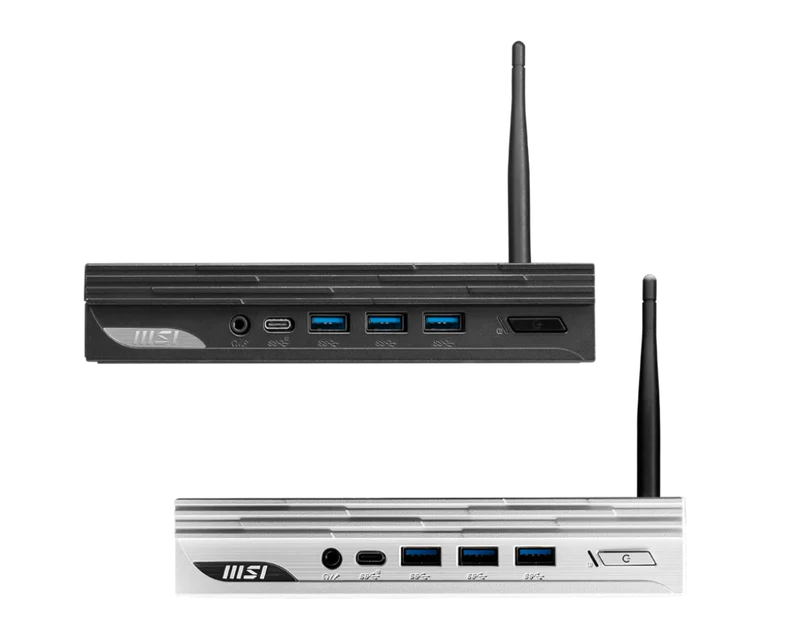

Schnittstellen (Vorne)	3 x USB 3.2 Gen 1 Type A 1 x USB 3.2 Gen 2 Type C
M.2 slots(Total)	2
M.2 slots(Free)	1
2.5" Drive Bays(Total)	1
2.5" Drive Bays (Free)	1
3.5" Drive Bays(Free)	0
LAN	Realtek RTL 8125B
Mic-in/Headphone-out combo	1

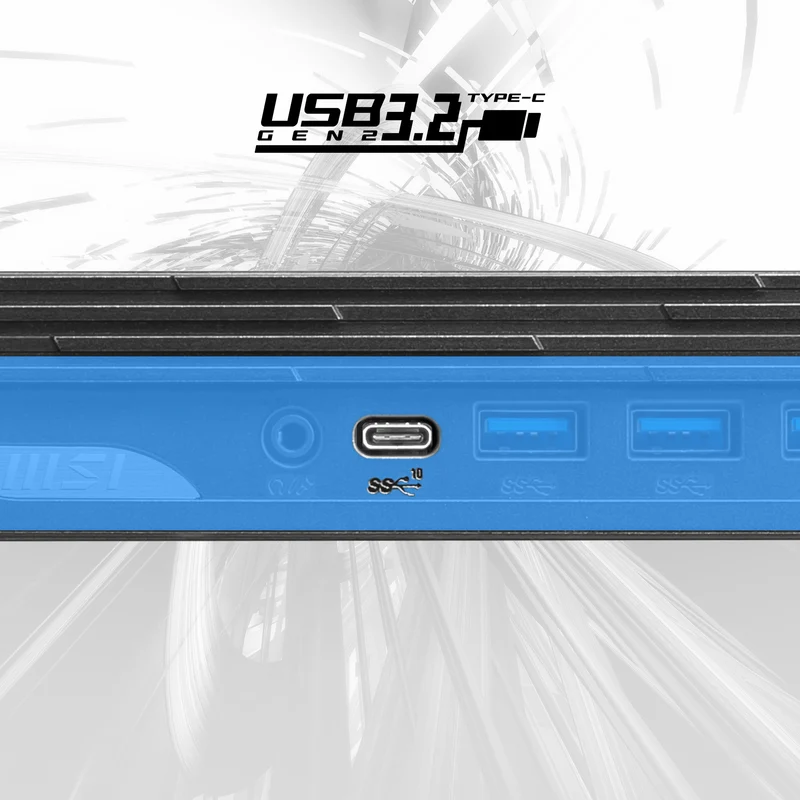

USB 3.2 Gen 2 Type C	1
USB 3.2 Gen 1 Type A	3
Schnittstellen (Rückseite)	2 x USB 3.2 Gen 1 Type A (R)
Thunderbolt (R)	1x (Thunderbolt 4)
RJ45	1
WiFi Antenna	1
VGA out	1
USB 3.2 Gen 2 (10G) Type C	1
HDMI out	1x (v2.0)
DP out	1x (v1.4)
USB 3.2 Gen 1 (5G) Type A	3
USB 3.2 Gen 1 Type A (R)	2
Power	120W, ADAPTOR
USB 3.2 Gen 1 (5G) Type A (R)	2
VESA size	75 x 75 mm
Warranty	36months

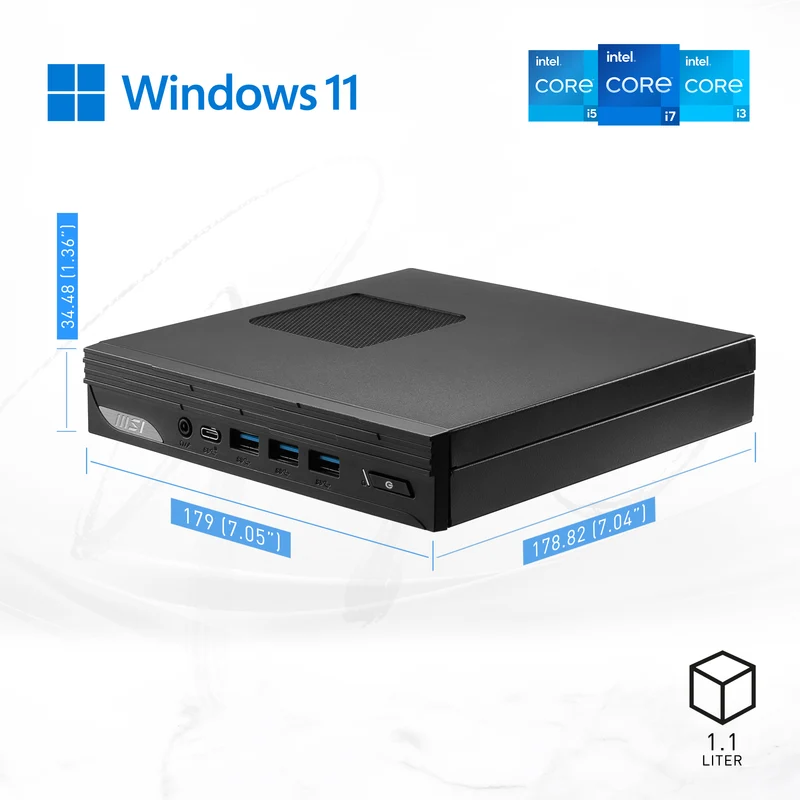

Product Dimension (WxDxH) (mm)	178.82 x 34.48 x 179
Product Dimension (WxDxH) (inch)	7.04 x 1.36 x 7.05
Inside Carton Dimension (WxDxH) (mm)	249 x 102 x 301
Inside Carton Dimension (WxDxH) (inch)	9.8 x 4.02 x 11.85
Outer Carton Dimension Standard (WxDxH) (mm)	530 x 320 x 530
Outer Carton Dimension Standard (WxDxH) (inch)	20.87 x 12.6 x 20.87
Weight (Net kg)	1.1
Net Weight (lbs)	2.43
Weight (Gross kg)	2.1
Gross Weight (lbs)	4.63
Liter	1.1
Pint	2.32
Regulatory Compliance	FCC(Class B), CB/CE, UL(CUL), BSMI, VCCI, RCM(C-Tick)
AC Adaptor	1
Power Cord	1
Quick Guide	2
Operating, Storage Temperature	0° C ~ 35° C ; -20° C ~ 60° C
Operating, Storage Humidity	0% ~ 85%;0% ~ 90%
Power Switch	1
EAN	4711377035330
Part No	9S6-B0A611-001
Model	B0A6
Entity MKT Name	N/A
