Moza R5 Pro Truck Driving Simulator (RS112)

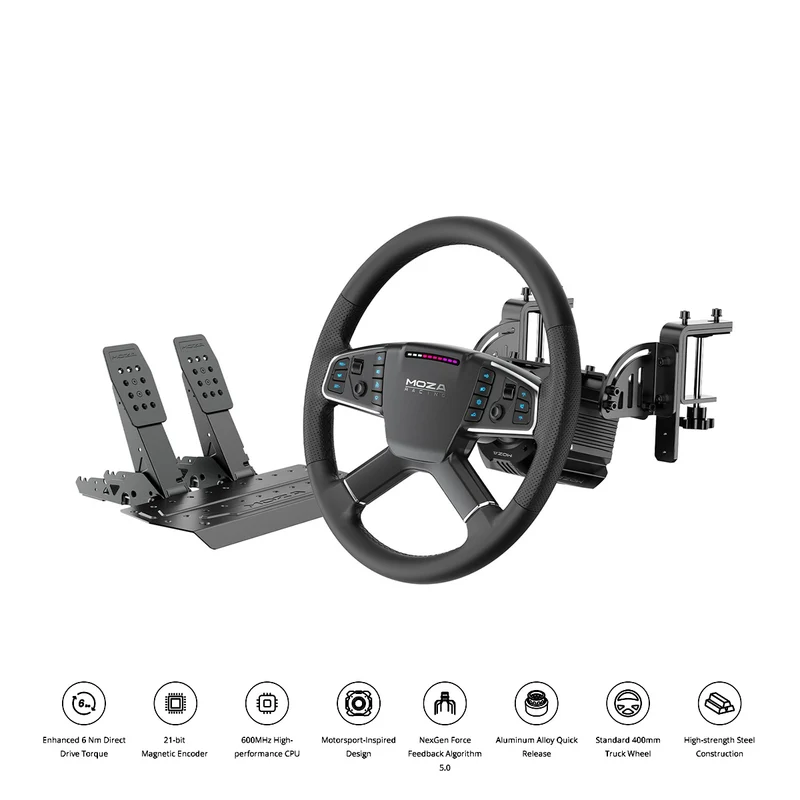

MOZA R5 Pro Truck Driving Simulator

Designed for truck simulation, the MOZA R5 Pro Truck Bundle pairs a 6 Nm R5 Pro direct-drive wheelbase with a large 400 mm TSW Truck Wheel and SR-P Lite2 pedals. Its 21-bit encoder and NexGen Force Feedback 5.0 deliver detailed, consistent steering feedback for truck, farming, and utility-vehicle simulation.

Specification:

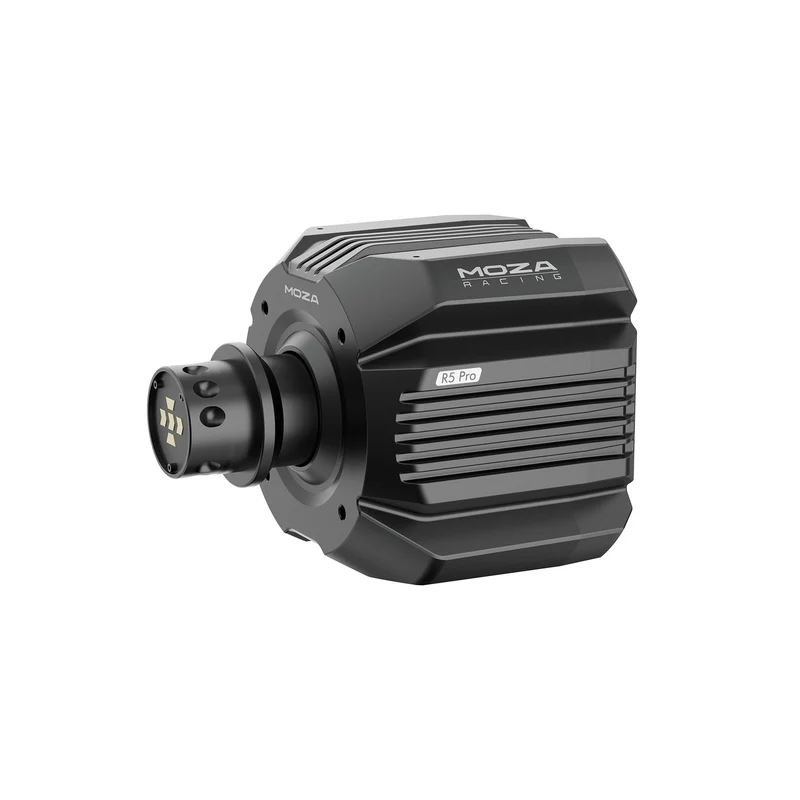

R5 Pro Wheelbase Specs

FFB Drive System	Direct Drive
Max Steering Angle	90~2700°
Housing Material	Aluminum alloy
Color	Black
Peak Torque	6Nm
Peak Power	100W
Input Voltage	110V~220V AC → 12V DC
Weight	2.9kg
Encoder Resolution	21bit
USB Refresh Rate	1000Hz
App Functions	Supported
Quick Release	Supported
Connection Ports	Power, USB, Pedal, Dash, Shifter, Handbrake, E-stop
Accessories	User manual, power adapter, cable, tool kit
Mounting Options	Bottom, front, and desktop mounting
Desk Clamp	Included
Online Firmware Update	Supported

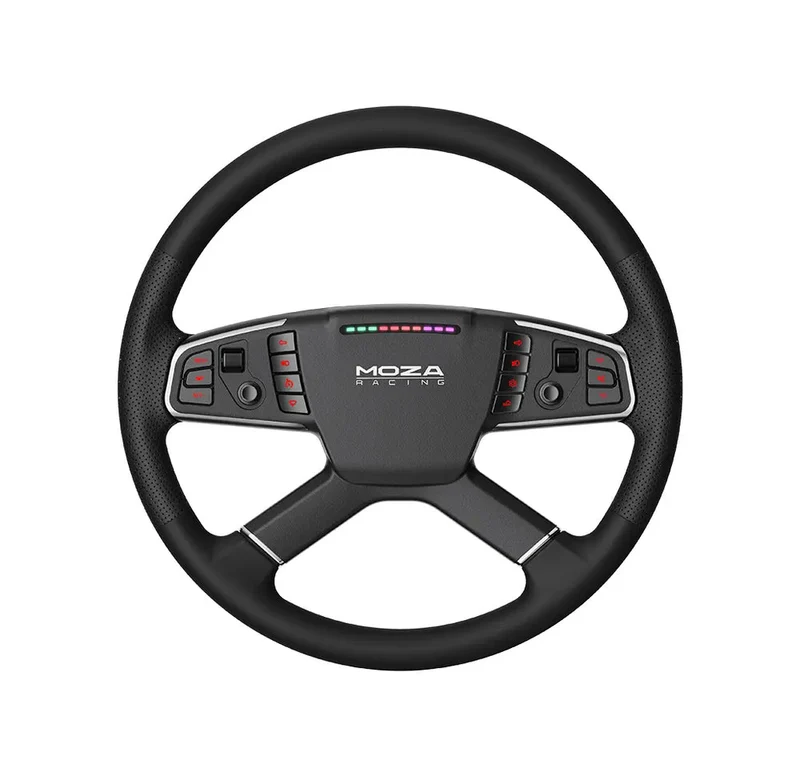

TSW Truck Wheel Specs

Grip Material	Microfiber leather
Wheel Rim Material	Aerospace-grade aluminum
Shift Paddles Material	Aluminum alloy
Size	400mm
Buttons	14
Rev Lights	10 bright RGB LEDs
Intelligent Telemetry	Supported
Fully Adjustable RPM LEDs through MOZA Pit House	Supported
Release Method	All-aluminum quick release

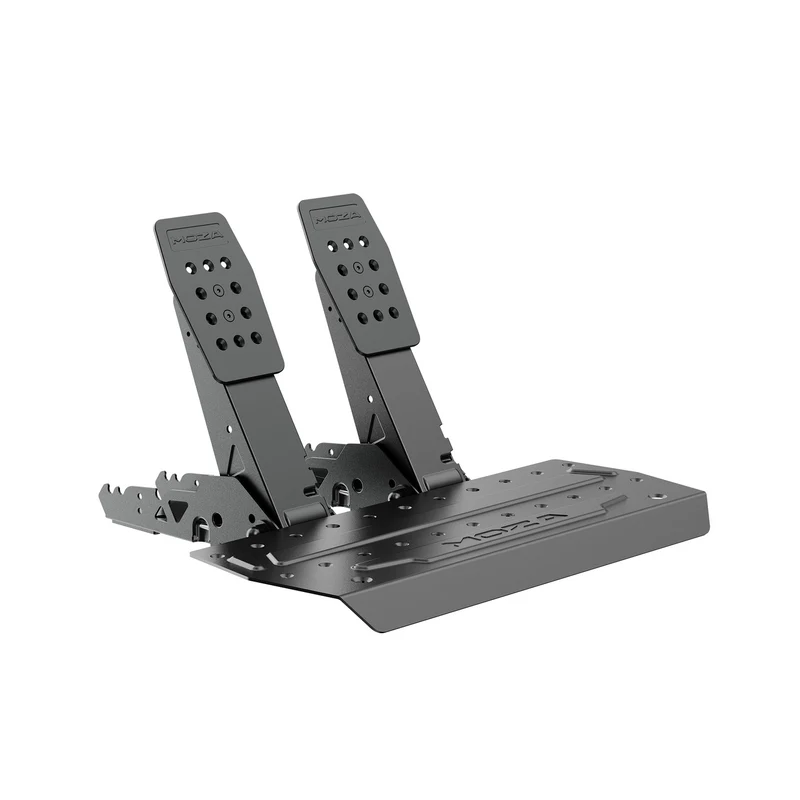

MOZA SRP Lite2 Pedals Specs

Pedal Face Material	High-strength Steel
Pedal Base Material	High-strength Steel
Sensor	Contactless Hall Sensor
Pedal Left/Right Adjustment Range	15mm
Pedal Height Adjustment Range	36mm
Pedal Curve Adjustment	Supported
Real-time Pedal Output Display	Supported

Note: The bundle includes throttle and brake pedals. A clutch pedal can be purchased separately.
