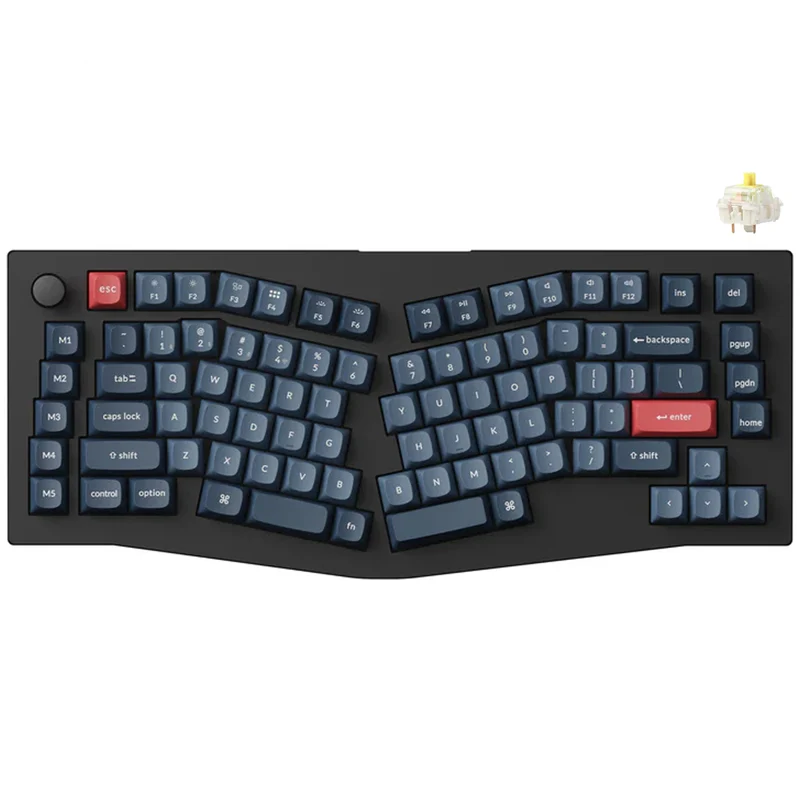

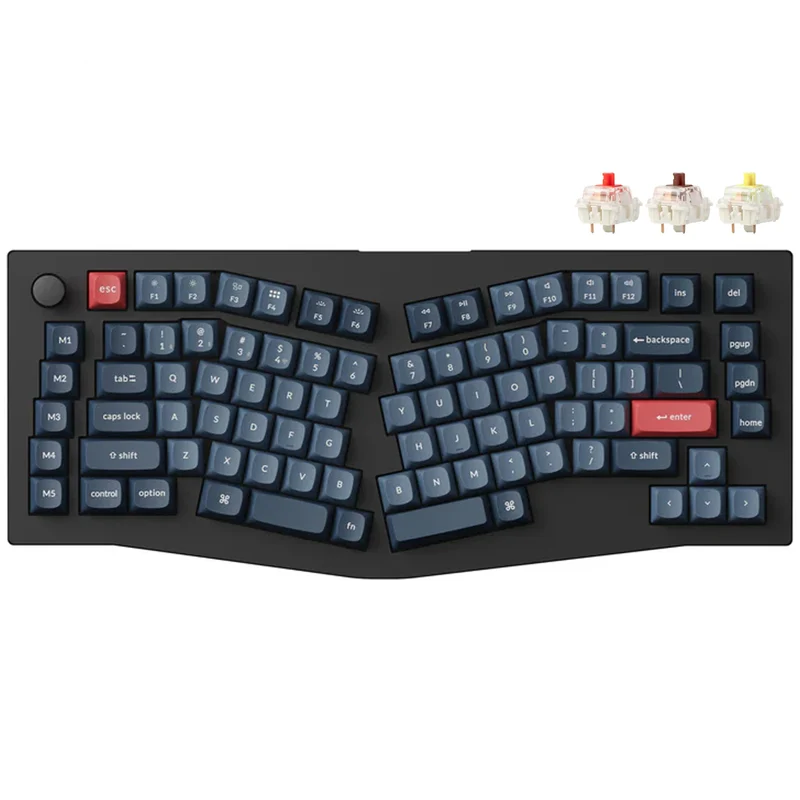

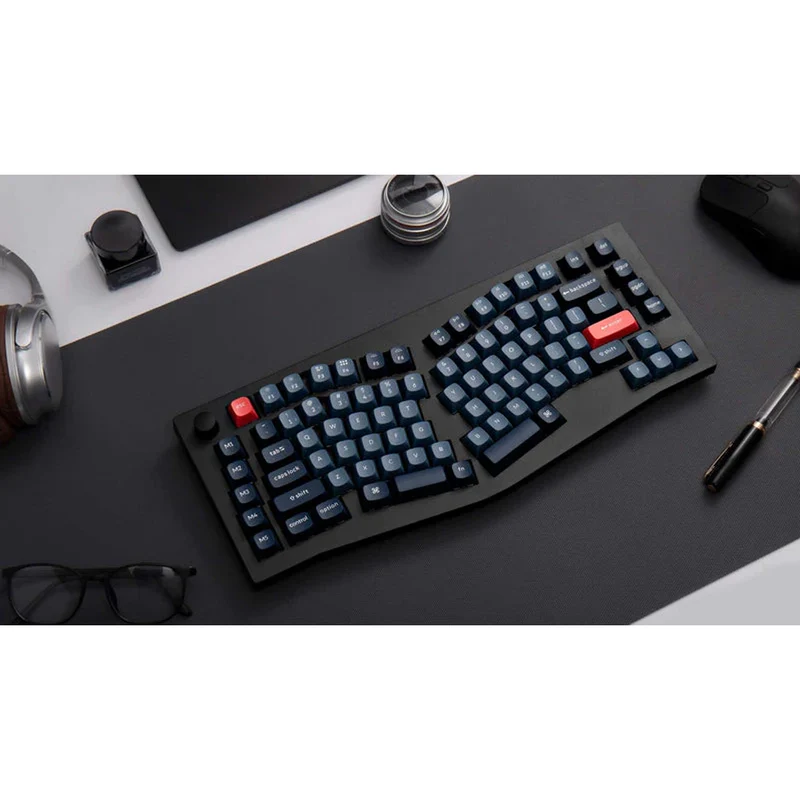

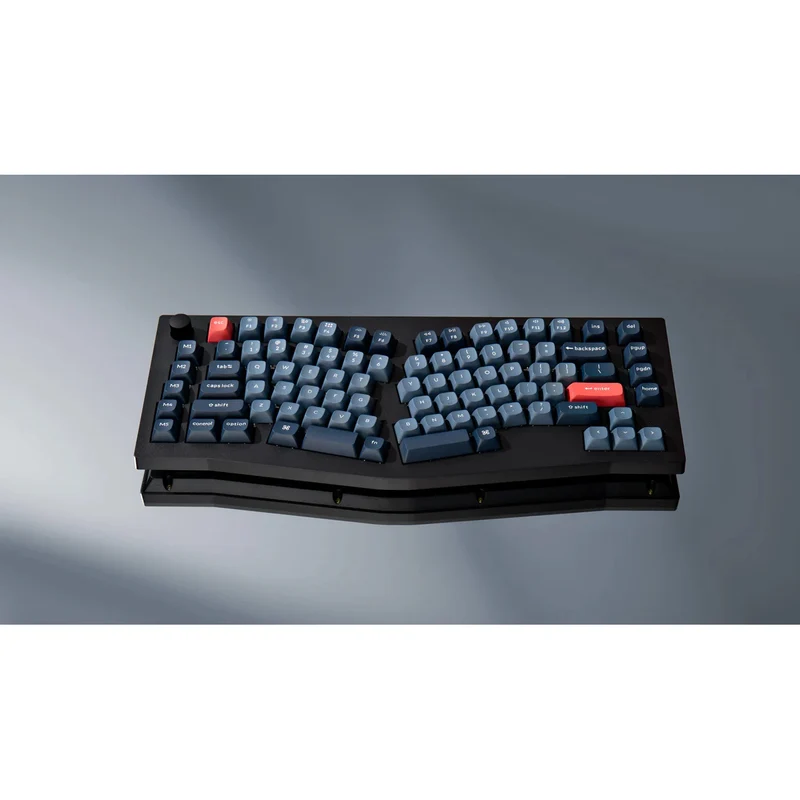

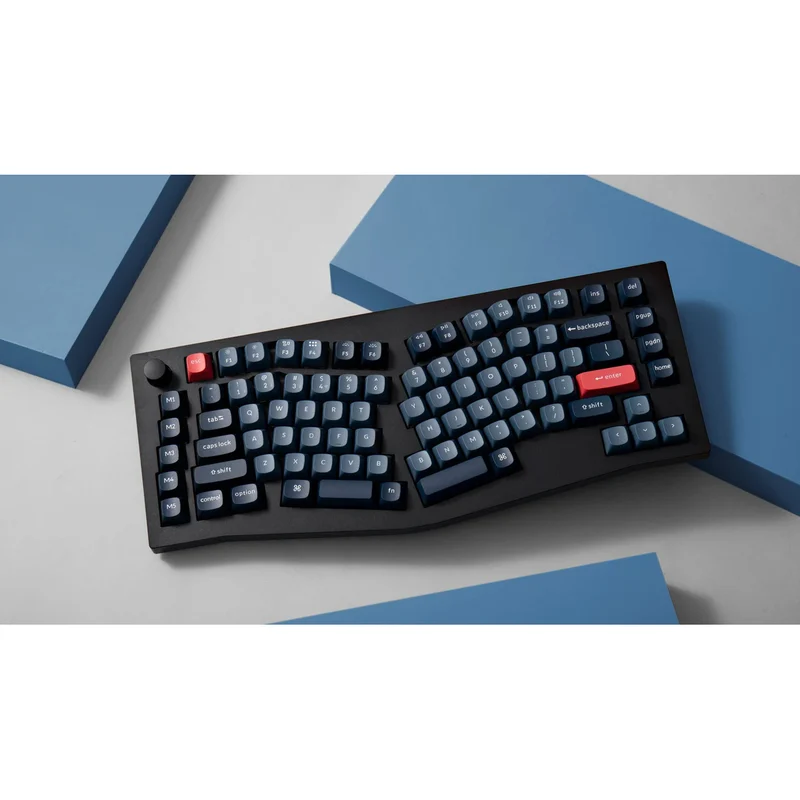

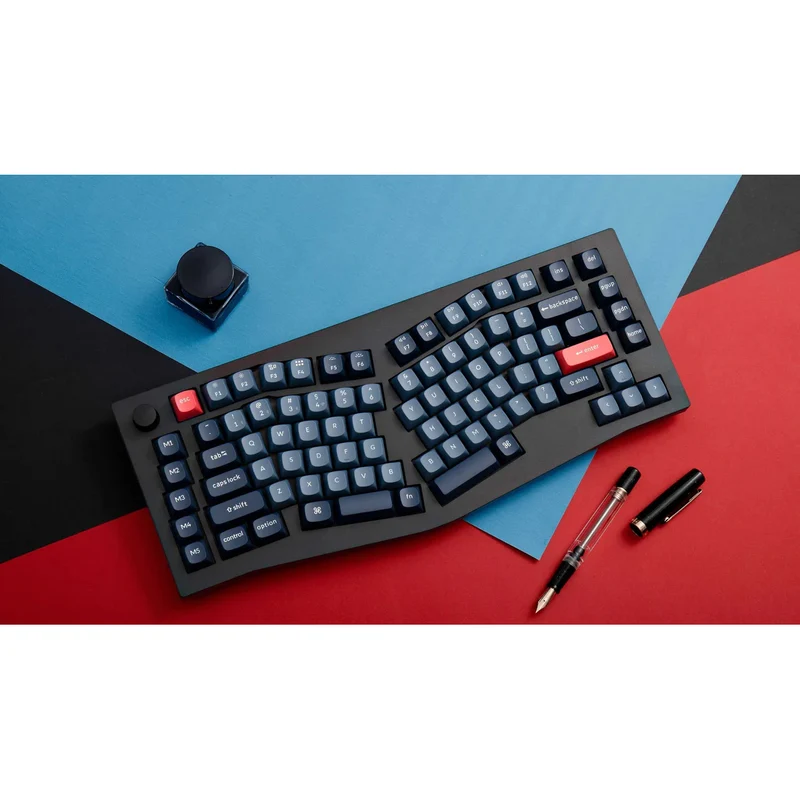

Keychron V10 Max QMK/VIA 75% Alice Fully Assembled Knob RGB Backlight Hot-Swappable Wireless Custom Mechanical Keyboard - Carbon Black (Gateron Jupiter Red Switch, Gateron Jupiter Brown Switch, Gateron Jupiter Banana Switch (V10M-D1, V10M-D3, V10M-D4)

Keychron V10 Max

The V10 Max is a QMK custom mechanical keyboard with 2.4 GHz wireless and Bluetooth 5.1 connection.
It has a 75% layout and offers a gasket mount design, sound-absorbing foam, double-shot PBT keycaps, and more. The V10 Max is designed for a personalized experience and enhanced typing comfort.

Specifications:

Width	141.3 / 157.8 mm
Length	386.7 mm
Front Height	18.7 mm  (without keycaps)
Back Height	27.2 mm (without keycaps)
Feet Height	3 mm
Angle	3.5° / 6.7° / 9.3°
Weight	958 ± 10 g (Fully Assembled Version)
Body Material	ABS Plastic
Plate Material	PC
Keycaps (Fully Assembled Version)	Double-shot PBT keycaps, not shine-through, OSA Profile (OEM height, SA shape)
Switches	Gateron Jupiter (Fully Assembled Version)
Hot-swappable	Yes. Compatible with most of the 3 pin & 5 pin MX mechanical switches such as Gateron, Cherry MX, Kailh, etc.
Stabilizer	Screw-in PCB stabs
Cable	Type-C cable + Type-A to Type-C adapter

MCU	ARM Cortex-M4 32-bit STM32F402 (256KB Flash)
Charging Port	USB Type-C
Operating Environment	-10℃ to 50℃
Polling Rate	1000 Hz (2.4 GHz and wired) / 90 Hz (Bluetooth mode)
Mount Style	Gasket Mount Design
Backlight	South-facing RGB LED
N-Key Rollover (NKRO)	Yes for both wireless and wired modes
Compatible System	Windows/macOS/Linux
Bluetooth Version	5.1
Bluetooth Device Name	Keychron V10 Max
Battery	4000 mAh Rechargeable li-polymer battery
Charging Time	Around 5 hours
Wireless Working Time (Backlit off)	Up to 225 hours (Lab test result may vary by actual use)
Wireless Working Time (RGB)	Up to 100 hours (Lowest brightness)
