Keychron V1 QMK Barebone Knob Version RGB Backlight Hot-Swappable Wired Mechanical Keyboard - Frosted Black (V1Z1)

Keychron V1

The V1 is a fully customizable mechanical keyboard ready for any situation. It’s a great option to introduce you to the custom keyboard world. With its compact 75% layout, QMK/VIA support, acoustic silicone pad, and double-shot PBT keycaps, the V1 is designed for ultra typing comfort and boost productivity.

Frosted Black Version (Translucent）

Carbon Black Version (Non-transparent）

All-Around Customizable Keyboard

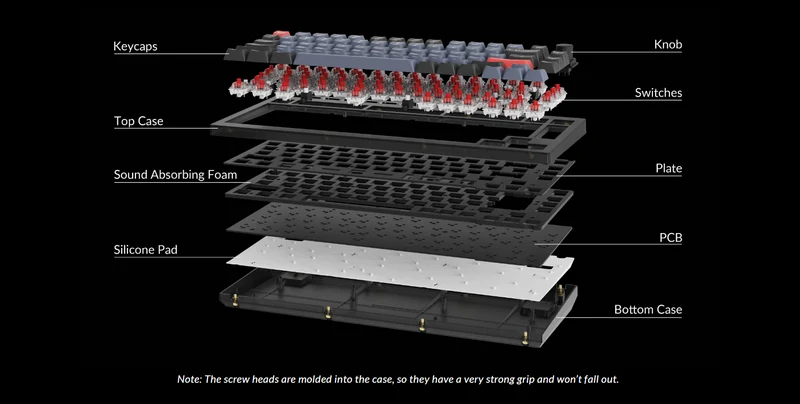

To build a fully customizable keyboard, we designed every component to be easily assembled so you can customize and adjust any or every parts the way you want.

Program V1 with QMK & VIA

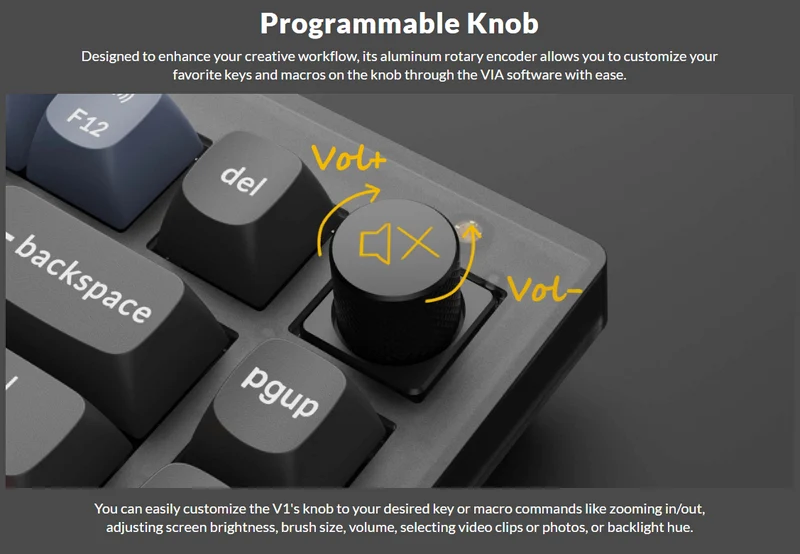

With full QMK and VIA support, you can easily program and remap each key on the keyboard. The open-source firmware means endless possibilities for keyboard layouts, shortcuts, backlight effects, even the knob, and more.

Hot-swappable

The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3-pin and 5-pin MX mechanical switches.

South-facing RGB LED Lights

The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the keyboard.

SPECIFICATIONS:

Width	148.7 mm
Length	328.5 mm
Front Height	17.9 mm (without keycaps)
Back Height	25.8 mm (without keycaps)
Feet Height	2.4 mm
Angle	3.5° / 7.08° / 9.52°
Weight	970 g ± 10 g (Fully Assembled Version)
Body Material	ABS Plastic
Plate Material	Steel
Polling Rate	1000 Hz
Mount Style	Tray Mount Design

Keycaps (Fully Assembled Version)	Double-shot PBT keycaps, not shine-through, OSA Profile (OEM height, SA shape)
MCU	Ultra-low-power ARM Cortex-M4 32-bit STM32L432 (128KB Flash)
Switches	Keychron K Pro (Fully Assembled Version)
Backlight	South-facing RGB LED
Switch Support	Hot-swappable (5 pin & 3 pin)
Stabs	Screw-in PCB stabs
Connectivity	Type-C
Cable	Type-C cable + Type-A to Type-C adapter
Operating Environment	-10℃ to 50℃
