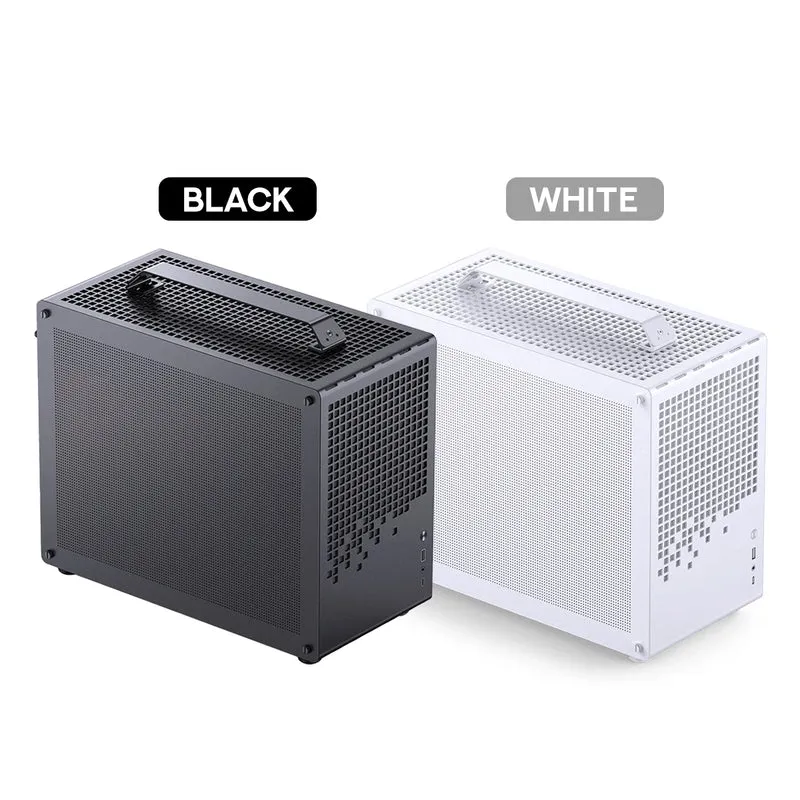

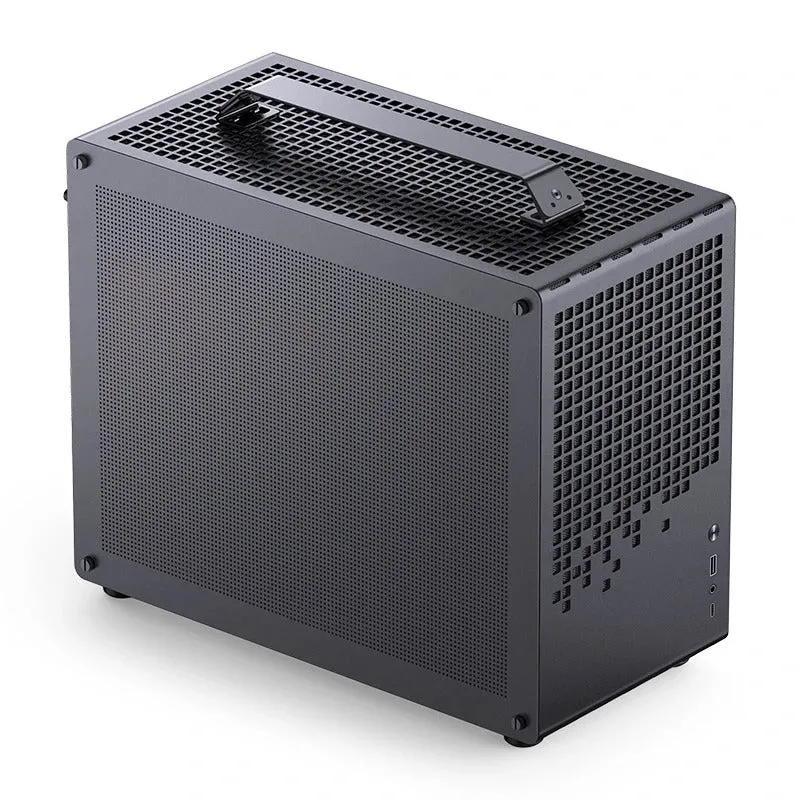

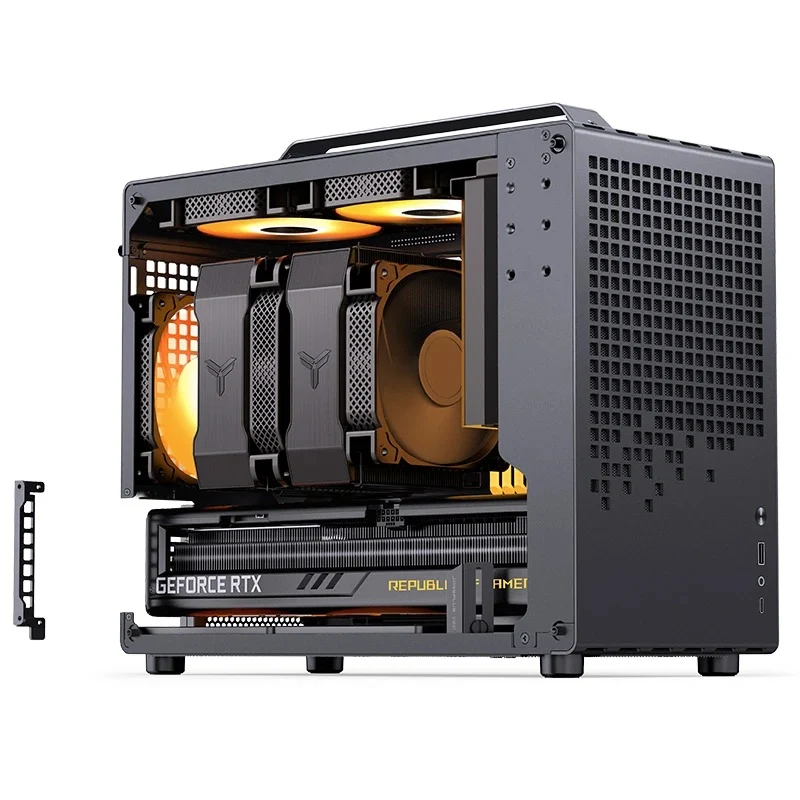

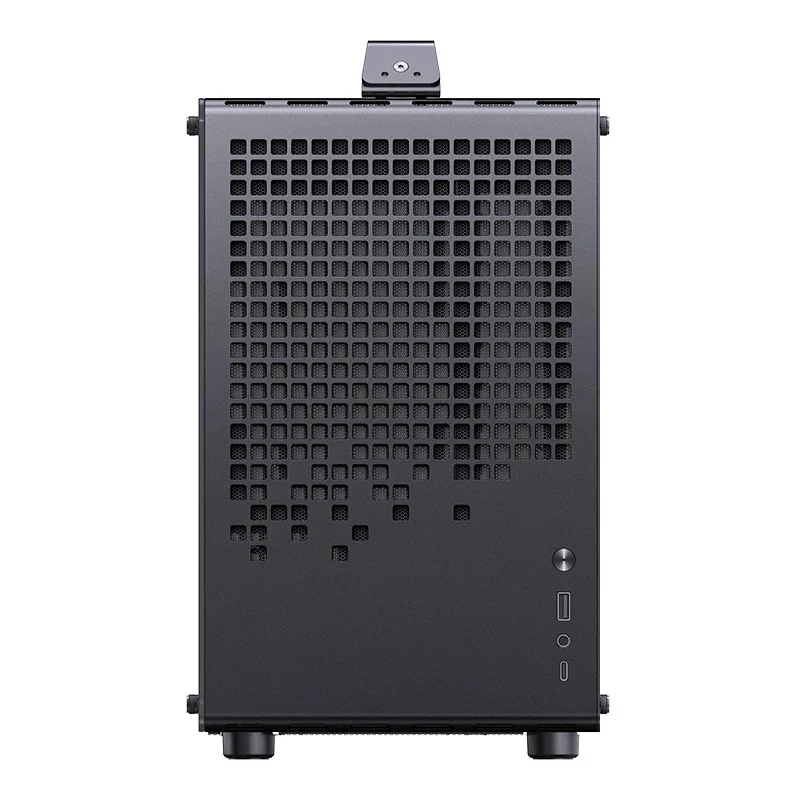

Jonsbo Z20 Mesh M-ATX Computer Case (Black, White)

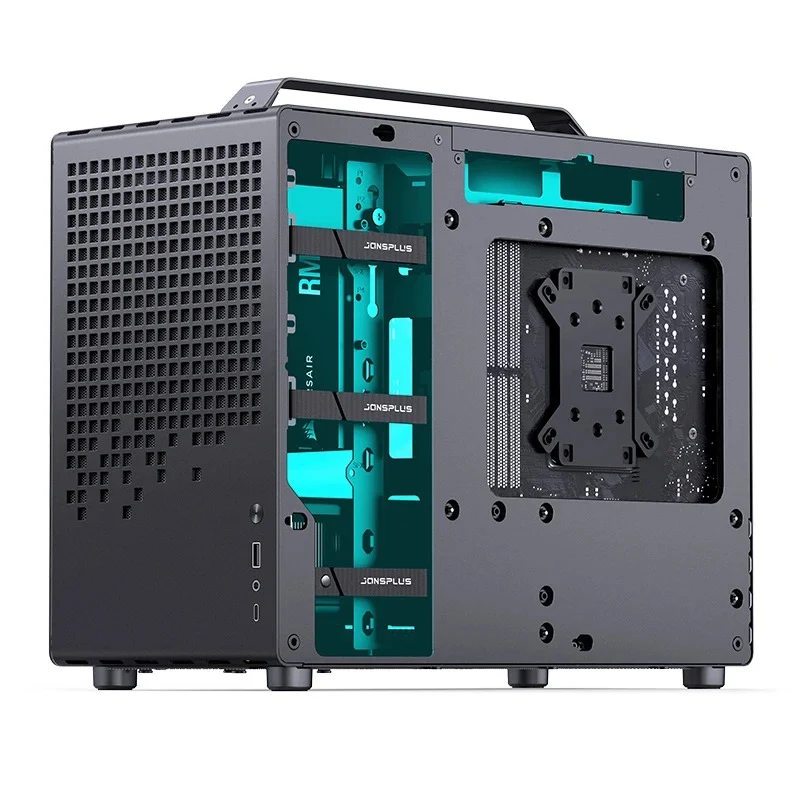

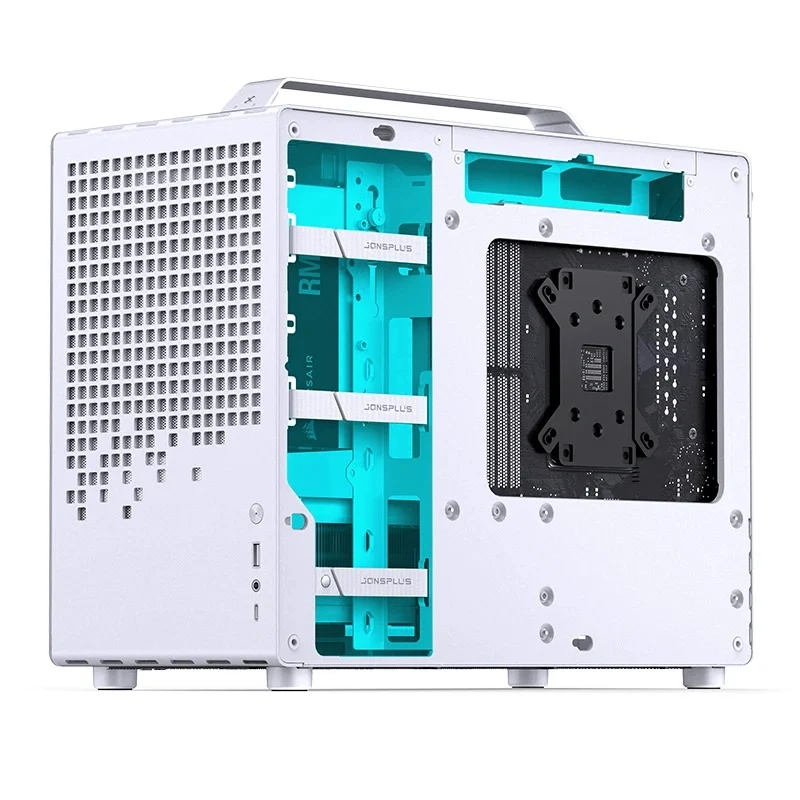

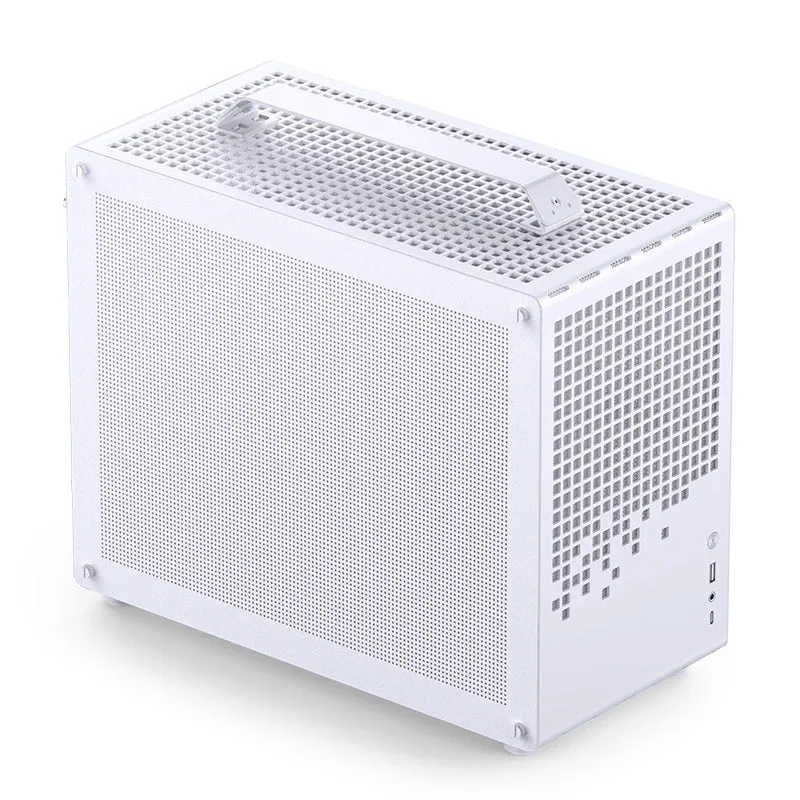

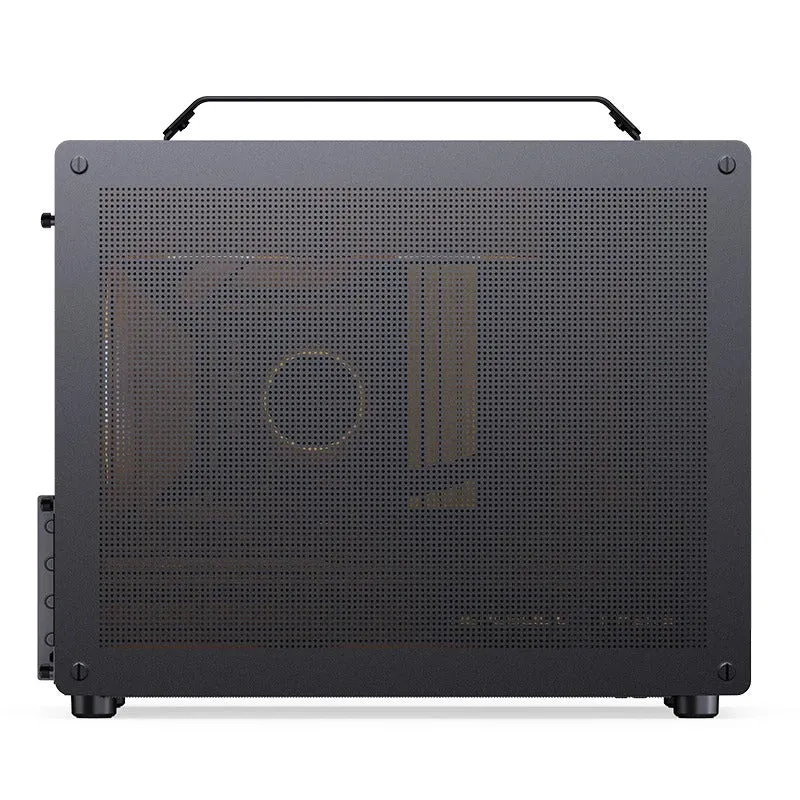

The Jonsbo Z20 Mesh M-ATX Computer Case is a compact yet highly capable chassis designed for builders who want powerful performance in a space-saving form factor. Featuring a clean modern design with a durable steel structure and tempered glass side panel, the Z20 Mesh combines excellent airflow, strong hardware compatibility, and a sleek desktop-friendly footprint.

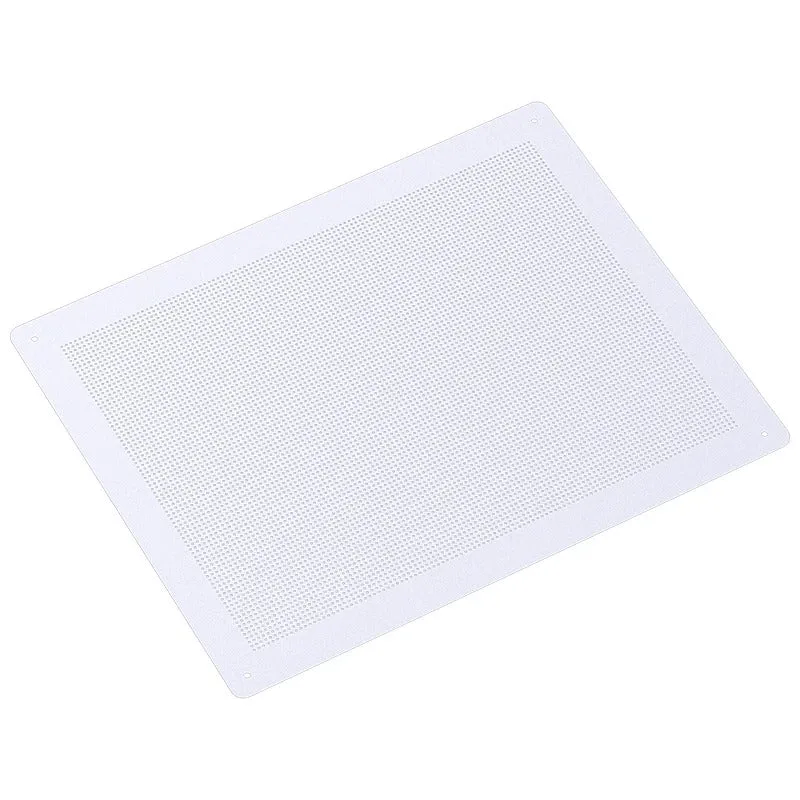

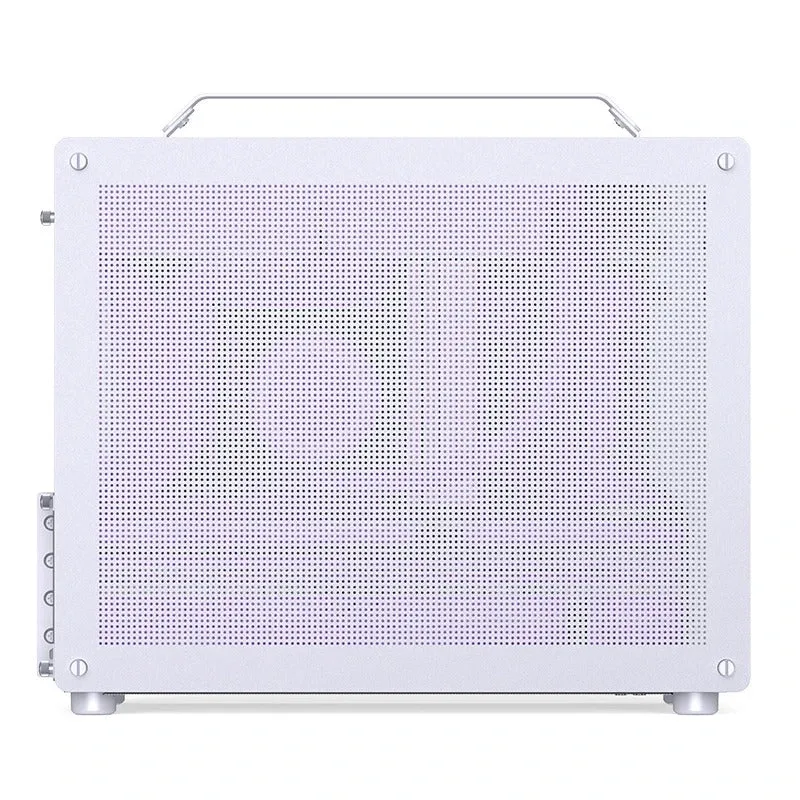

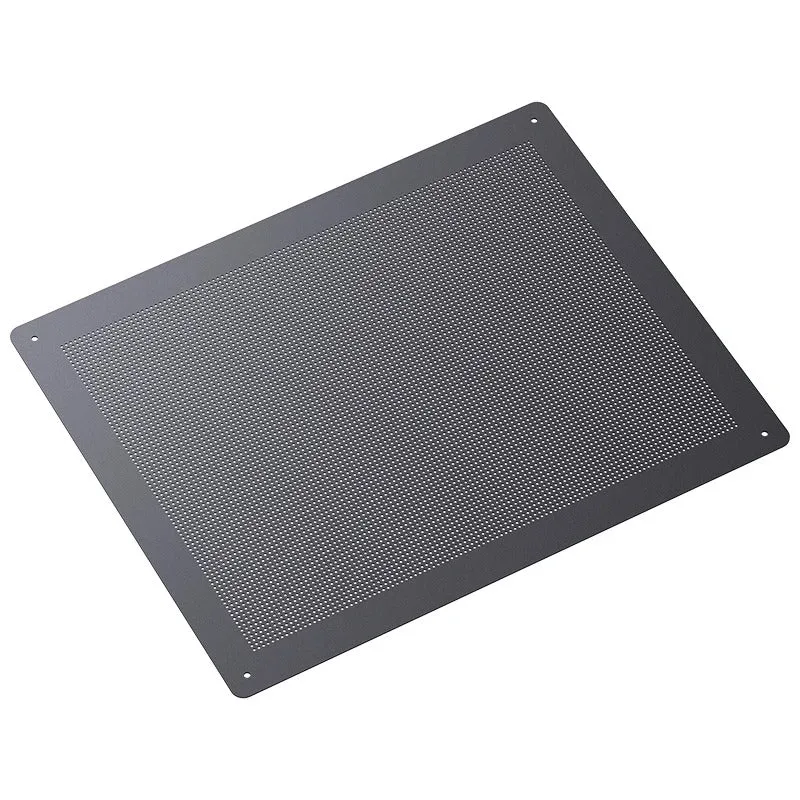

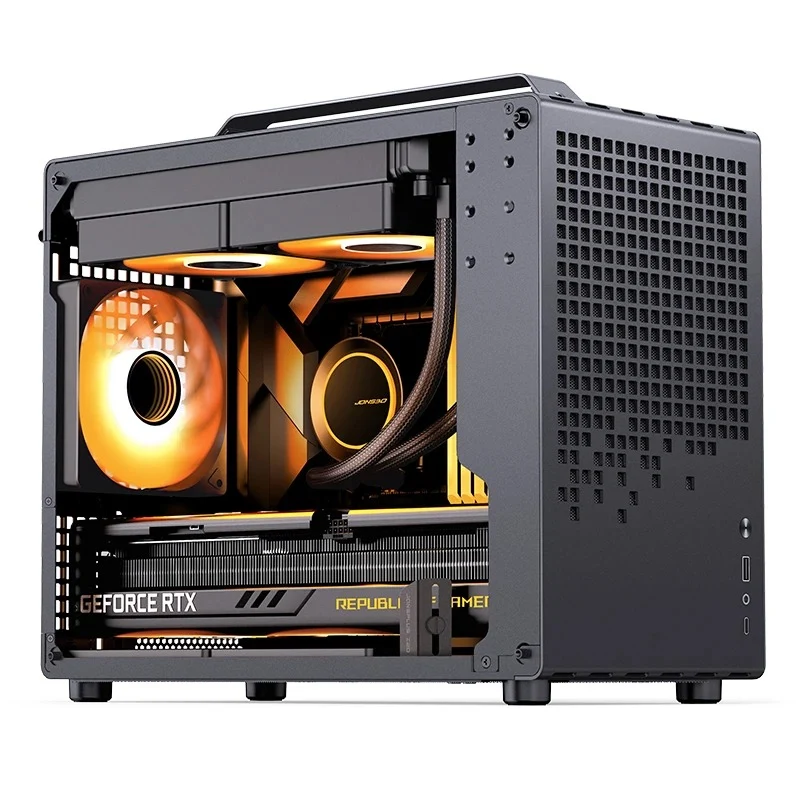

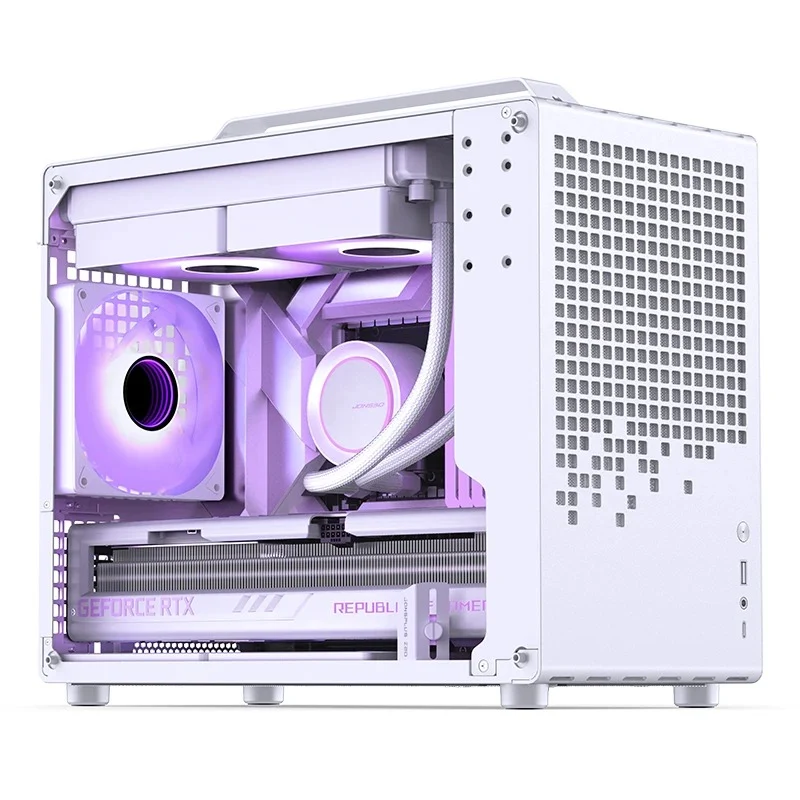

Built to support both Mini-ITX and Micro-ATX motherboards, the Z20 Mesh offers flexible installation options for gaming systems, workstation builds, and high-performance everyday PCs. Its mesh front design enhances ventilation, while support for multiple cooling fans and up to a 240mm top radiator ensures efficient thermal performance even under heavy workloads.

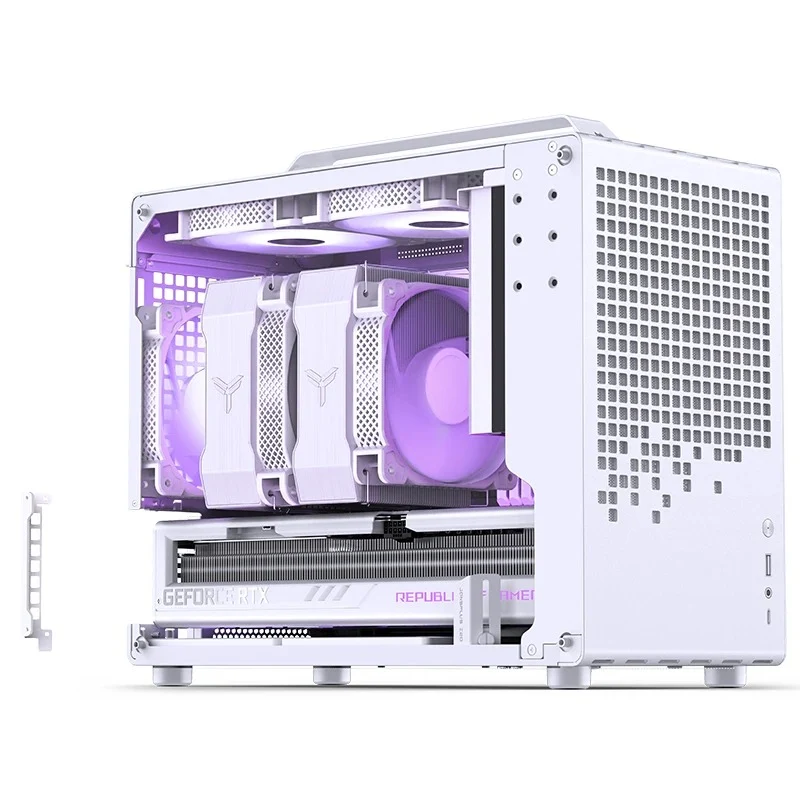

Despite its compact size, the case provides generous clearance for large GPUs up to 363mm, CPU air coolers up to 164mm, and ATX PS2 power supplies up to 180mm, giving users more freedom when selecting premium components. It also supports SFX and SFX-L power supplies for additional configuration flexibility.

Specification:

Model：	Z20

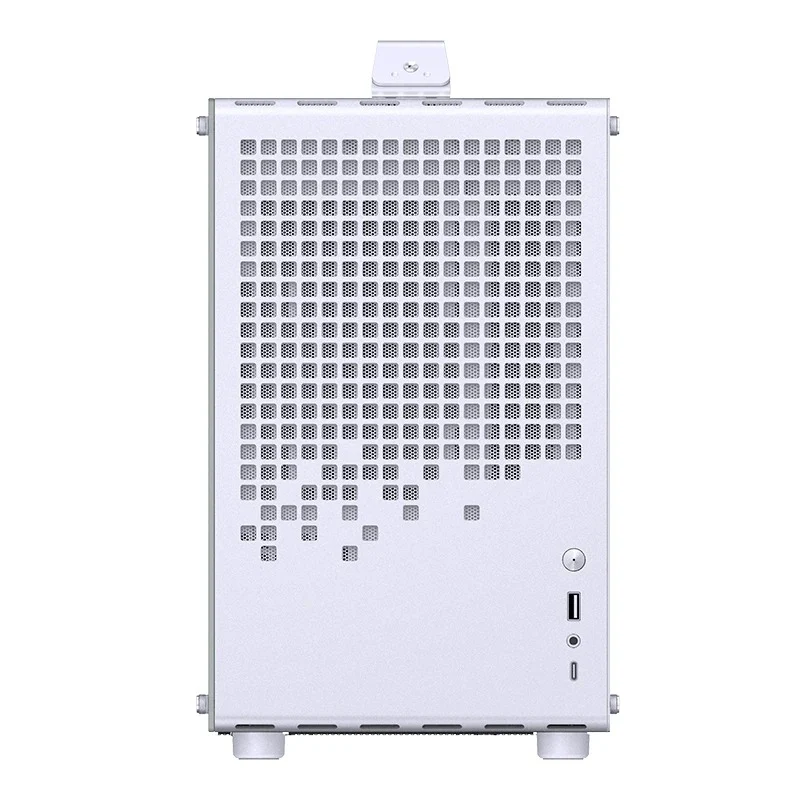

Color：	MESH White
Dimension(w/o handle/feet and other protrusions)：	370mm * 186mm* 295mm(depth/width/height)
Dimension (with handle/feet and other protrusions)：	382mm * 198mm* 335mm (depth/width/height)
Case Material：	SPCC Steel，Tempered Glass
Motherboard Support:	Mini-ITX / Micro-ATX
Drive Bay：	2.5〞SSD：up to 3,depends on other hardware configurations 3.5〞HDD：up to 1,depends on other hardware configurations
Front IO Port：	USB3.2 Gen1 Type-A*1/USB3.2 Gen 2 Type-C*1/AUDIO*1 & MIC*1
FAN：	Top：120mm*2/140mm*2；Rear：120mm*1/92mm*1; Bottom：120mm*2/140mm*2，depends on other hardware configurations
Radiator support：	Top，up to 240mm
ATX PS2 PSU Clearance：	Up to 180mm, recommended length ≤140mm,depends on other hardware configurations (Refer to page 11)
SFX PSU Support：	SFX / SFX-L
CPU Air Cooler Clearance：	164mm MAX (Intel CPU) or 163mm MAX (AMD CPU)
GPU Clearance：	Up to 363mm，depends on other hardware configurations
Weight：	N.W. 5kg / G.W. 6.5kg
