Anbieter: Huawei

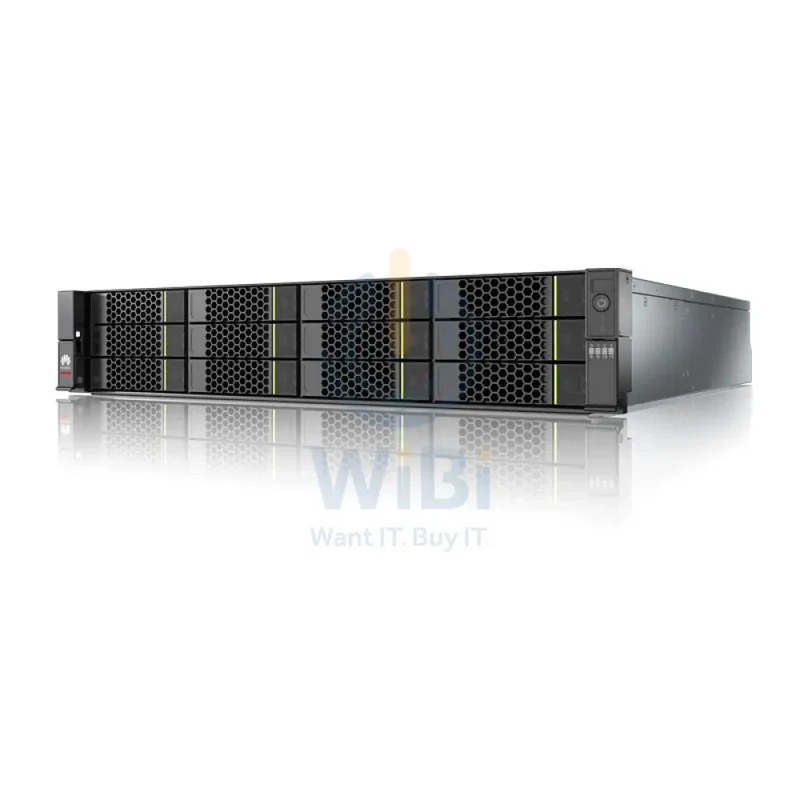

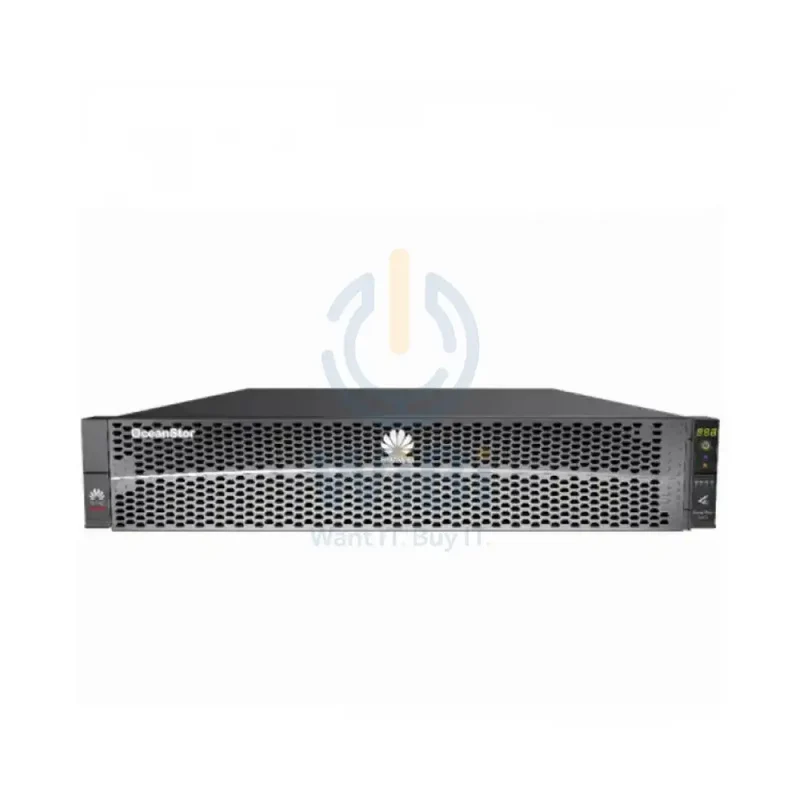

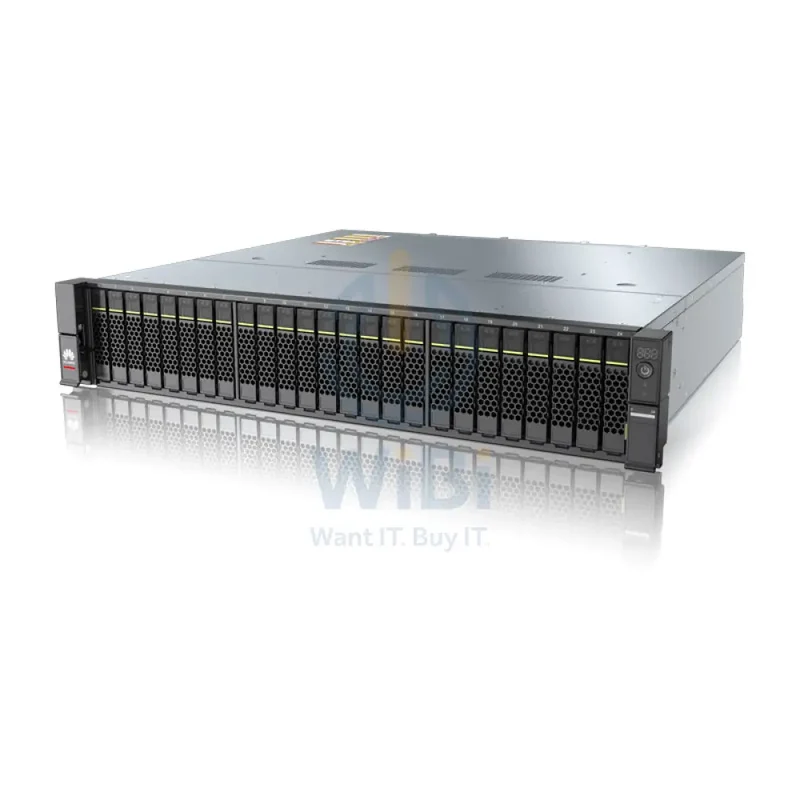

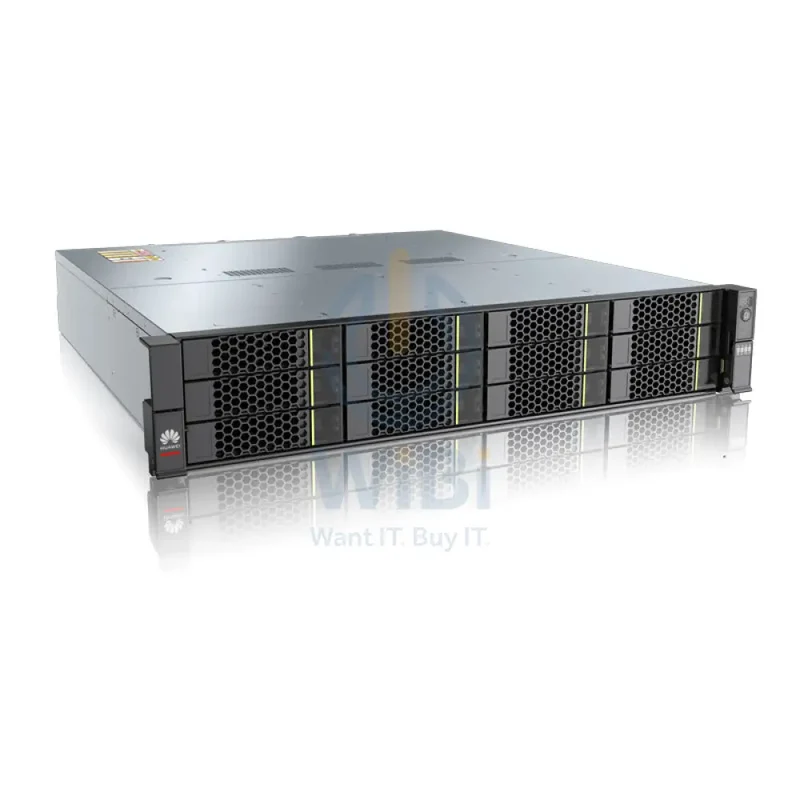

Huawei OceanStor 5120 Unified Hybrid Flash Storage (2U, Dual Controllers, SAS, AC\240V HVDC, 64GB Cache, 8*1Gb ETH,4*10Gb ETH(Including Multi-Mode SFP+),4*SAS3.0 port) 120TB (6 x 20TB 7.2K RPM NL-SAS Disk) + 1.92TB (4 x 480GB SSD SAS Disk), 3 YW

5.519,12 €10.638,56 €48% OFF
Menge

Beschreibung

Brand Huawei
Model Huawei OceanStor 5120 Hybrid Flash Storage System
Storage 120TB / 6x 20TB HDD + 1.92TB / 4x 480GB SSD
Number of SSDs 4
Number of HDDs 6
System Cache (Dual Controller) 64GB
Supported Storage Protocols FC, iSCSI, NFS, CIFS
Front End Port Types 8/16/32 Gbps FC, 1/10/25 Gbps Ethernet
Back End Port Types SAS 3.0
Maximum Number of Front End Ports per Controller Enclosure 28
Disk Types SSD, SAS, NL, SAS
Supported RAID Levels RAID 10*, RAID 5, RAID 6, RAID TP (tolerating simultaneous failures of 3 disks)
Storage Management Software UltraPath DeviceManager , BCManager , DME IQ
Power Supply 100 V to 240 V AC 10%, 192 V to 288 V DC – 38.4 V to 75 V DC (only supported by disk enclosures)
Operating Temperature – 60 m to +1800 m altitude: 5 C to 35 C (cabinet) or 40 C (enclosure) 1800 m to 3000 m altitude: The maximum temperature threshold decreases by 1 C for every altitude increase of 220 m
Operating Humidity 10% to 90% RH
Dimensions (H x W x D) 86.1 mm × 447 mm × 410 mm
Weight 16.4 kg
Warranty Three Years
