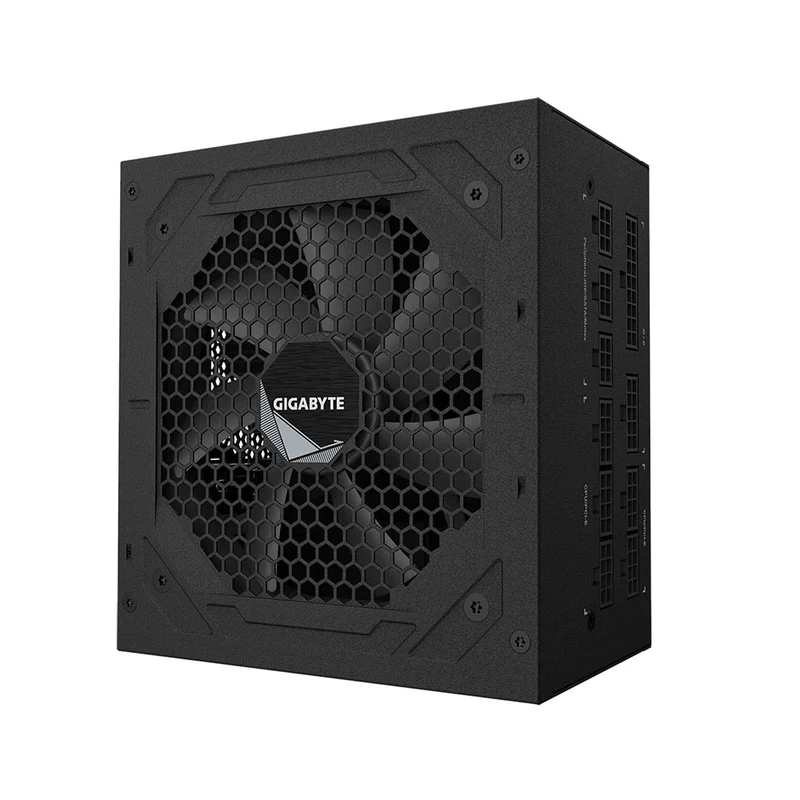

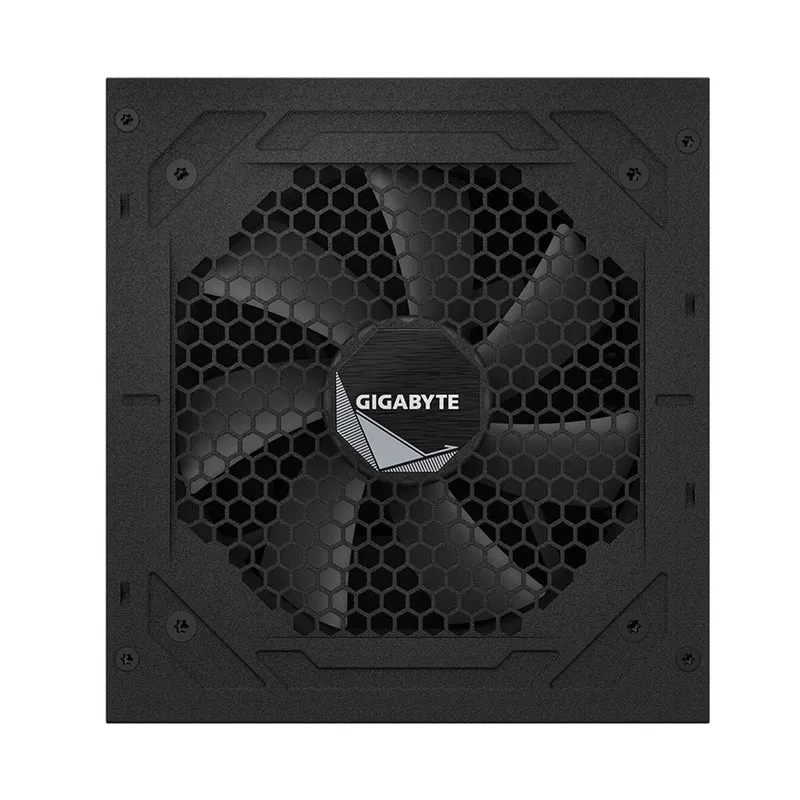

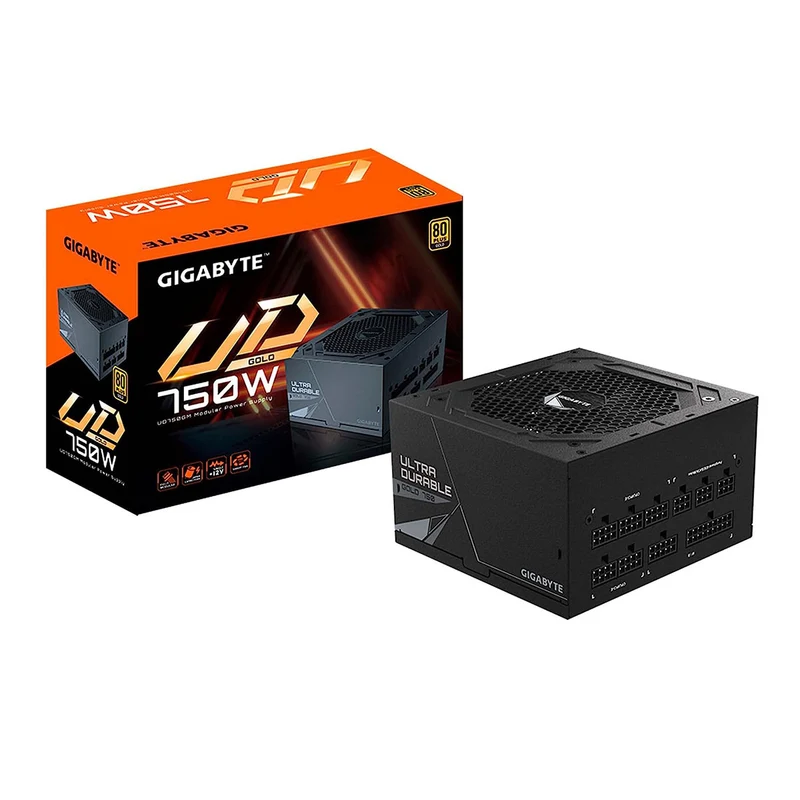

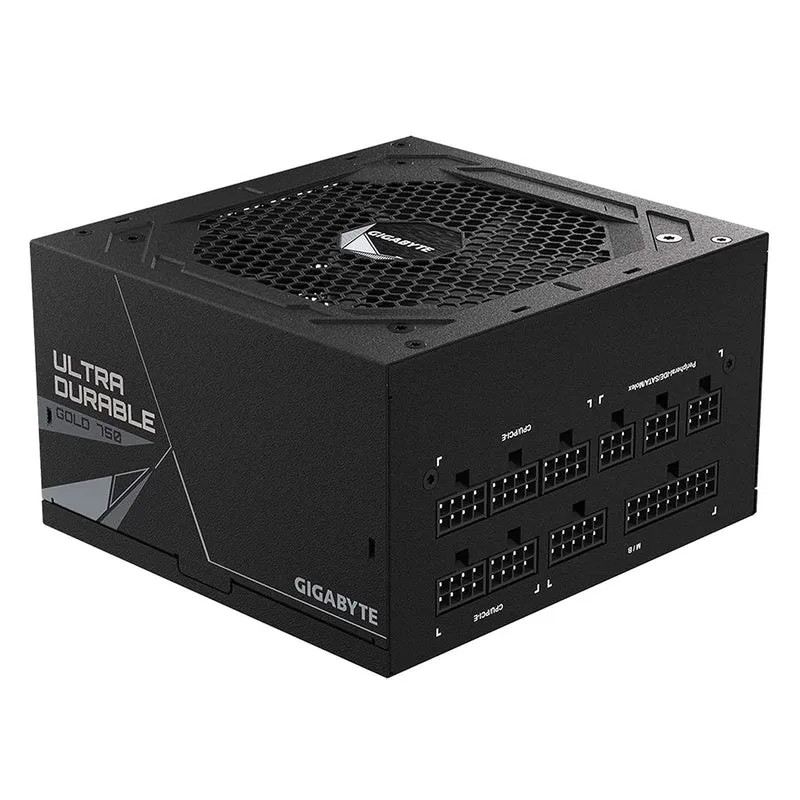

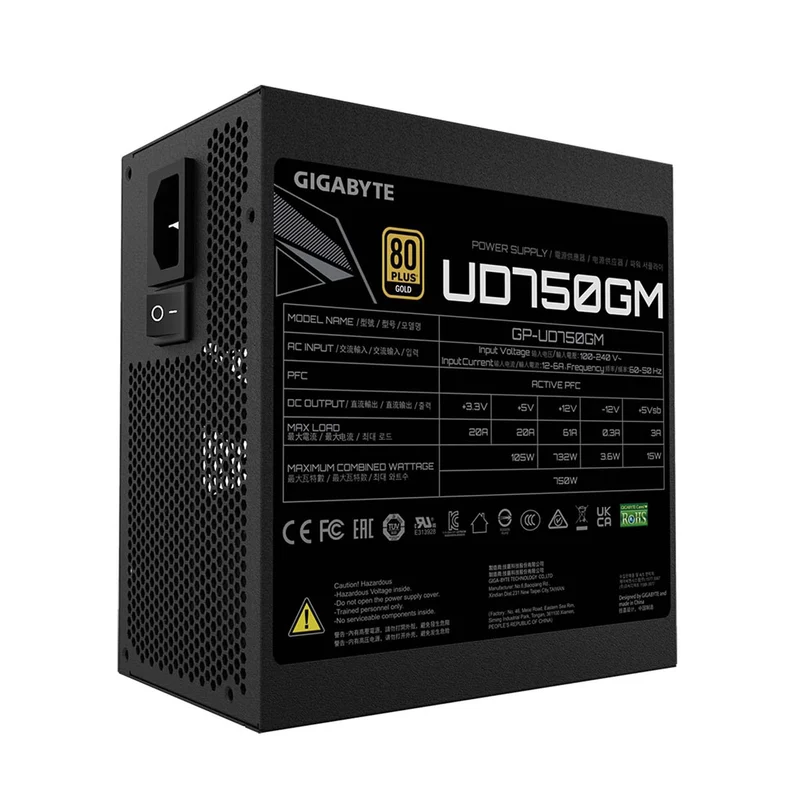

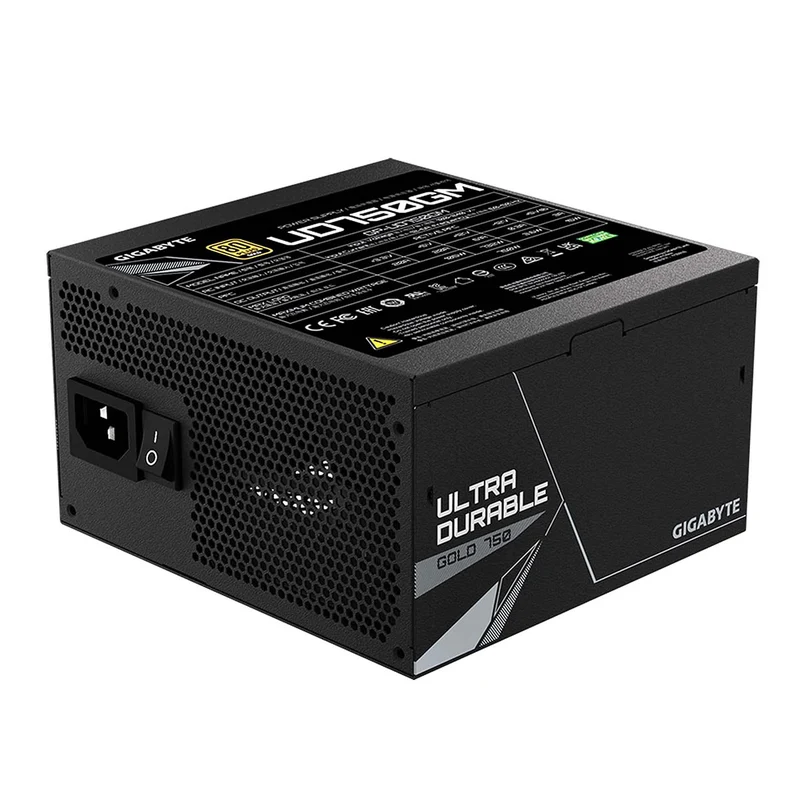

Gigabyte GP-UD750GM 750W 80 Plus Gold Power Supply + 16-Pin Cable

Inherit the product design spirit of GIGABYTE Ultra Durable, thus introducing a variety of high-quality materials and designs. Ultra Durable combines high-quality main Japanese capacitors, enhanced thermal solution, 120mm smart hydraulic bearing (HYB) fan, and six circuit protection designs. It provides consumers with a high-quality and stable power supply, and can be used for a long time.

SPECIFICATION

• Model GP-UD750GM
• Type Intel Form Factor ATX 12V v2.31
• PFC Active PFC (>0.9 typical)
• Input Voltage 100-240 Vac (full range)
• Input Current 12-6A
• Input Frequency 60-50 Hz
• Output Capacity 750W
• Dimension 150 x 140 x 86 mm
• Fan Type 120mm Hydraulic Bearing(HYB)fan
• 80 PLUS Gold
• Efficiency 90% at typical load
• MTBF >100,000 hours
• Protection OVP/OPP/SCP/UVP/OCP/OTP
• Power Good Signal 100-150ms
• Hold Up Time >16ms
• Cable Type Flat, All black

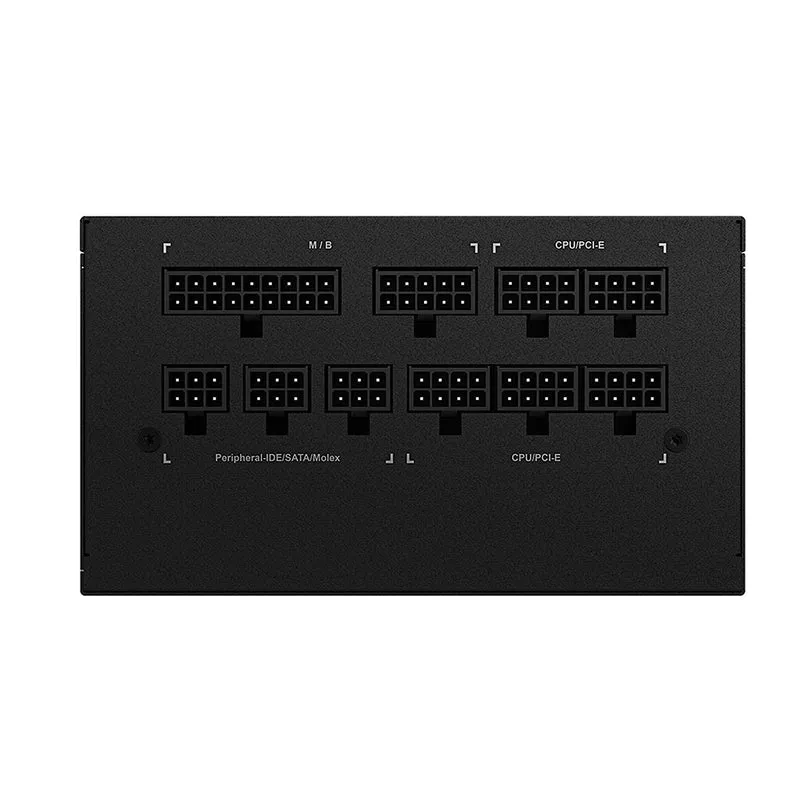

• Connectors ATX/MB 20+4 Pin x 1 : 610mm*1
  CPU/EPS 4+4 Pin x 2 : 600mm*2
  PCI-e 6+2 Pin x 4 : 600mm+150mm*2
  SATA x 8 :
  600mm+150mm+150mm+150mm*2
  4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1
