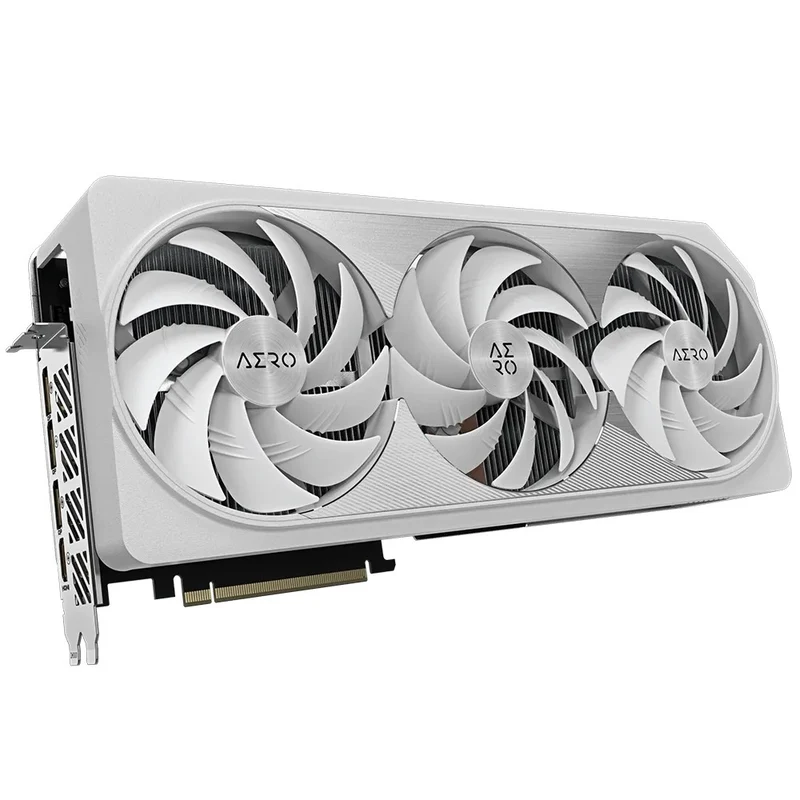

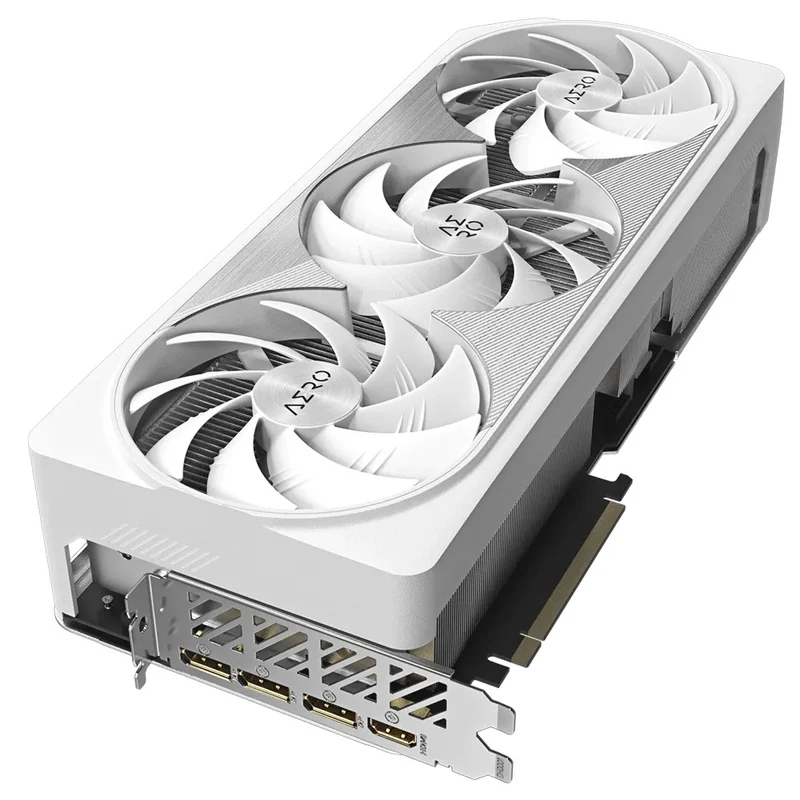

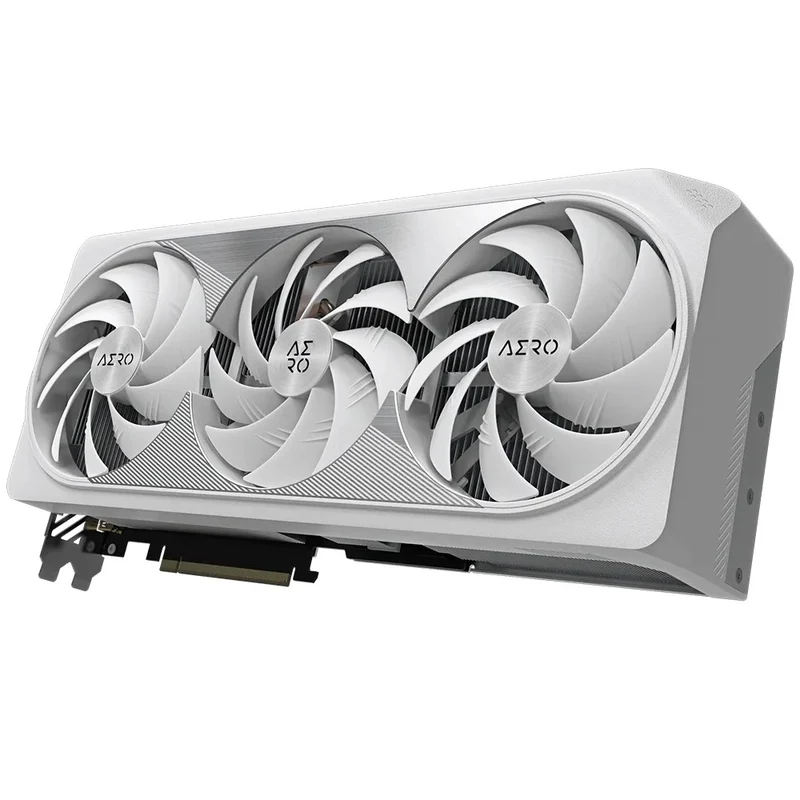

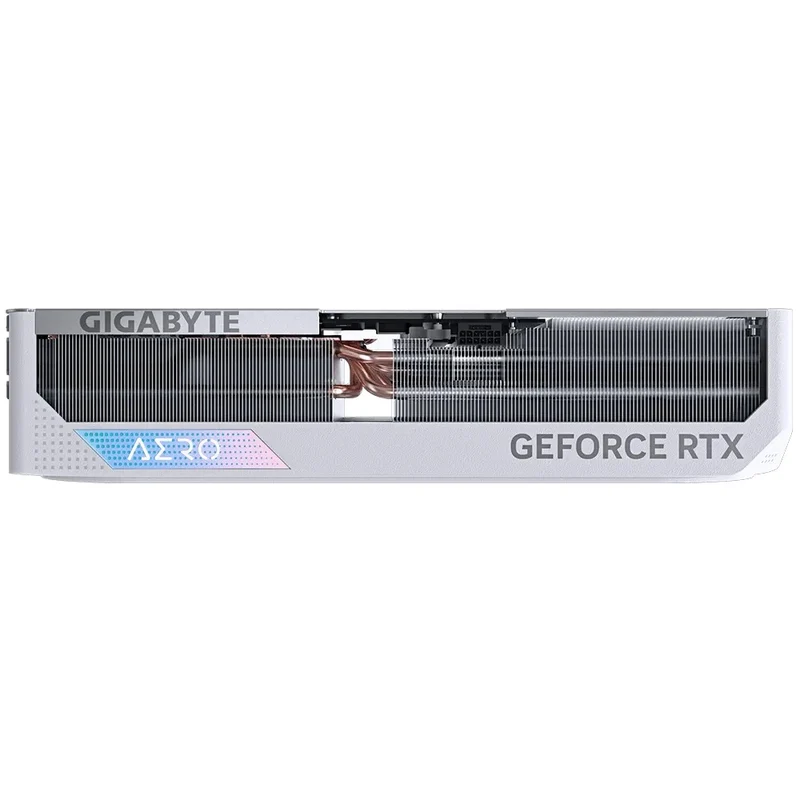

Gigabyte GeForce RTX 4090 Aero OC 24GB GDDR6X Graphics Card

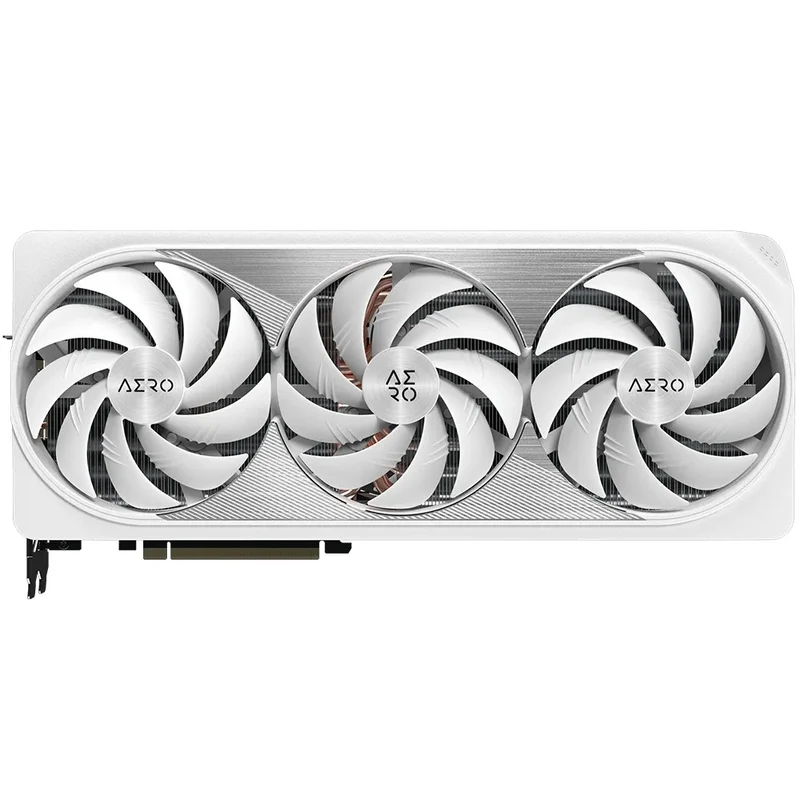

WINDFORCE COOLING SYSTEM

The WINDFORCE cooling system features three 110mm unique blade fans, alternate spinning, 10 composite copper heat pipes, a large vapor chamber directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.

SCREEN COOLING

Extended heatsink design allows air flow to pass through, providing better heat dissipation.

LARGE VAPOR CHAMBER & HEAT-PIPE

The large vapor chamber directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.

RGB FUSION

With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.

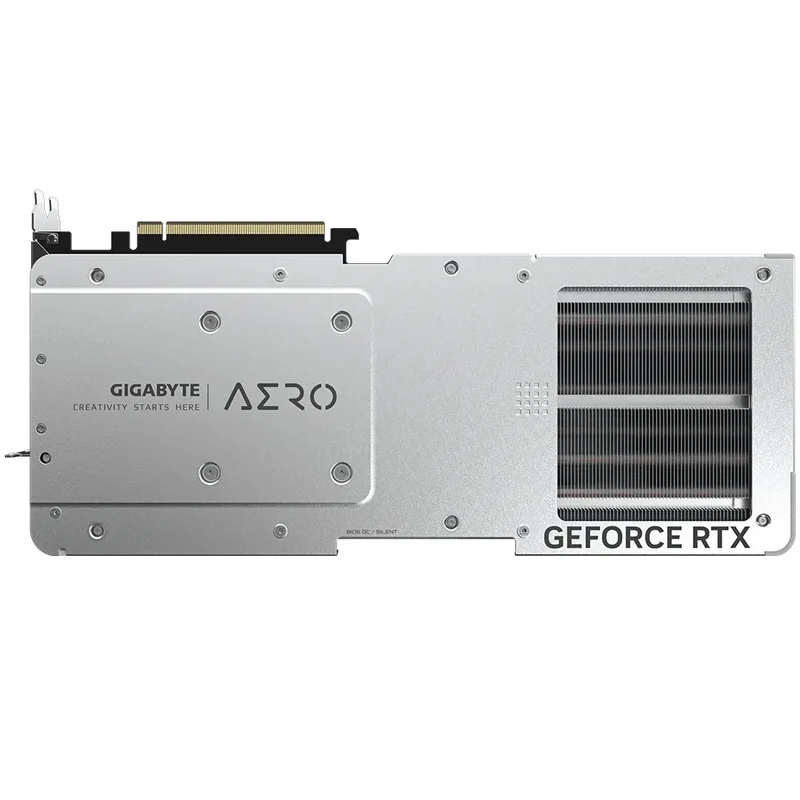

PROTECTION METAL BACK PLATE

The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

DUAL BIOS

The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.

POWER INDICATOR

When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.

ANTI-SAG BRACKET

The new anti-sag bracket is tailored to each graphics card. It provides the optimized reinforcement and better overall visual appearance.

ULTRA DURABLE

Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.

FRIENDLY PCB DESIGN

Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

GIGABYTE CONTROL CENTER

GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

Specifications :

Graphics Processing	GeForce RTX™ 4090
Core Clock	2535 MHz (Reference Card: 2520 MHz)
CUDA® Cores	16384
Memory Clock	21 Gbps
Memory Size	24 GB
Memory Type	GDDR6X
Memory Bus	384 bit
Card Bus	PCI-E 4.0
Digital max resolution	7680x4320
Multi-view	4
Card size	L=342 W=150 H=75 mm
PCB Form	ATX
DirectX	12 Ultimate
OpenGL	4.6
Recommended PSU	1000W
Power Connectors	16 pin*1

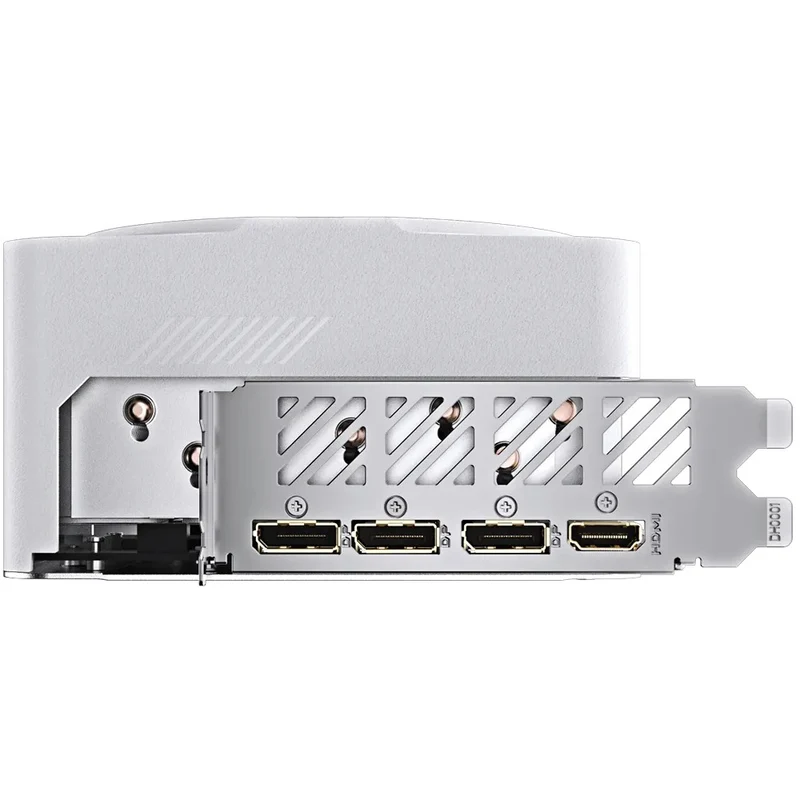

Output	DisplayPort 1.4 *3 HDMI 2.1 *1
