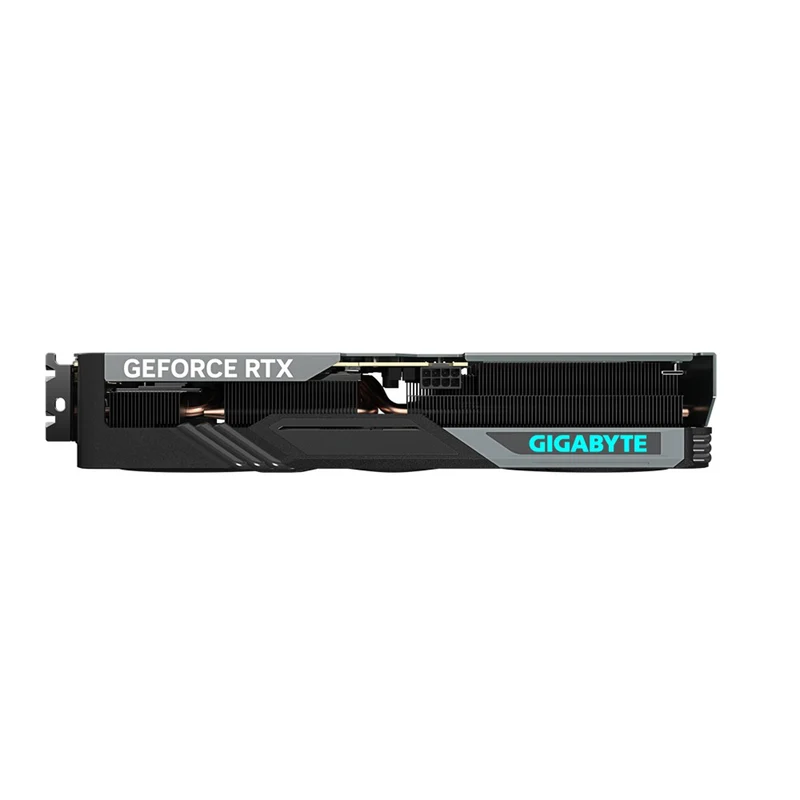

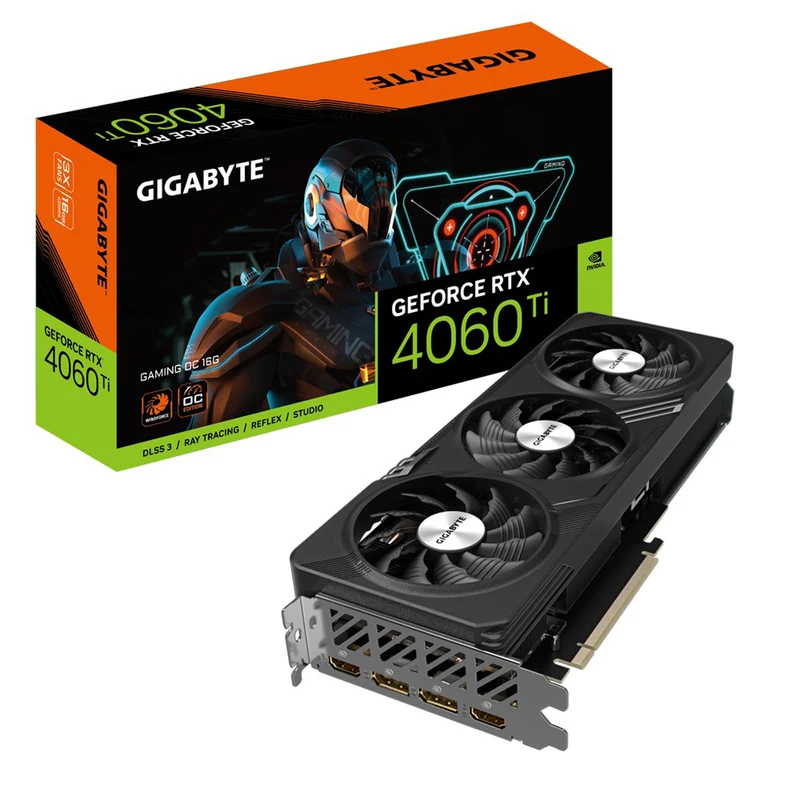

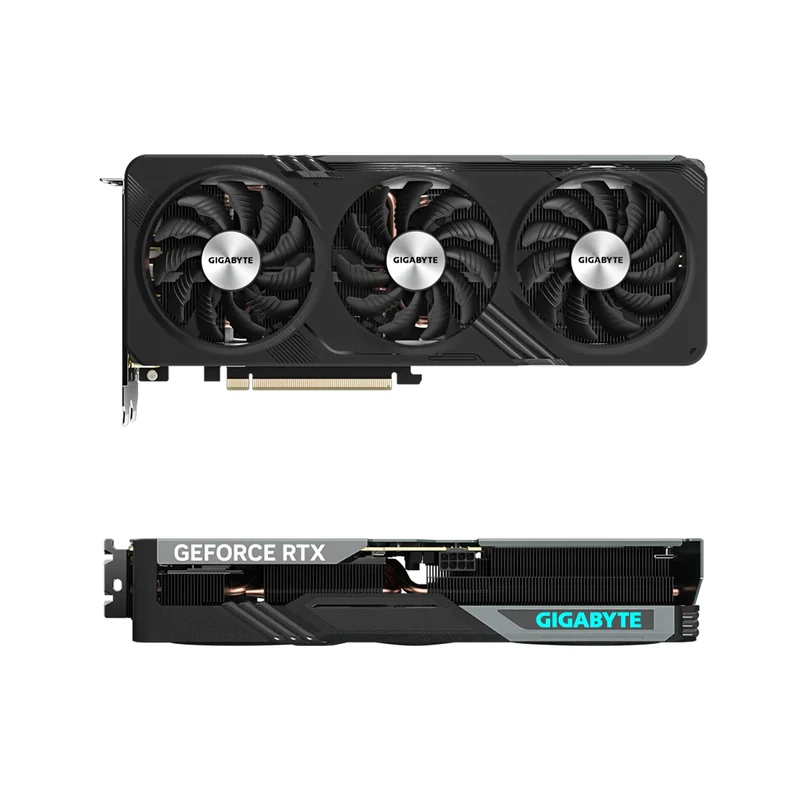

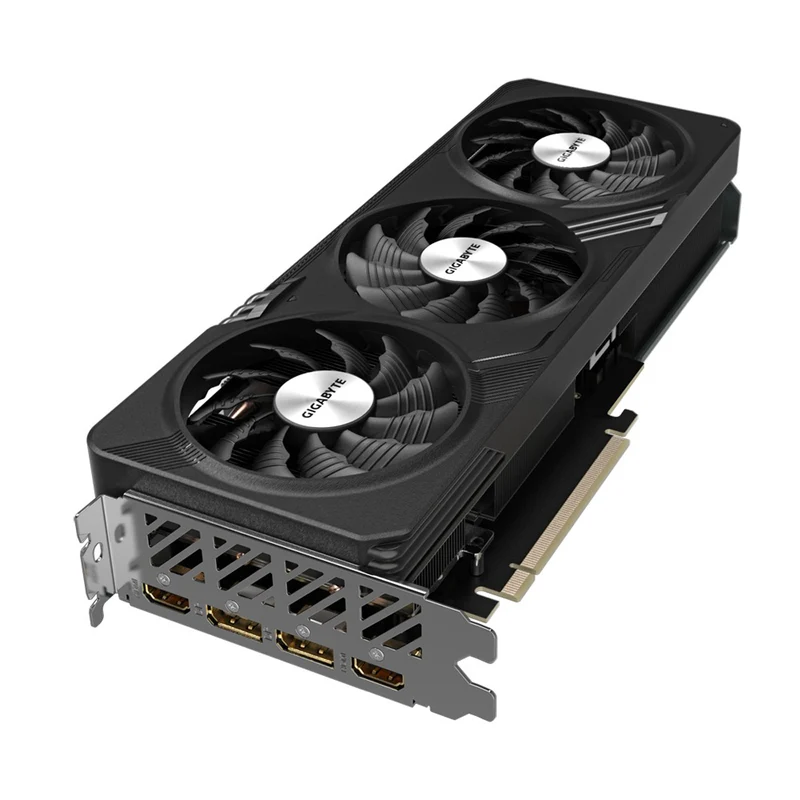

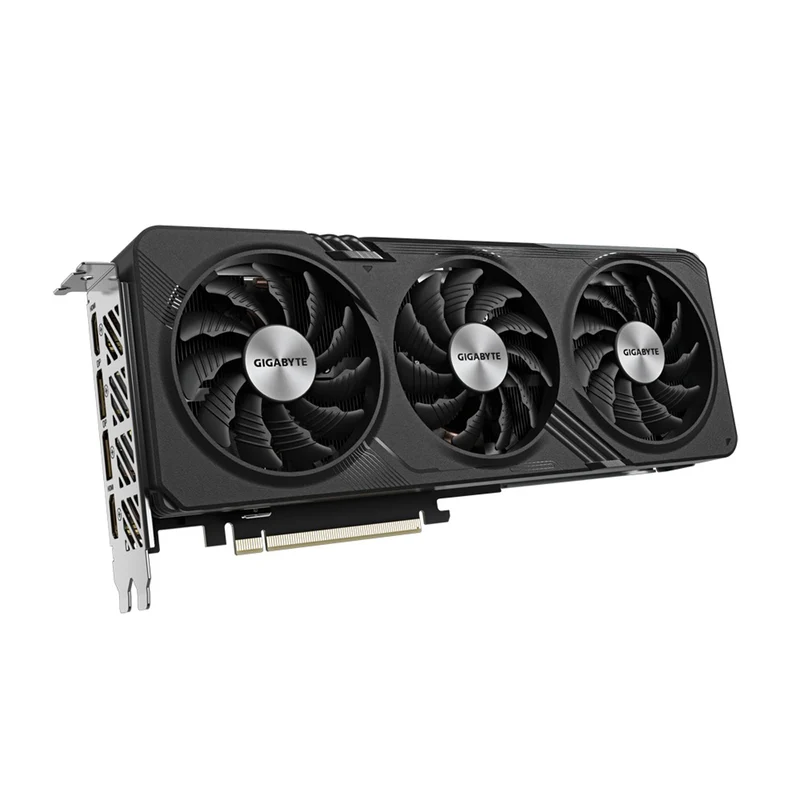

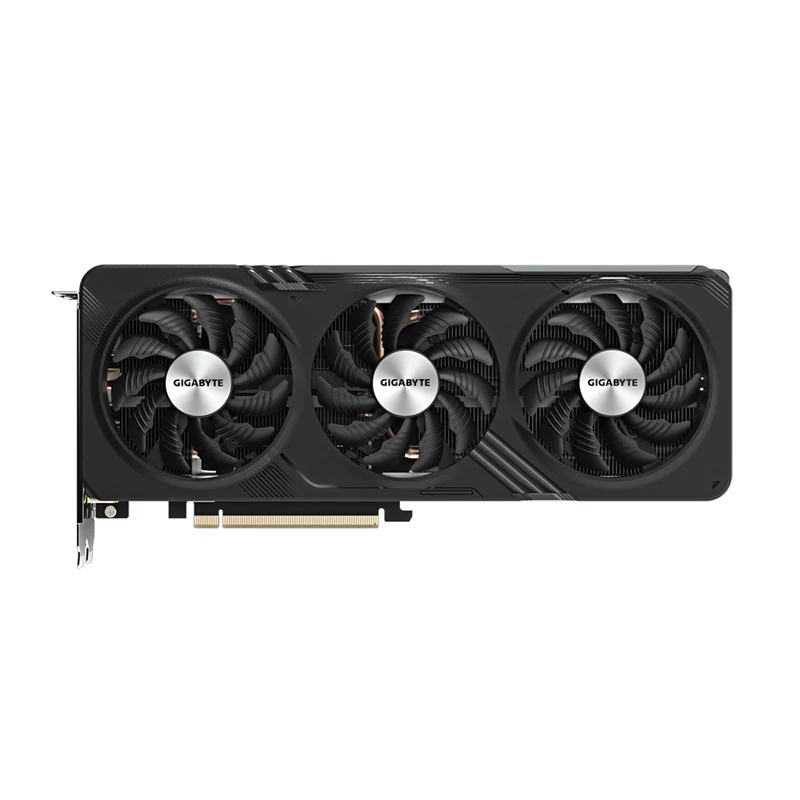

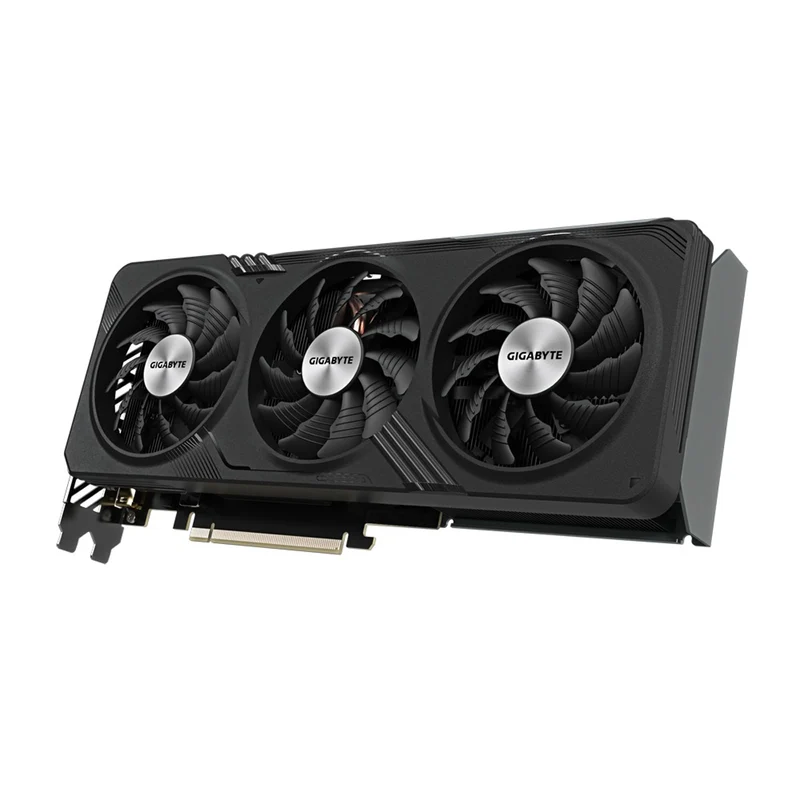

Gigabyte GeForce RTX 4060 Ti Gaming OC 16GB GDDR6 Graphics Card

KEY FEATURE

• Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
• 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
• 3rd Generation RT Cores: Up to 2X ray tracing performance
• Powered by GeForce RTX™ 4060 Ti (16GB)
• Integrated with 16GB GDDR6 128bit memory interface
• WINDFORCE cooling system
• RGB Fusion
• Dual BIOS

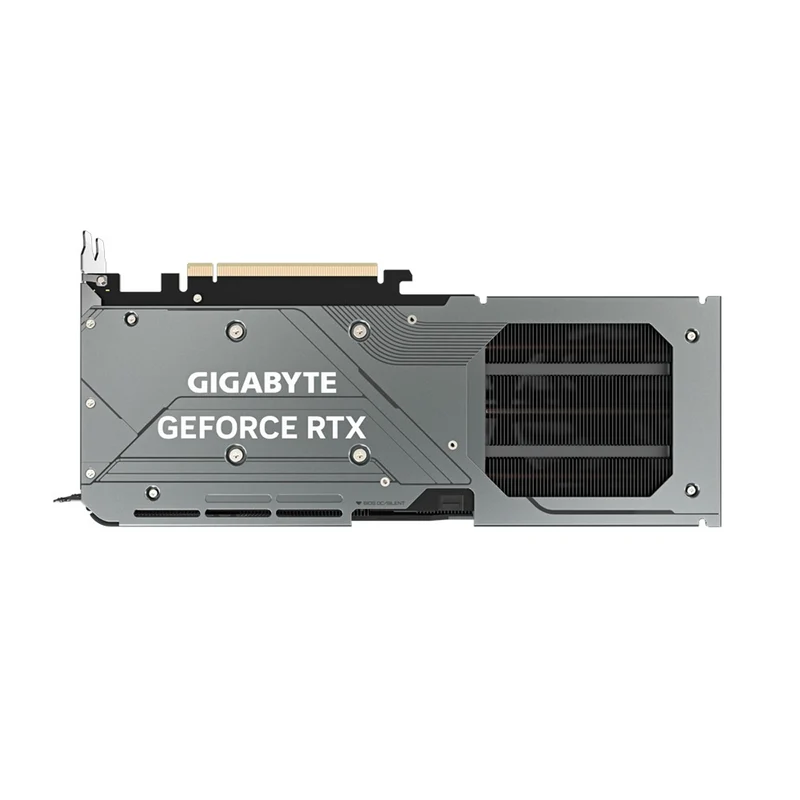

• Protection metal back plate

CORE CLOCK

2595 MHz (Reference card: 2535 MHz)

BUILT STRONG

ULTRA DURABLE

Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.

FRIENDLY PCB DESIGN

Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

 Specifications:

• Graphics Processing GeForce RTX™ 4060 Ti (16GB)
• Core Clock 2595 MHz (Reference card: 2535 MHz)
• CUDA® Cores 4352
• Memory Clock 18 Gbps
• Memory Size 16GB
• Memory Type GDDR6
• Memory Bus 128 bit
• Card Bus PCI-E 4.0
• Digital max resolution 7680 x 4320
• Multi-view 4
• Card size L=281 W=117 H=53 mm
• PCB Form ATX
• DirectX 1‎2 Ultimate
• OpenGL 4.6
• Recommended PSU 500W
• Power Connectors 8 pin*1

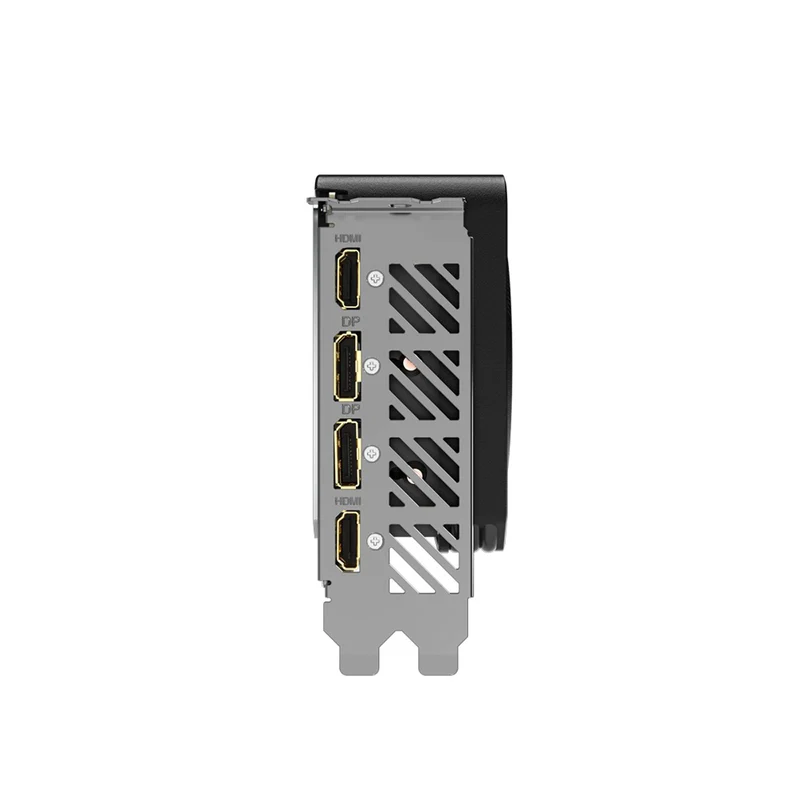

• Output DisplayPort 1.4a*2
  HDMI 2.1a*2
• Accessories Quick guide
