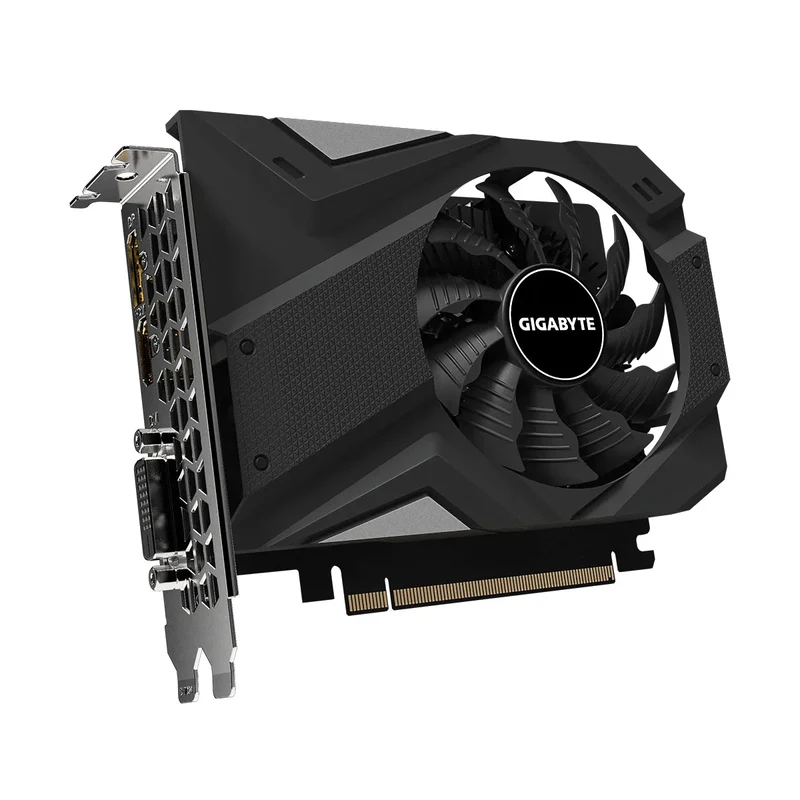

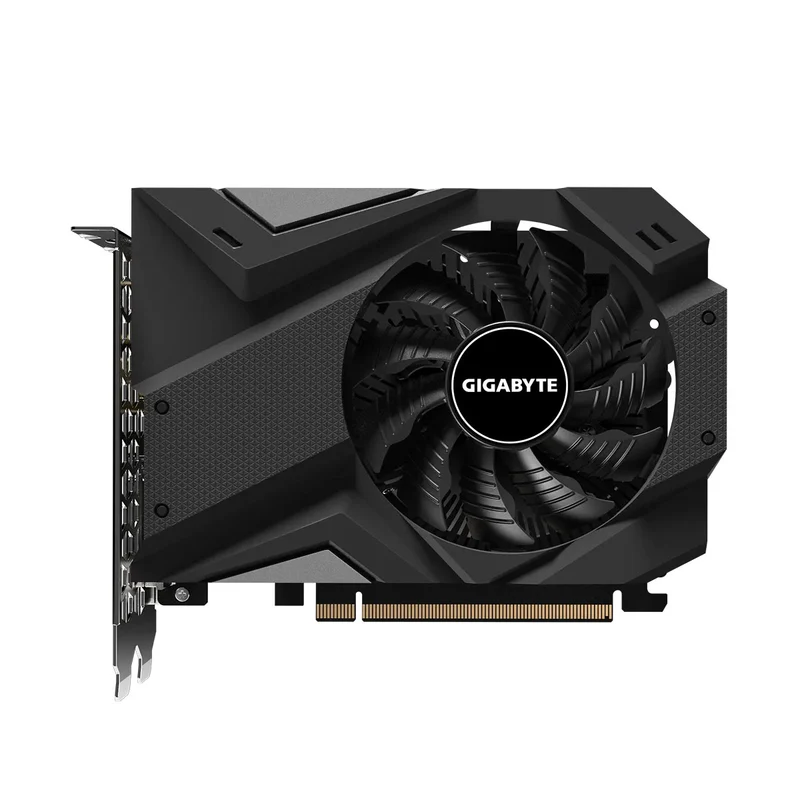

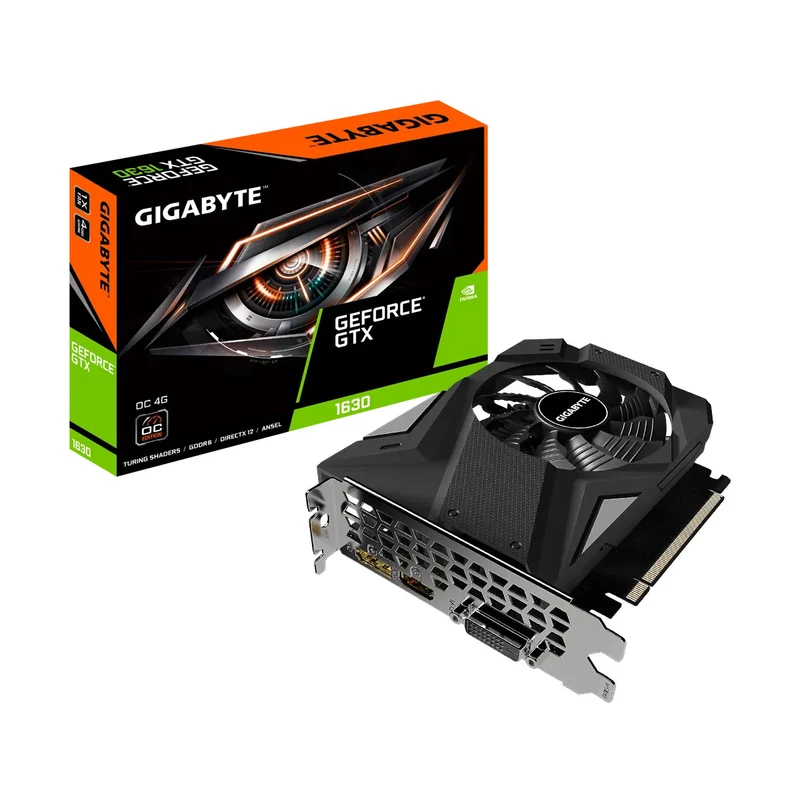

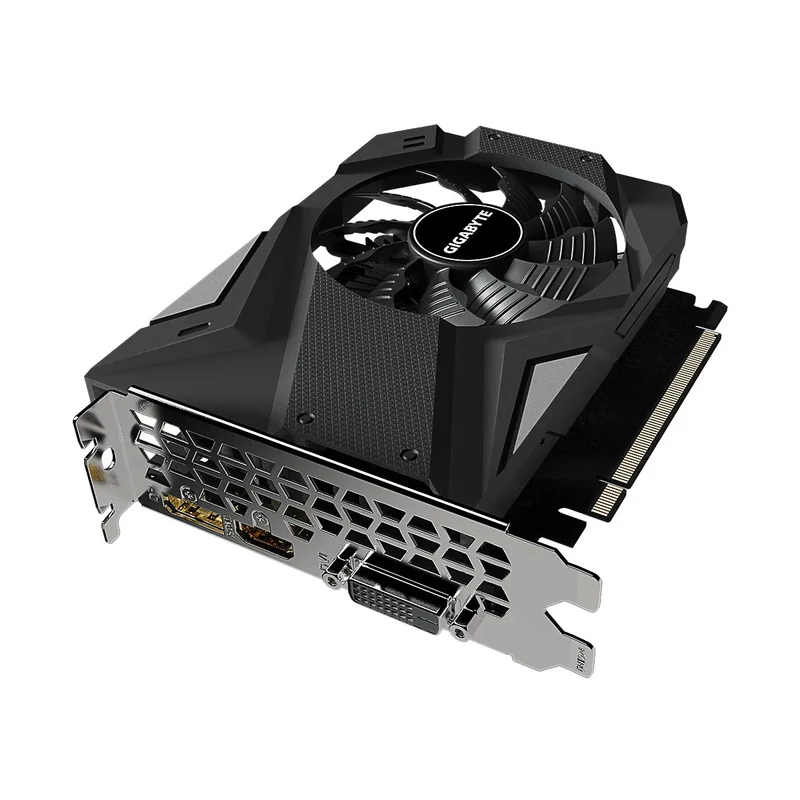

Gigabyte GeForce GTX 1630 OC 4G GDDR6 Graphics Card

Features
Powered by GeForce® GTX 1630
NVIDIA Turing™ architecture and GeForce Experience™
Integrated with 4GB GDDR6 64bit memory interface
80mm unique blade fan
Compact size

Core Clock
1815 MHz (Reference Card: 1785 MHz)

COMPACT SIZE FOR EASY INSTALLATION

With less than 170mm in length, the graphics card can be easily installed in any small chassis.

UNIQUE BLADE FAN

The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.

BUILT STRONG

ULTRA COOLING

Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.

LOW POWER LOSS

Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.

LONGER LIFE

Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.

FRIENDLY PCB DESIGN

Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

Specifications:

• Graphics Processing GeForce® GTX 1630
• Core Clock 1815 MHz (Reference Card: 1785 MHz)
• CUDA® Cores 512
• Memory Clock 12000 MHz
• Memory Size 4 GB
• Memory Type GDDR6
• Memory Bus 64 bit
• Memory Bandwidth (GB/sec) 96 GB/s
• Card Bus PCI-E 3.0 x 16
• Digital max resolution 7680x4320
• Multi-view 3
• Card size L=153 W=116 H=36 mm
• PCB Form ATX
• DirectX 12 API
• OpenGL 4.6
• Recommended PSU 300W
• Power Connectors N/A

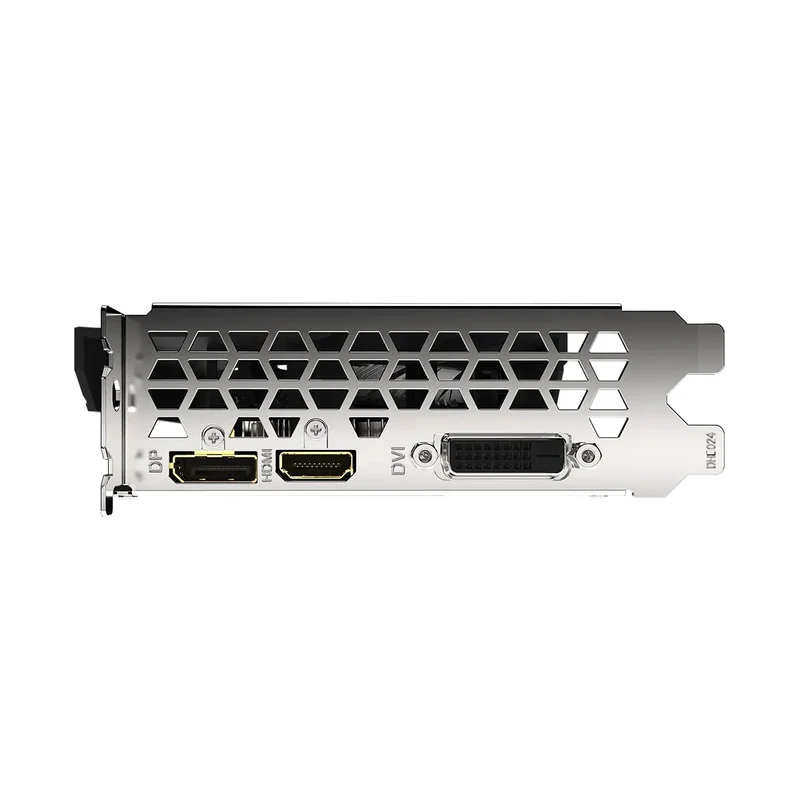

• Output DisplayPort 1.4 *1
  HDMI 2.0b *1
  DVI-D *1
• SLI Support N/A
• Accessories Quick guide
