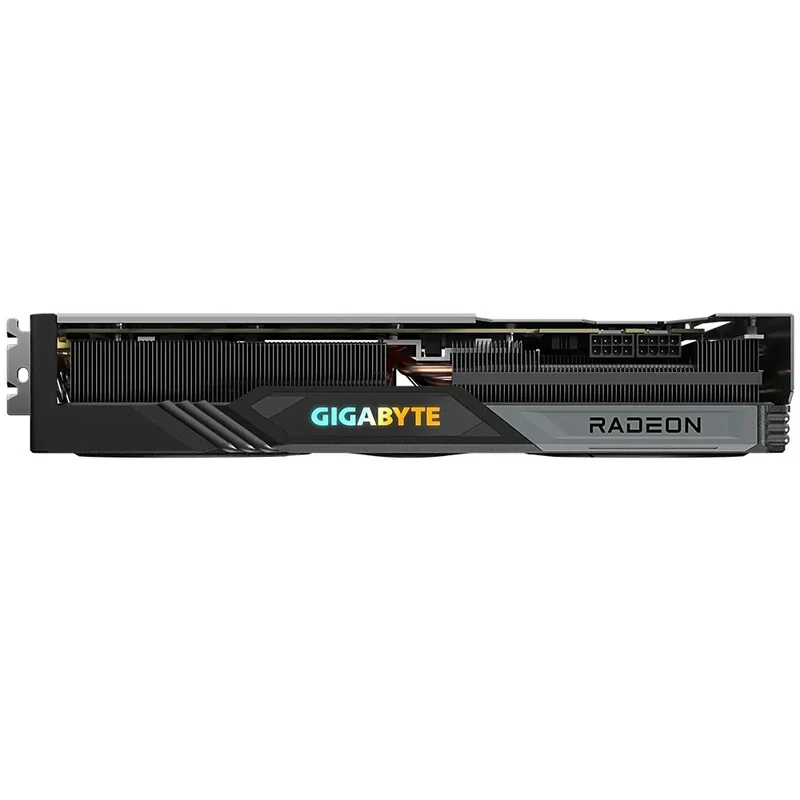

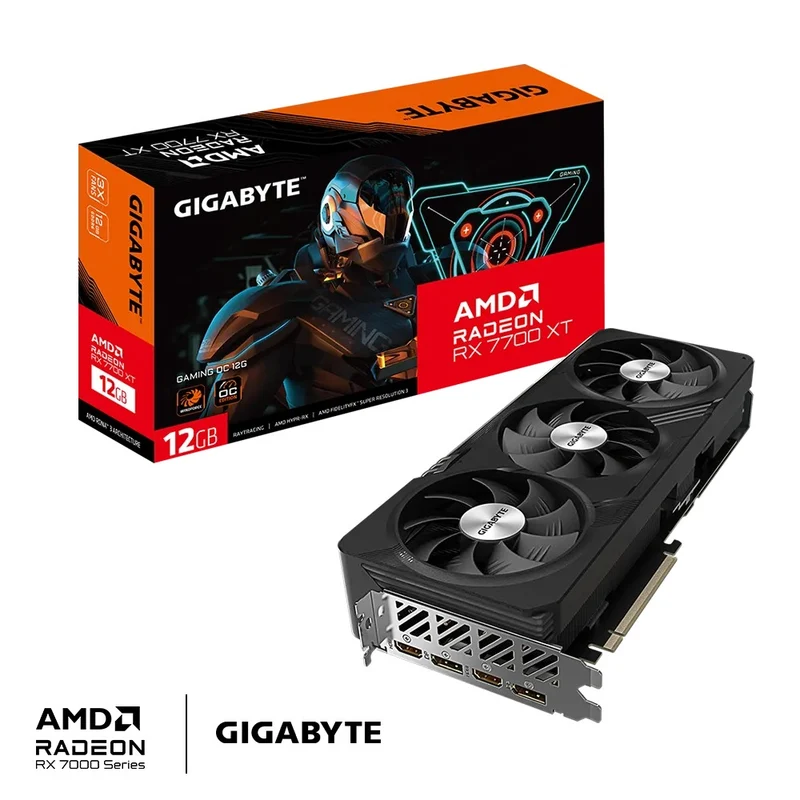

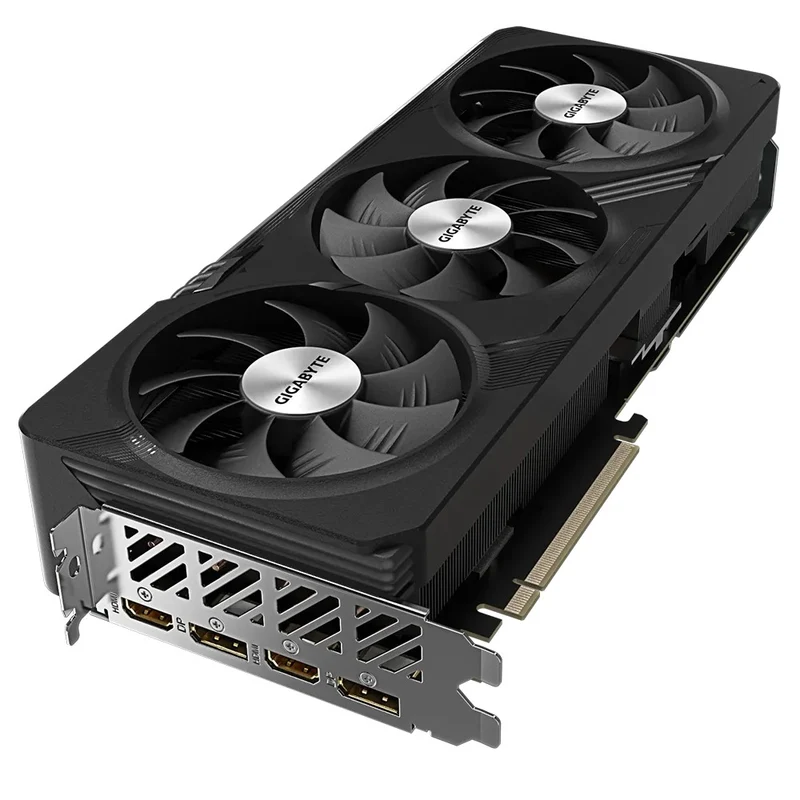

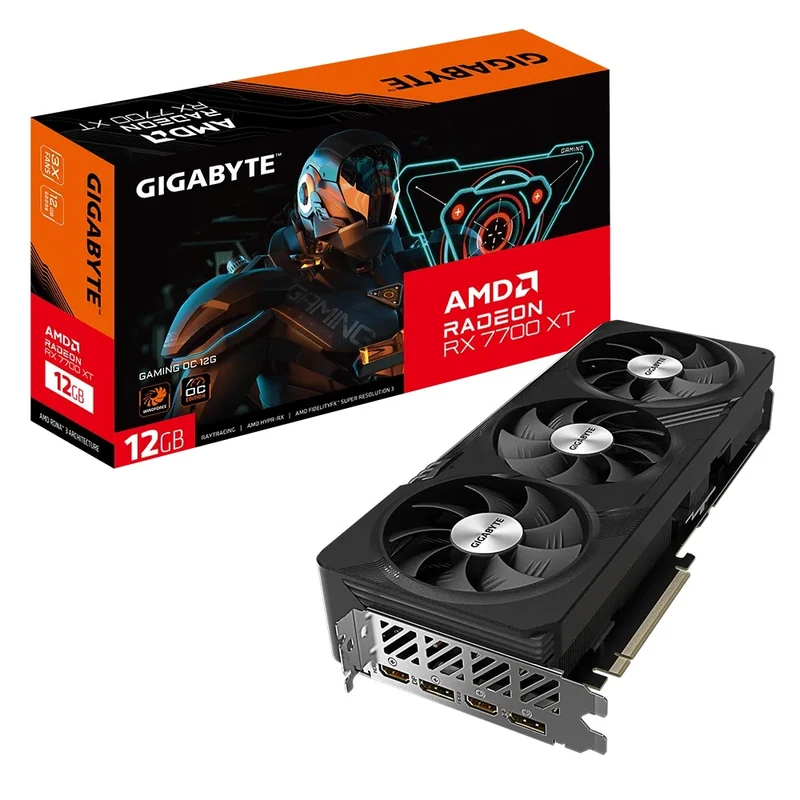

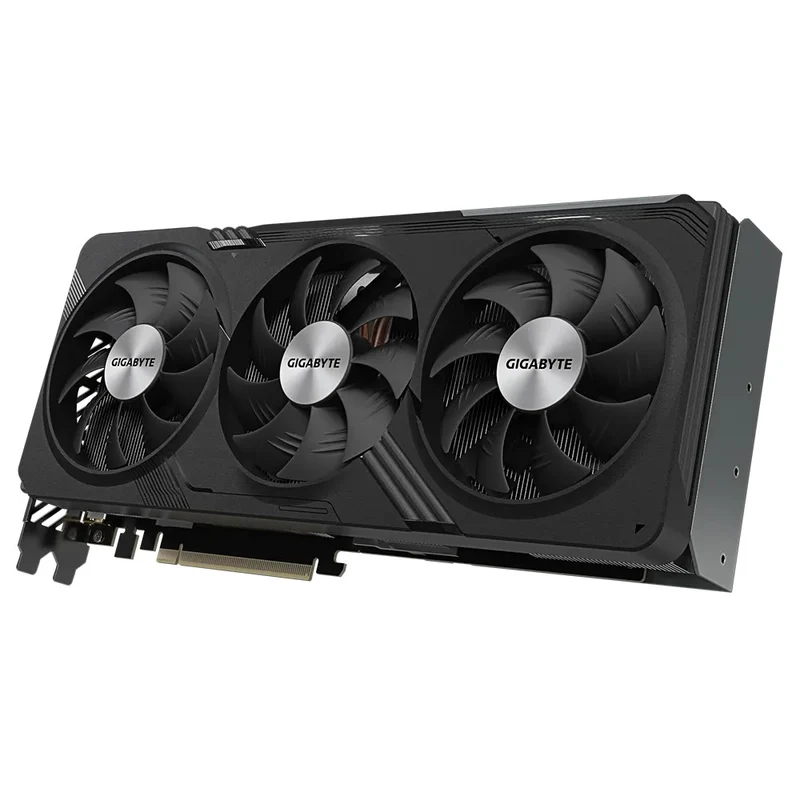

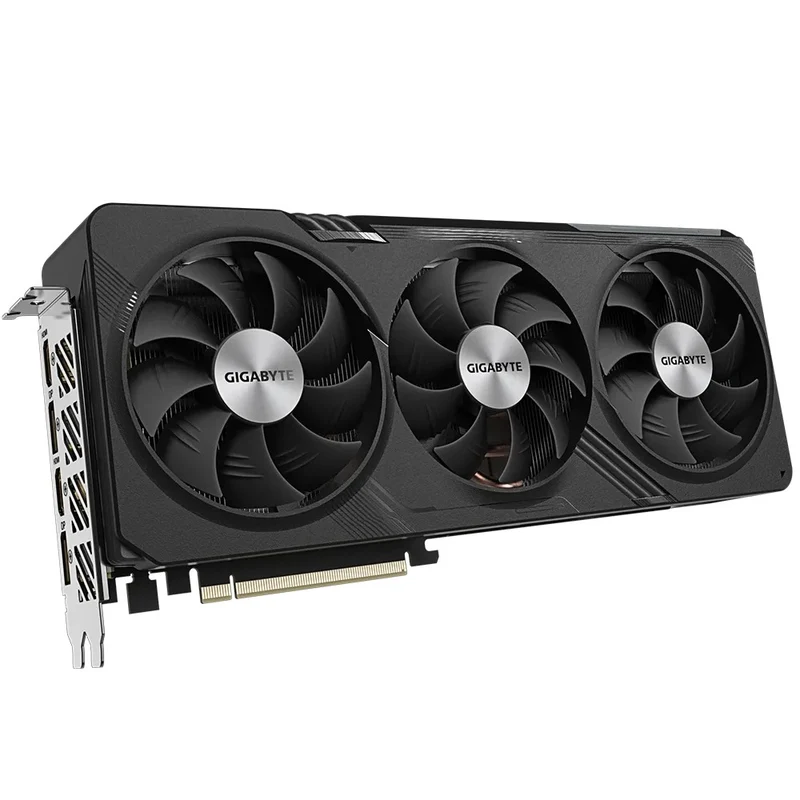

Gigabyte AMD Radeon RX 7700 XT Gaming OC 12GB GDDR6 Graphics Card

KEY FEATURE

• Powered by Radeon™ RX 7700 XT
• Integrated with 12GB GDDR6 192-bit memory interface
• WINDFORCE Cooling System
• RGB Fusion
• Dual BIOS

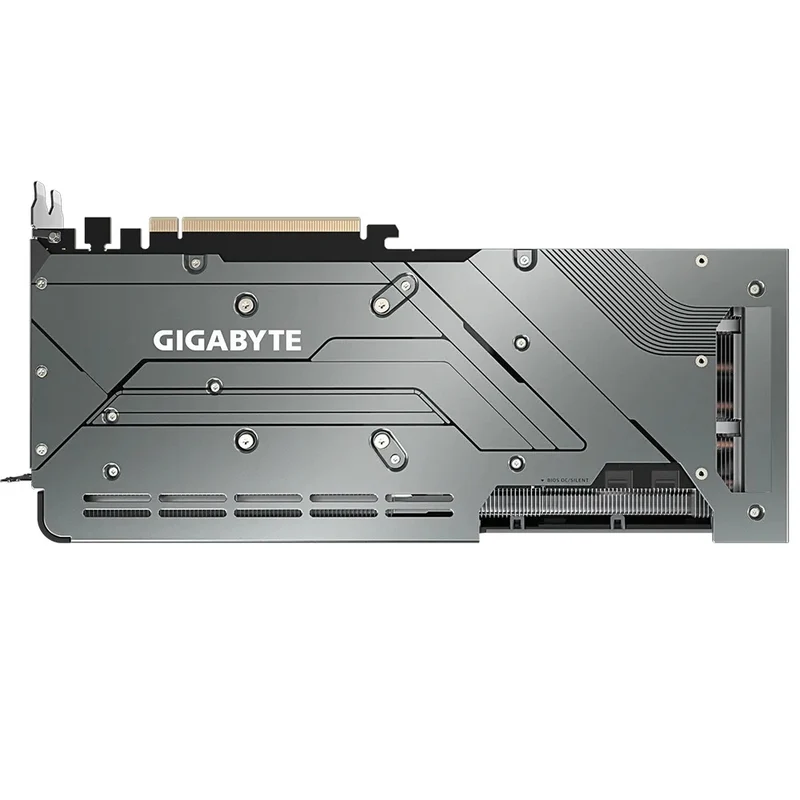

• Protection metal back plate

CORE CLOCK

Boost Clock* : up to 2599 MHz (Reference card: 2544 MHz)
Game Clock* : up to 2276 MHz (Reference card: 2171 MHz)

WINDFORCE
COOLING SYSTEM

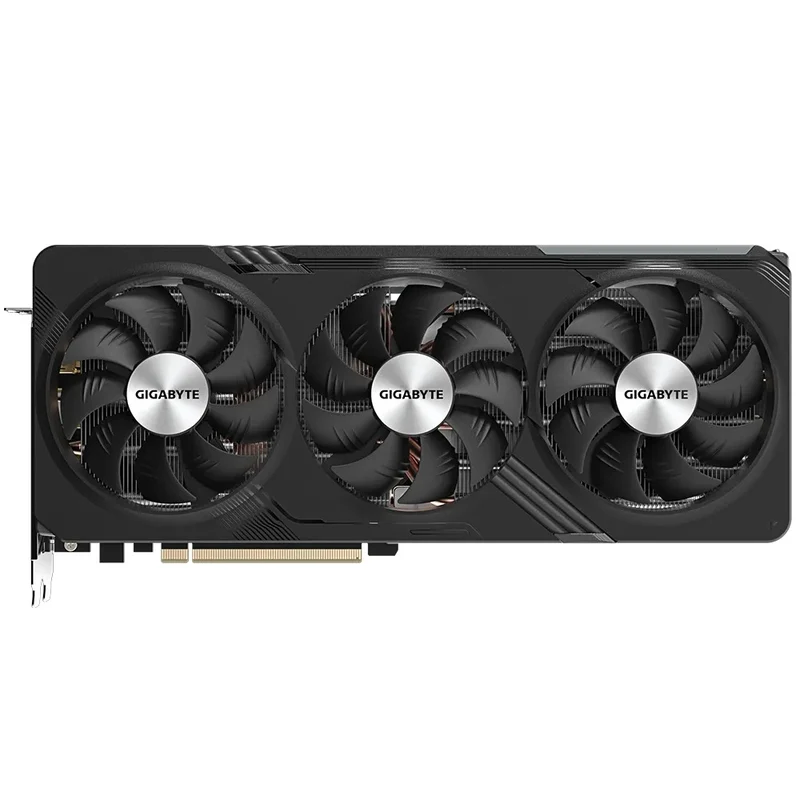

The WINDFORCE cooling system features three 90mm unique blade fans, alternate spinning, 7 composite copper heat pipes, a large copper plate directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.

LARGE COPPER PLATE & HEAT-PIPE

The large copper plate directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.

SCREEN COOLING

Extended heatsink allows air to pass through, providing better heat dissipation.

SPECIFICATIONS:

Graphics Processing	Radeon™ RX 7700 XT
Core Clock	Boost Clock* : up to 2599 MHz (Reference card: 2544 MHz) Game Clock* : up to 2276 MHz (Reference card: 2171 MHz)
Stream Processors	3456
Memory Clock	18 Gbps
Memory Size	12 GB
Memory Type	GDDR6
Memory Bus	192 bit
Card Bus	PCI-E 4.0
Digital max resolution	7680x4320
Multi-view	4
Card size	L=302 W=130 H=56 mm
PCB Form	ATX
DirectX	12 Ultimate
OpenGL	4.6
Recommended PSU	700W
Power Connectors	8 Pin*2

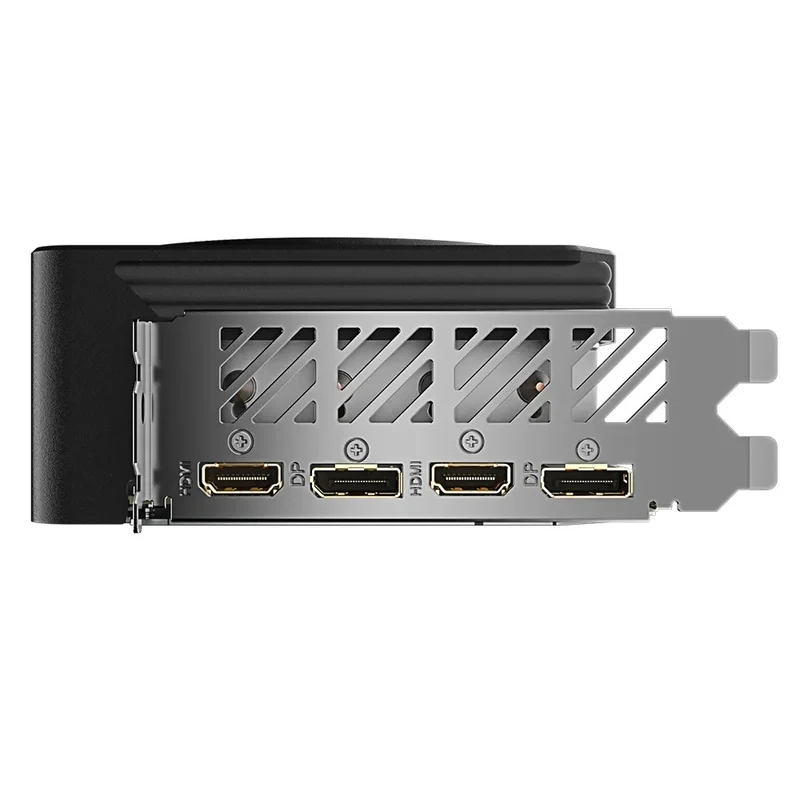

Output	DisplayPort 2.1 *2 HDMI 2.1 *2
Accessories	Quick guide
Note	* “Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.GD-151 * “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. GD-147
