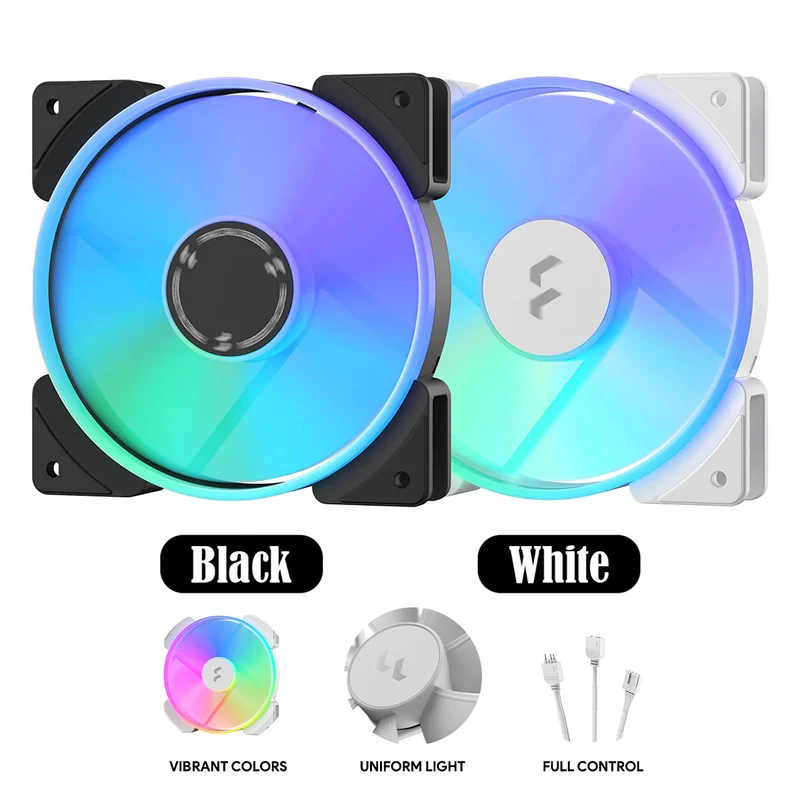

Fractal Design Prisma AL-12 PWM ARGB Computer Fan (Black, White) (FD-FAN-PRI-AL12-PWM, FD-FAN-PRI-AL12-PWM-WT)

7,17 €14,12 €49% OFF
Fan Color: Black (FD-FAN-PRI-AL12-PWM)
Menge

Beschreibung

Prisma AL-12 PWM

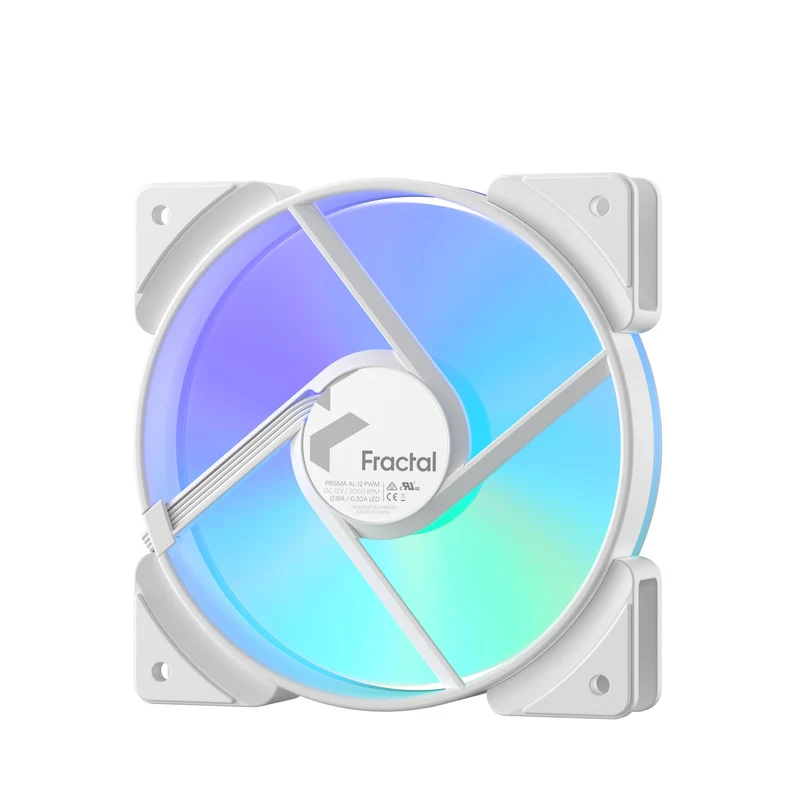

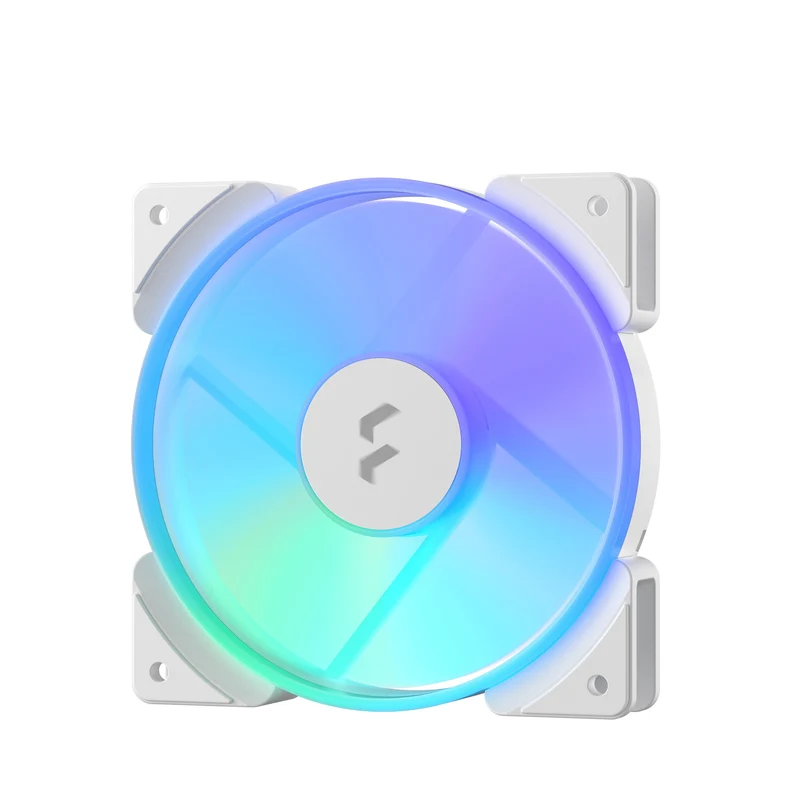

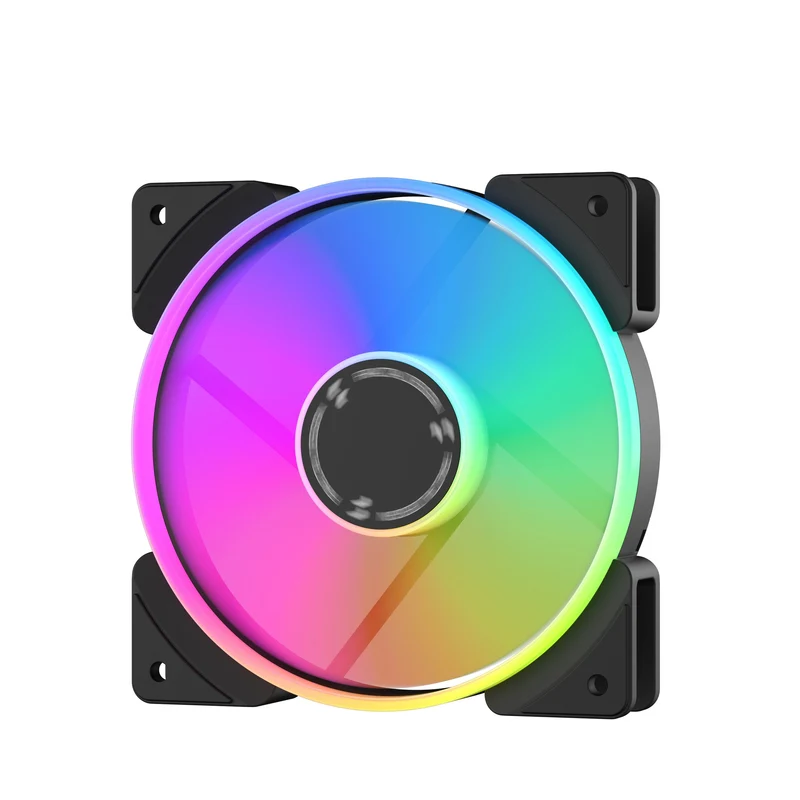

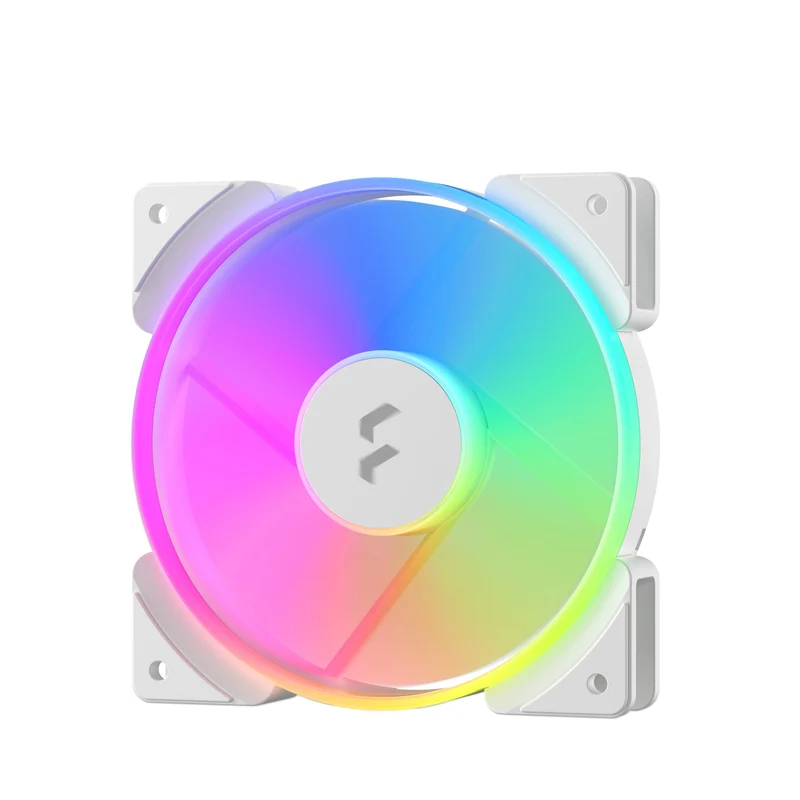

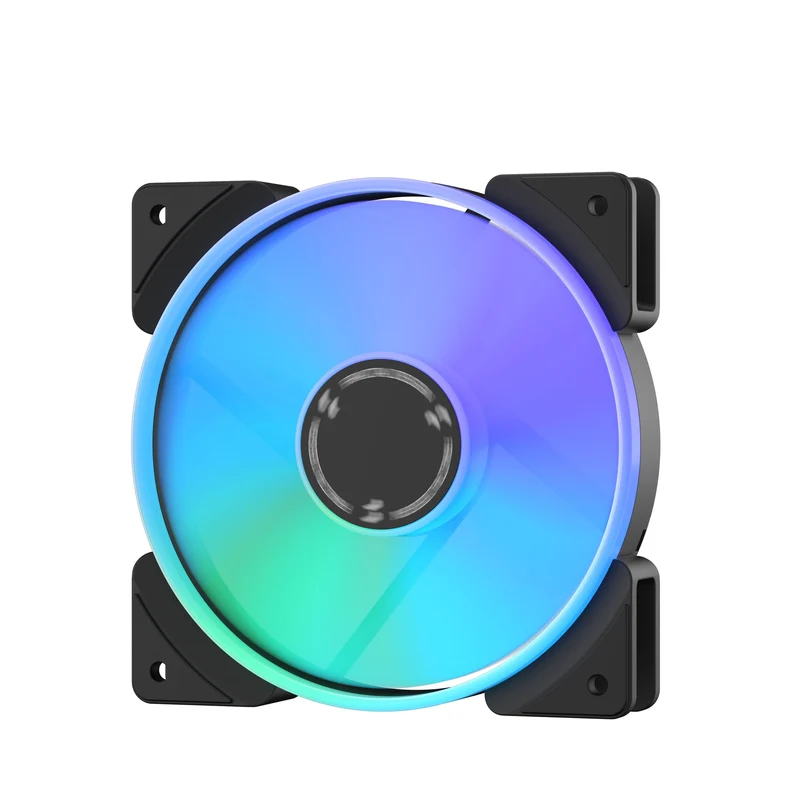

Our Prisma AL Series ARGB fans allow your system to truly shine. Six hub-mounted addressable RGB LEDs work in harmony with a white semi-opaque outer ring and fan blades to produce a beautifully uniform glow across the fan’s entire surface.

  • Six individually addressable hub-mounted RGB LEDs

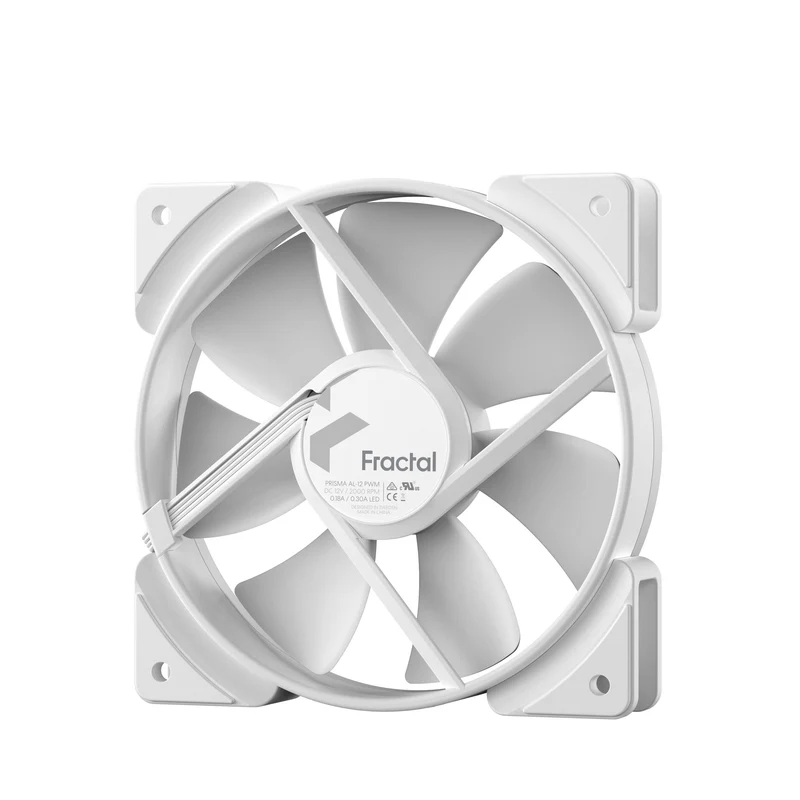

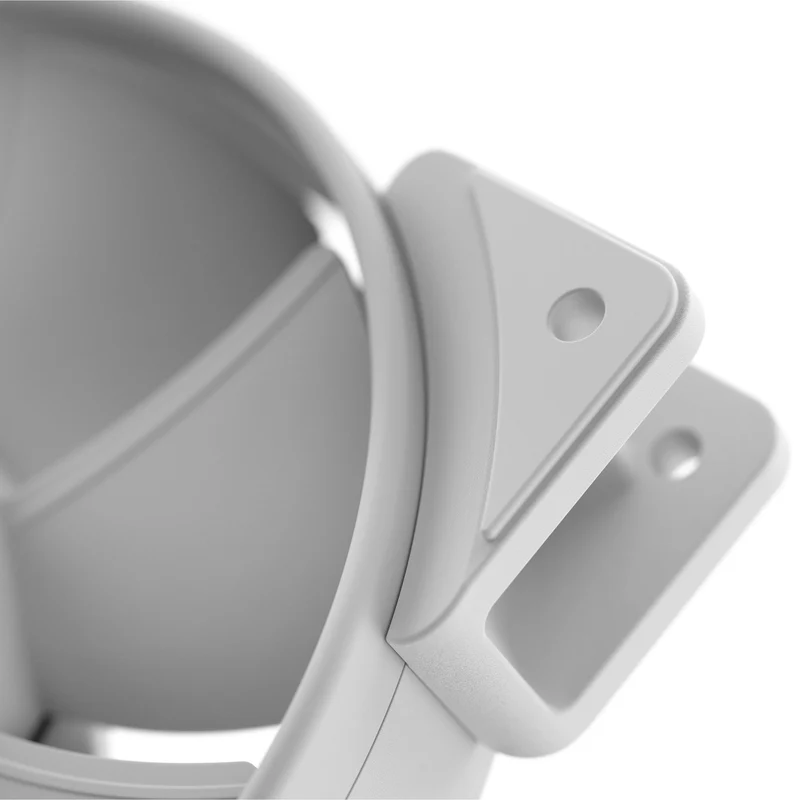

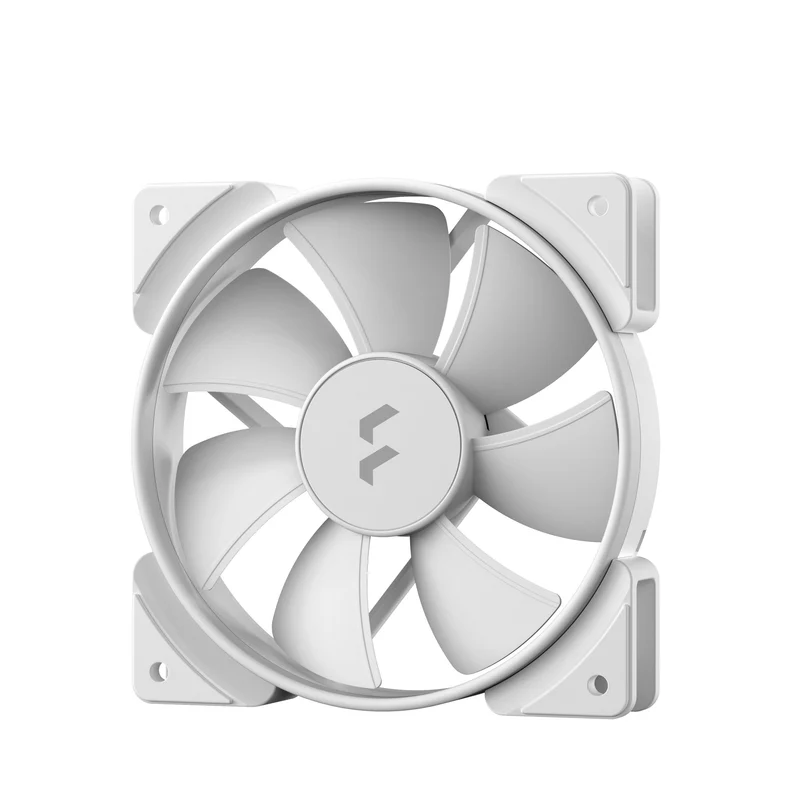

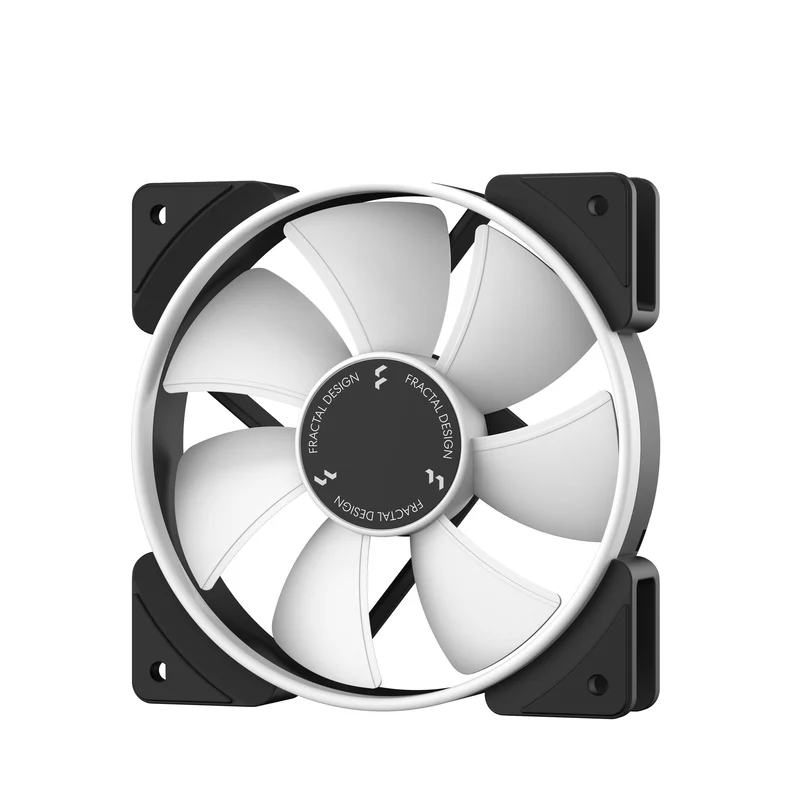

  • Specially designed fan blades and outer ring
  • Long Life Sleeve-bearings provide silent operation with a long lifespan

Specification:

General Specifications

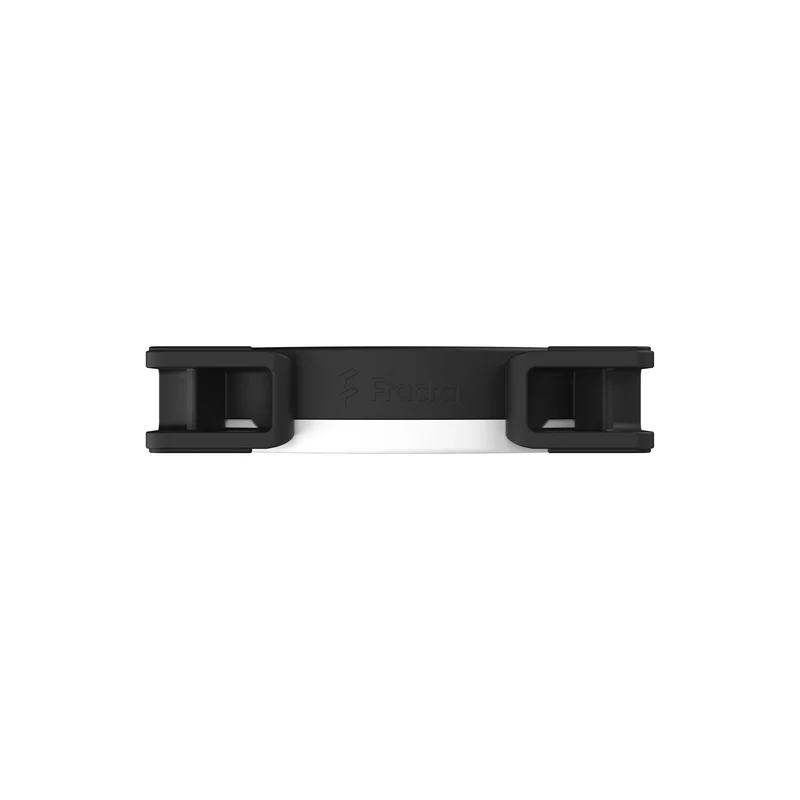

  • Size 120 x 120 x 25 mm
  • Screw hole pattern 105 x 105 mm

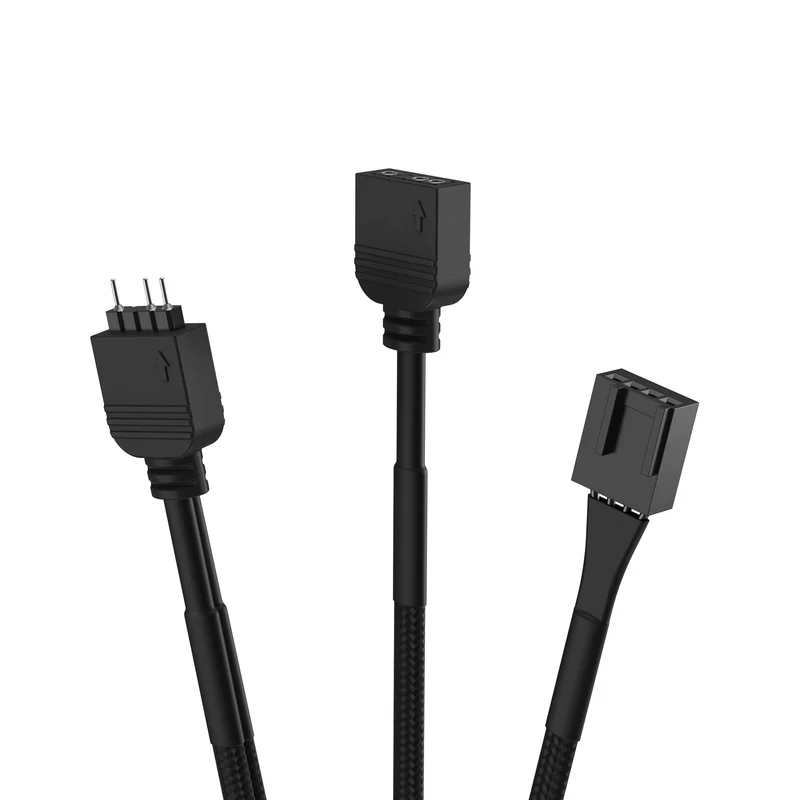

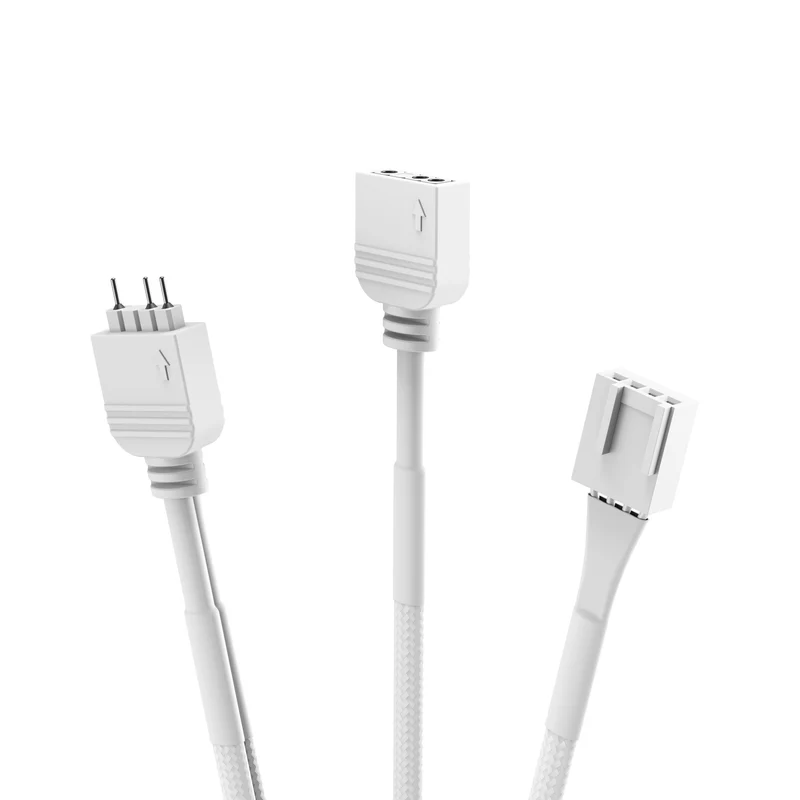

  • Fan connector 4-pin PWM
  • RGB connector 3-pin 5V addressable RGB
  • Bearing LLS
  • Number of blades 7
  • Rotational speed 500 – 2000 RPM
  • Noise level 32.7 dB(A)
  • Airflow (CFM) 85.71 CFM
  • Airflow (m3/h) 145.62 m3/h
  • Static pressure 2.78 mmH2O
  • Fan input power 2.16 W
  • Fan max input current 0.18 A
  • Fan input voltage 12 V
  • Fan starting voltage 7 V
  • LED input power 1.50 W
  • LED max input current 0.30 A
  • LED input voltage 5 V
  • Low (0-20%) PWM speed 500 RPM
  • Low PWM noise level 14.8 dB(A)
  • Low PWM airflow 20.68 CFM
  • Low PWM static pressure 0.36 mmH2O
  • MTBF 100,000 hours
  • Fan weight 169 g
  • Cable length 500 mm
  • Cable type Black sleeved

Other
  • Package contents Prisma AL-12 PWM 140 mm fan, 4 x fan screws
  • Package weight 212 g
  • Package dimensions (Including hanging tab) 182 x 122 x 30 mm
  • Package dimensions (Excluding hanging tab) 147 x 122 x 30 mm
