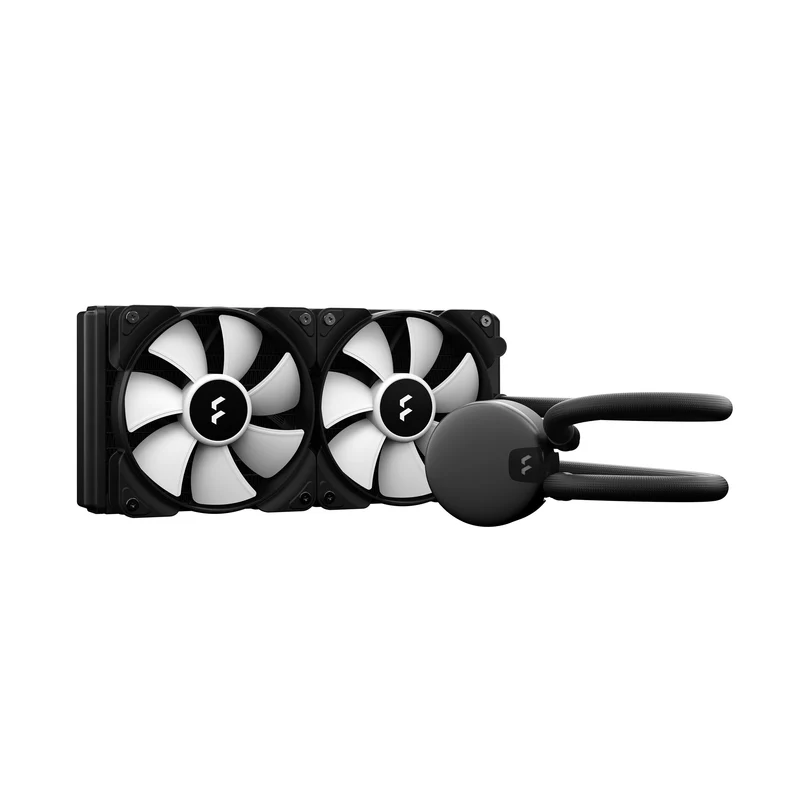

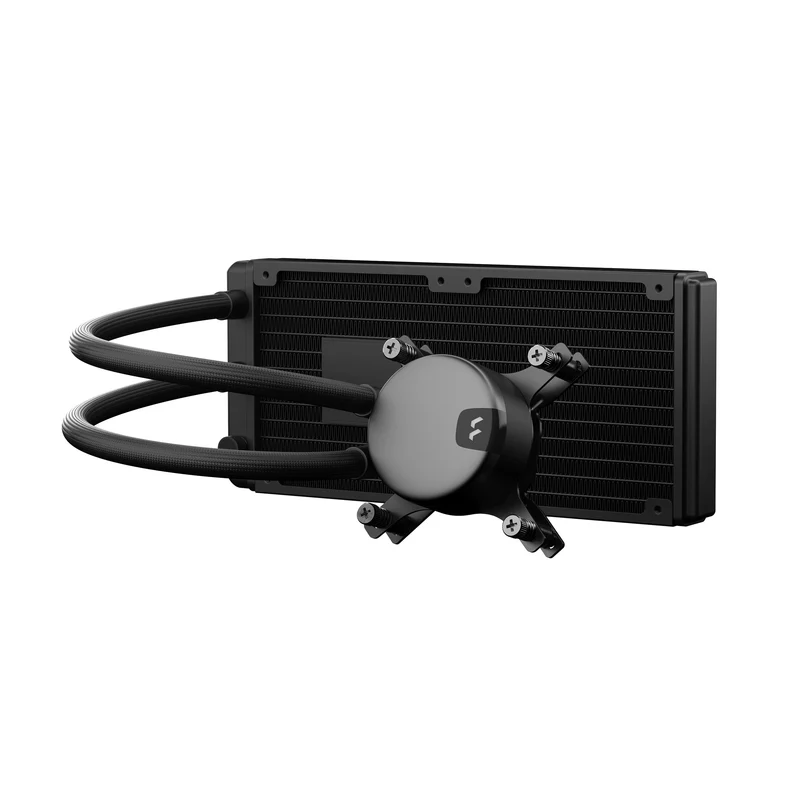

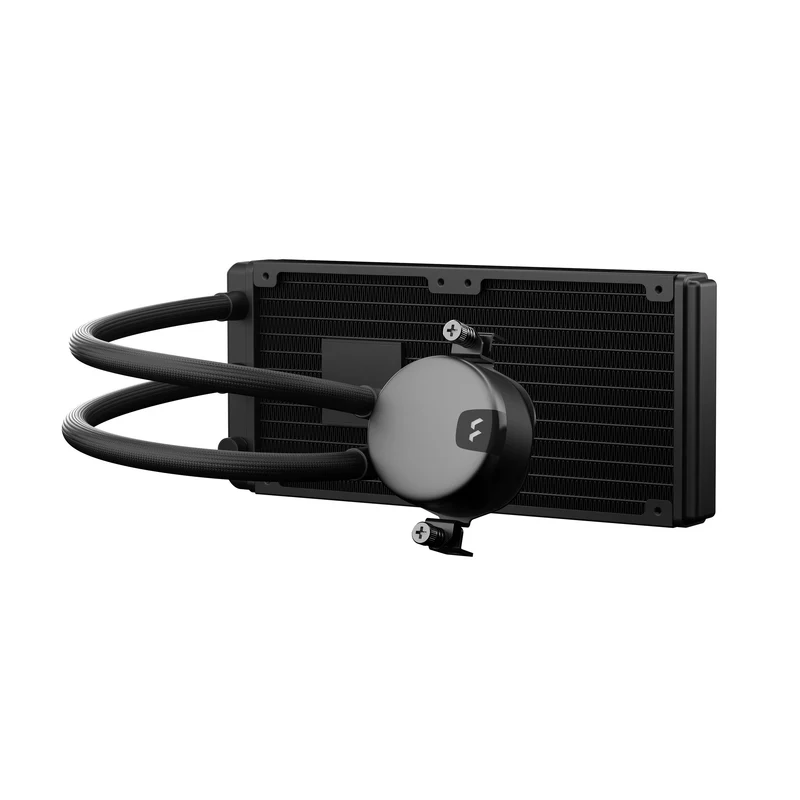

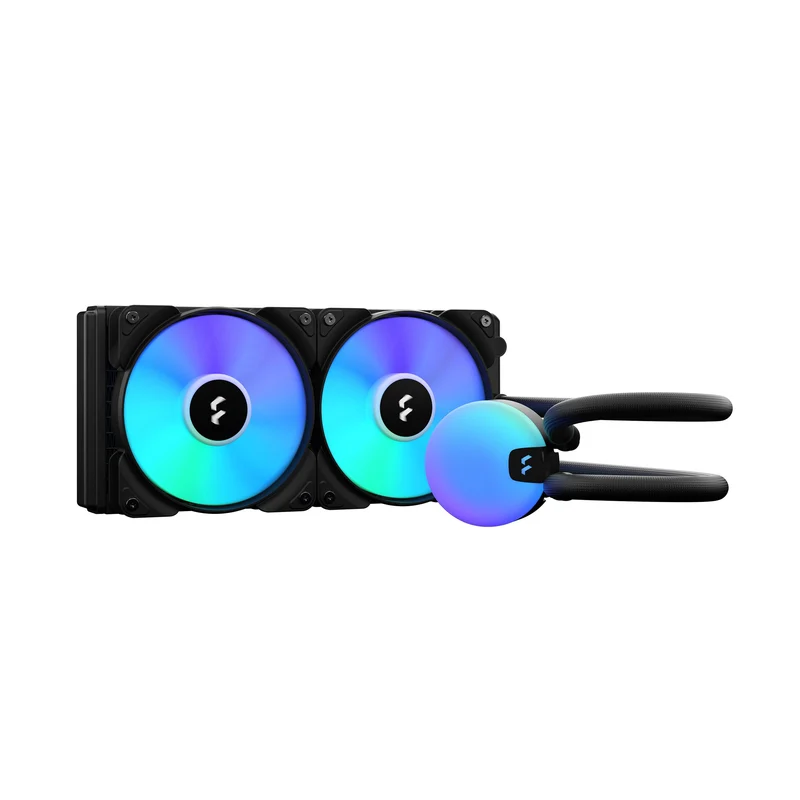

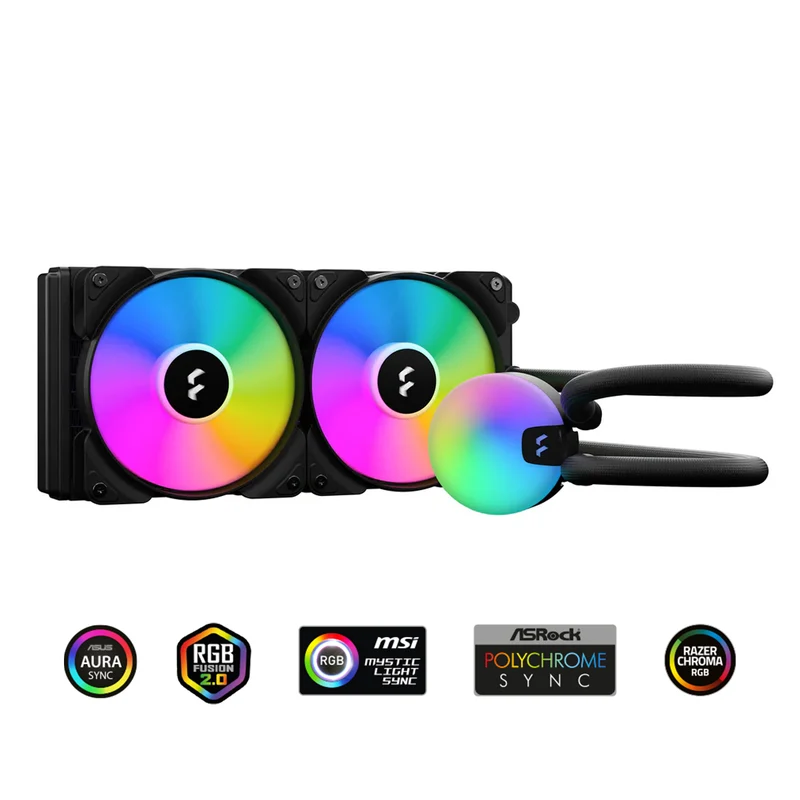

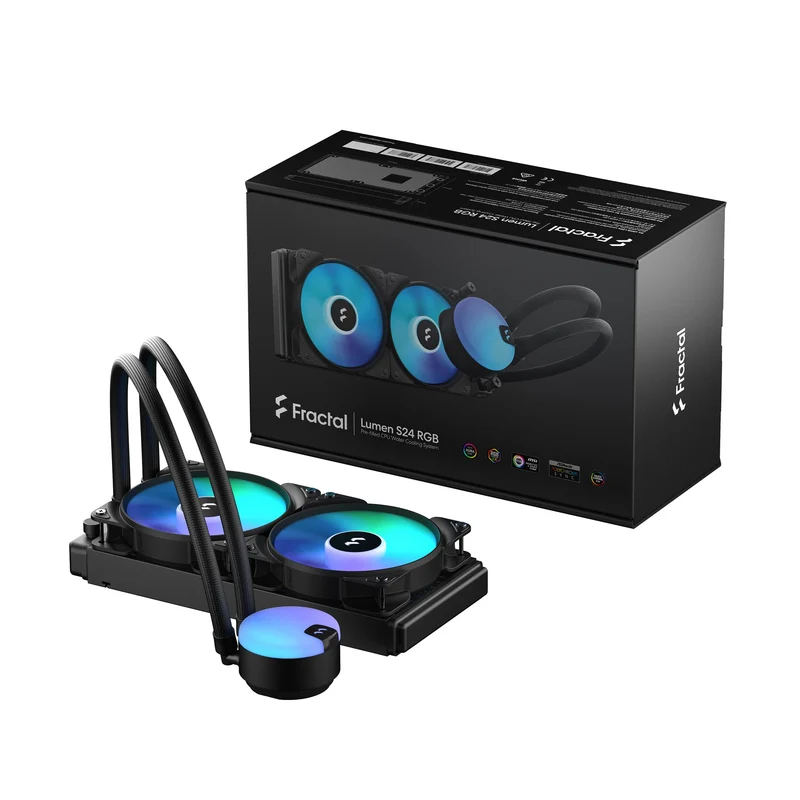

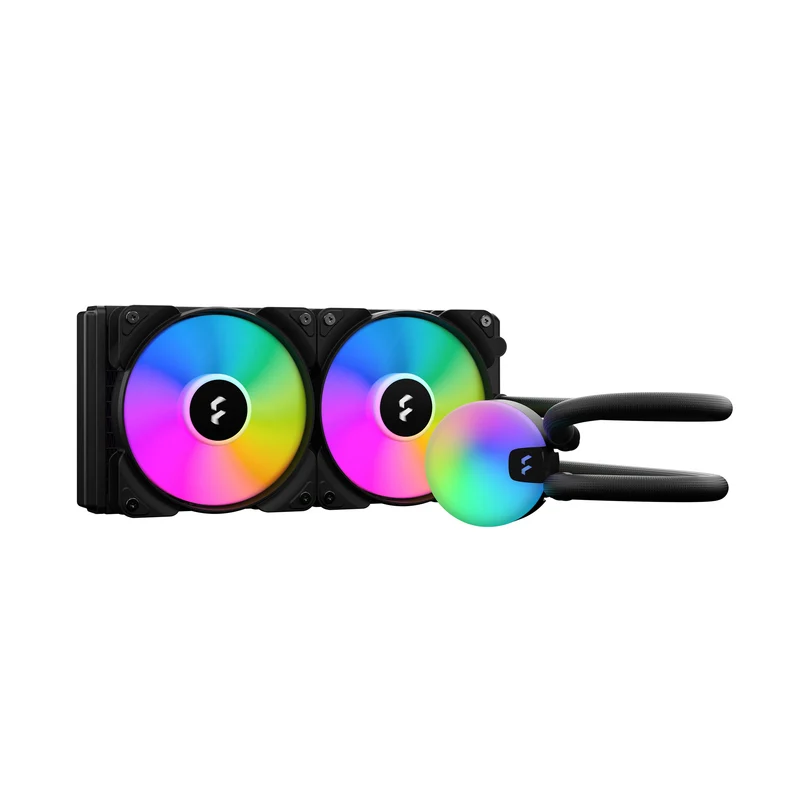

Fractal Design Lumen S24 RGB V2 Pre-filled CPU Water Cooling System (FD-W-L1-S2412)

64,85 €106,36 €39% OFF
Menge

Beschreibung

Lumen S24 RGB V2

Customize your CPU water-cooling from subtle to stunning with Lumen’s six addressable LEDs that you can command via motherboard or controller. Compatible with most common Intel/AMD sockets, including LGA 1851 / 1700 and AM5 and RGB certified by industry standards, the Lumen offers high-end cooling performance and premium ARGB effects for new and seasoned builders alike.

  • Duality design provides both a stealthy and illuminated look, controlled from your motherboard RGB UI
  • Six ARGB LEDs are yours to command via your motherboard or controller
  • The removable top can be turned at 90-degree intervals, making the logotype horizontal independent of the mounting orientation
  • Compatible with LGA 1851 / 1700 and AM5

The right way up

  • The removable top can be turned at 90-degree intervals, making the logotype horizontal independent of the mounting orientation

  • Low-permeability rubber tubes with braided nylon sleeves





From subtle to stunning

  • Duality design provides both a stealthy and illuminated look, controlled from your motherboard RGB UI

  • Six ARGB LEDs are yours to command via your motherboard or controller

Forget the thermal paste

  • Thermal paste is pre-applied to ensure a proper and pain-free installation

  • Articulating elbow fittings make tubes easier to route and reduces tension on the cold plate housing




Common denominators

  • Compatible with LGA 1700 and AM5

  • Supports the most common sockets for both Intel and AMD

Specification:

General specifications
  • Sockets supported (Intel) LGA 1700*/ 1851*/1150/1151/1155/1156/1200 LGA 1366/2011/2011-3/2066
  • Sockets supported (AMD) AM5 / AM4/FM2+/FM2/ FM1/AM3+/AM3/AM2+/AM2
  • * Compatible using updated LGA 1700 bracket, contact Fractal support to request one if using an older version
  • Cold plate material Copper
  • Thermal paste Pre-applied
  • Tube length 400mm
  • Tube material Low-permeability rubber with braided nylon sleeve
  • Fittings, block side Articulating 90-degree Elbow
  • Fittings, radiator side Barbed fitting
  • Block height 43mm
  • Block measurements (with fittings) 79 x 67 mm
  • Block diameter (main block body) 67 mm

Fan specifications
  • Fan type Aspect 12 RGB PWM
  • Rotational speed 500–2000 RPM
  • Fan bearing Rifle bearings
  • Fan PWM control Yes
  • Fan acoustical noise <10–33.2 dBA
  • Fan maximum air flow 13-56 CFM
  • Fan maximum static pressure 0.230–2.34 mm H2O
  • Fan input voltage 12V
  • Fan maximum input current 0.37A
  • Fan MTTF 90,000 hours

Pump specifications
  • Rotational speed 4000 ± 10% RPM
  • Bearing type Ceramic
  • PWM control No
  • Acoustical noise (full speed) 22 dBA
  • Maximum pressure 1.8 mm H2O/ 17.6 kPa / 2.5 PSI
  • Input voltage 12V DC
  • Input current (without fans) 0.34 A
  • MTTF 50 000 hours

Radiator specifications
  • Radiator dimensions 272 x 120 x 27 mm
  • Radiator housing material Aluminum
  • Radiator fin material Aluminum
  • Radiator fan screw threads 6-32

Other

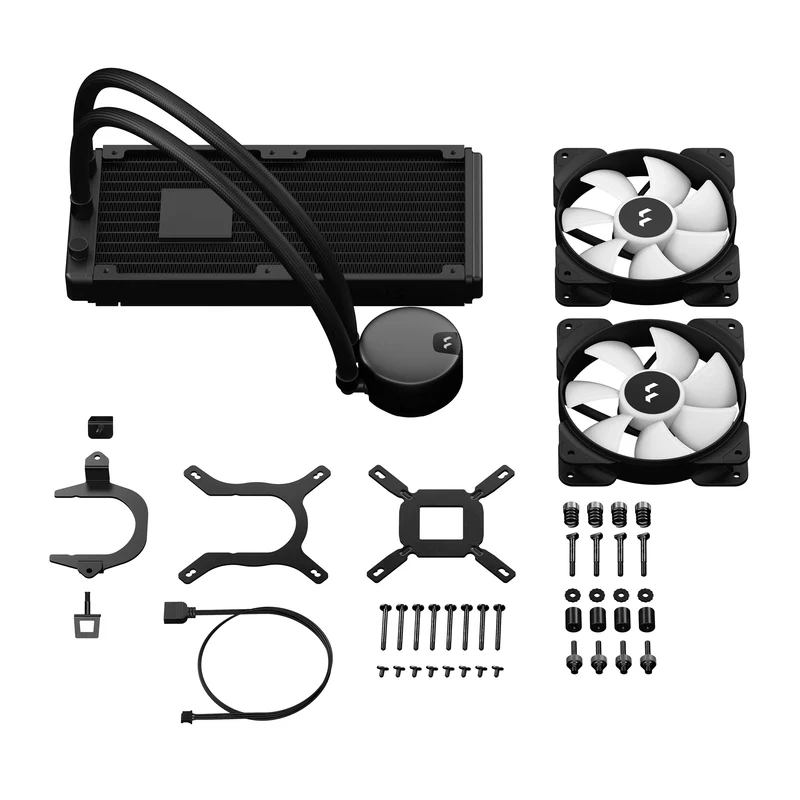

  • Package contents CPU Cooler Assembly, 2x Aspect 12 RGB fans, User manual, Intel mounting kit, AMD mounting kit, 5V ARGB cable
  • Package dimensions 332 x 205 x 137 mm
  • Package weight 1.77kg
  • Product Code FD-W-L1-S2412
