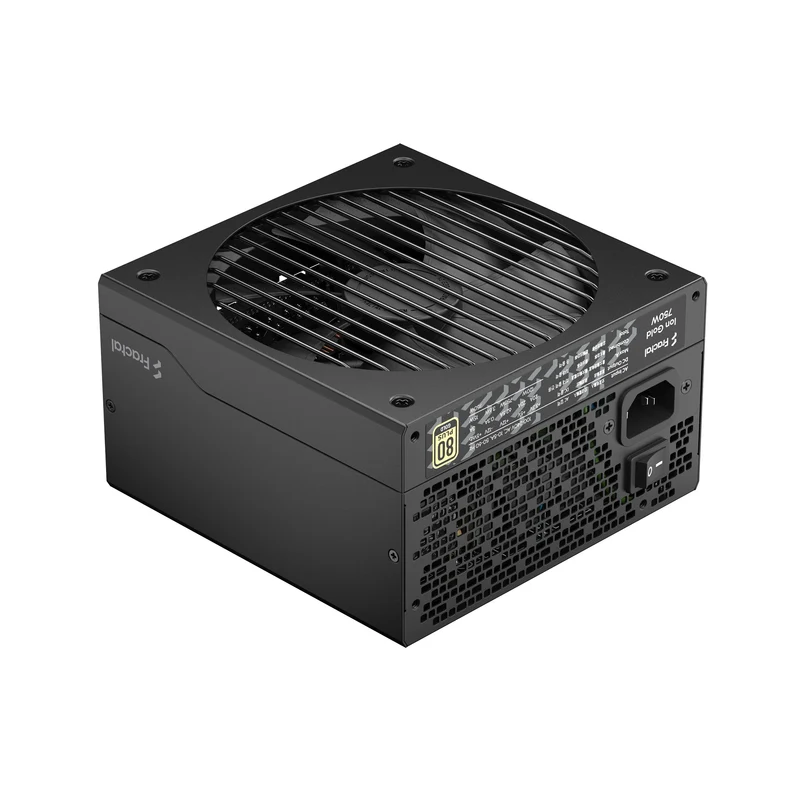

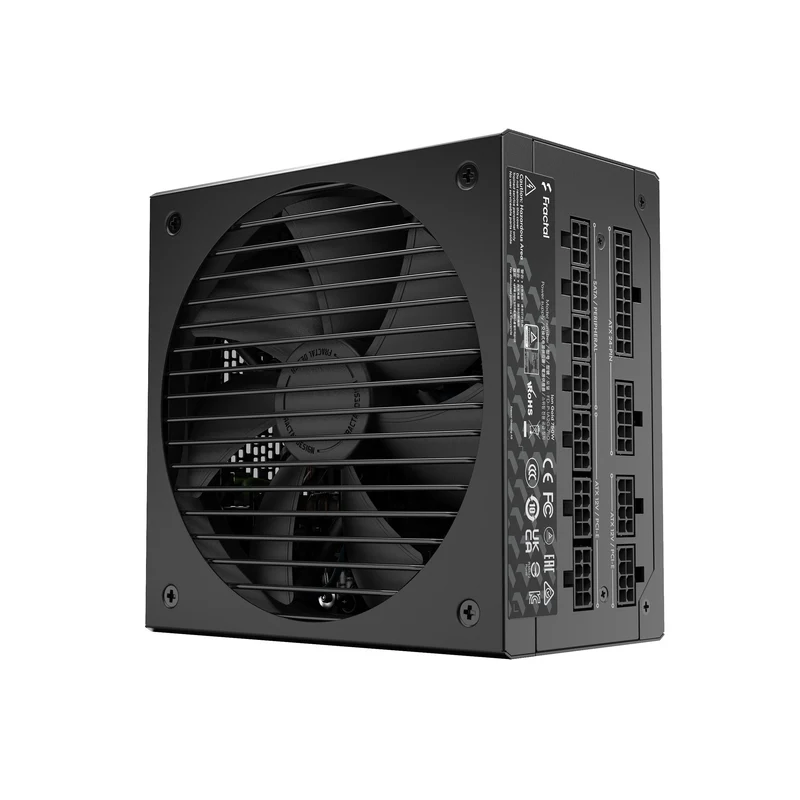

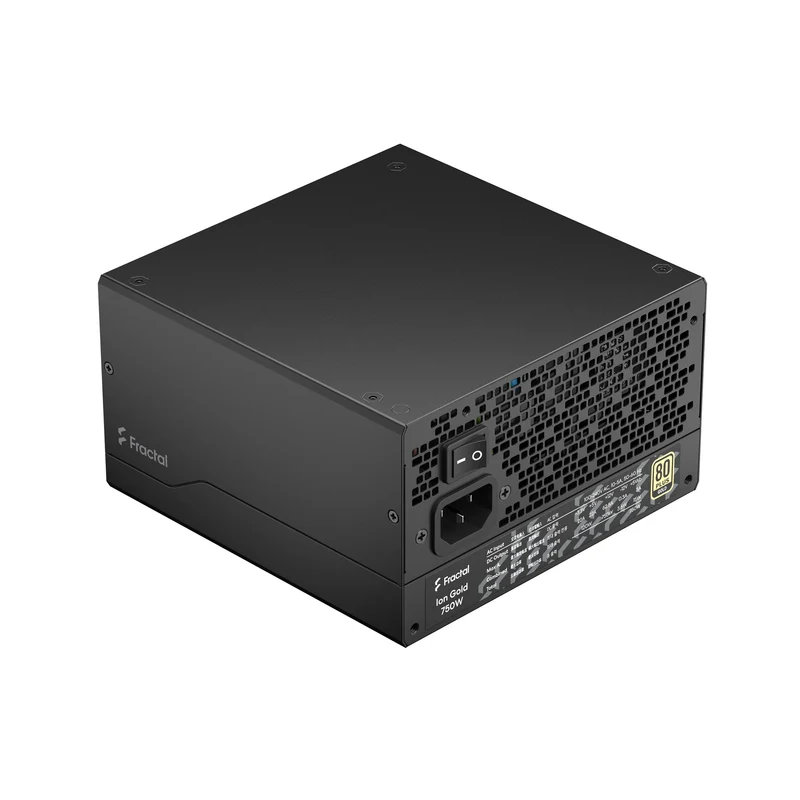

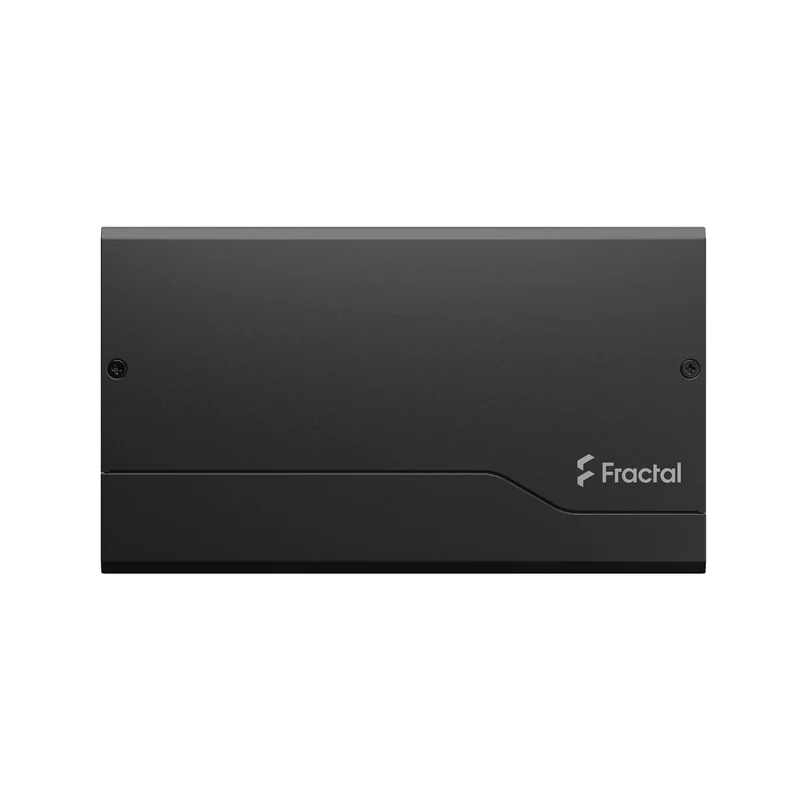

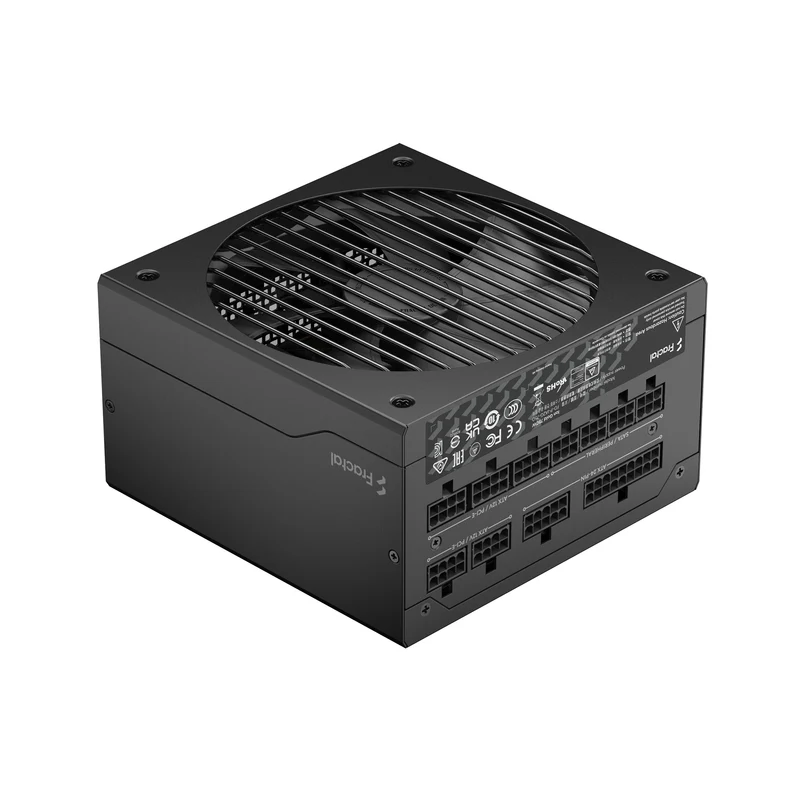

Fractal Design Ion Gold 750W Fully Modular Power Supply (FD-P-IA2G-750)

65,63 €99,27 €33% OFF
Menge

Beschreibung

Ion Gold 750W

The Ion Gold ATX is a high-performance power supply, featuring great electrical performance, quiet operation and a big 140 mm Dynamic series fan. Tailored specifically for anyone looking for a high-quality power supply at a competitive price, the Ion Gold comes packed with capability.

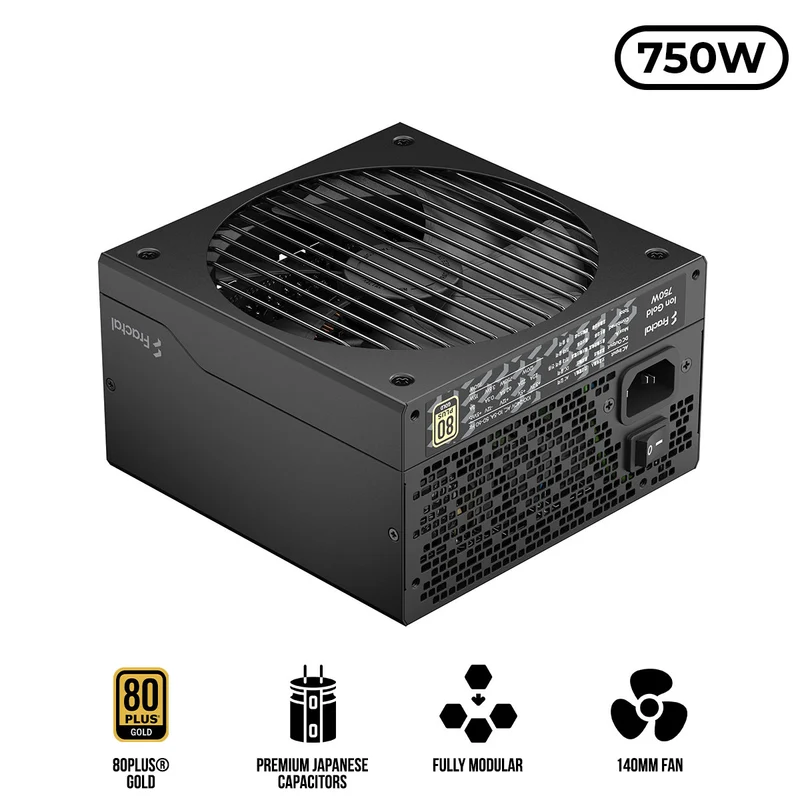

  • 80PLUS® Gold Efficiency rating for reduced noise and energy consumption
  • Premium Japanese 105°C capacitor(s) on the primary side for superior reliability and durability
  • Fully modular design for reduced clutter and maximum ease of installation

Specification:

General Specification
  • 80PLUS® certification Gold
  • Modular cables Fully modular

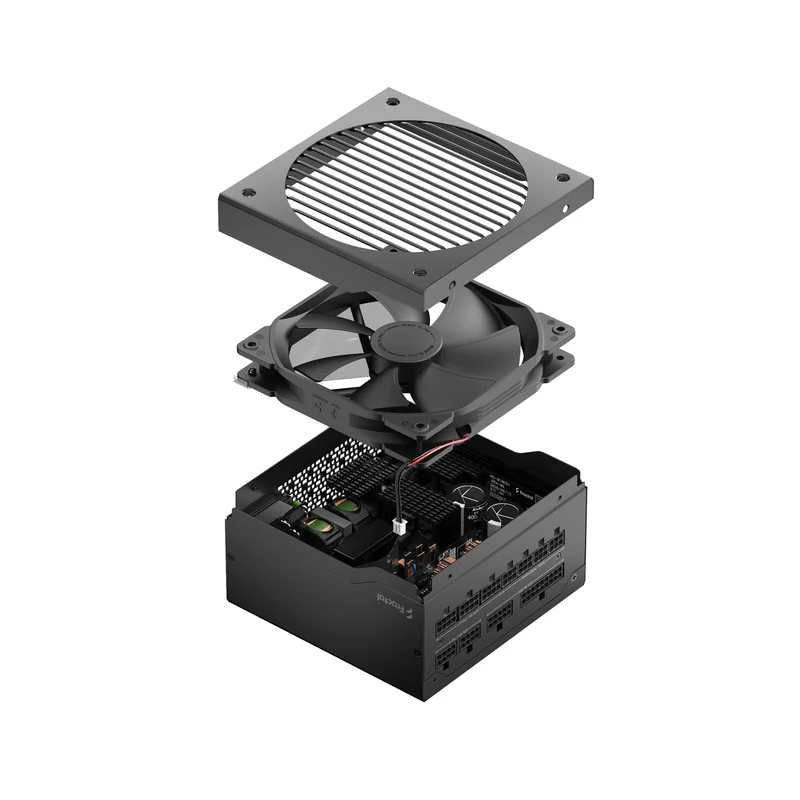

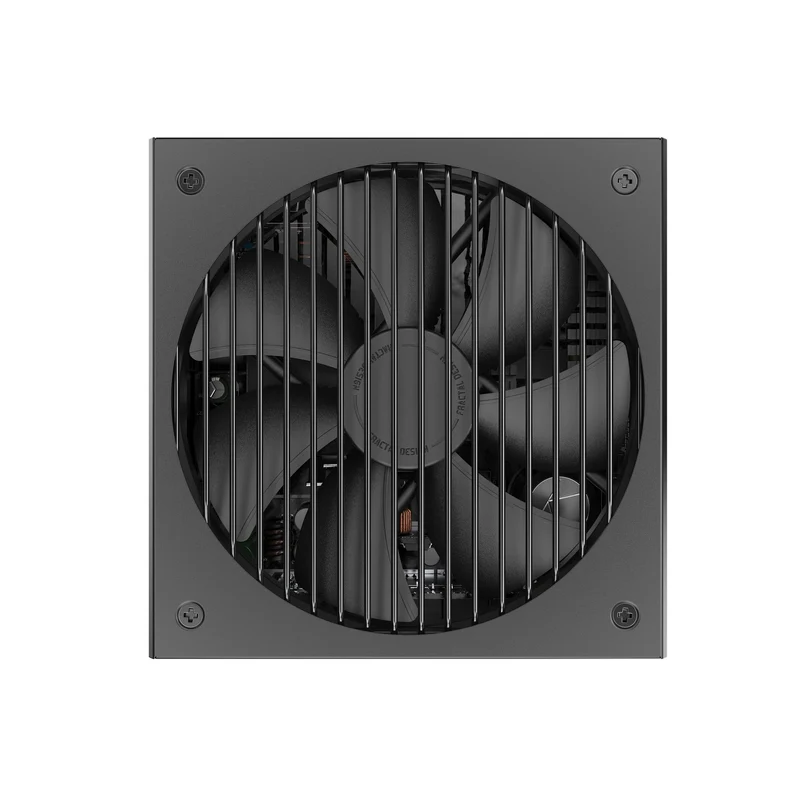

  • Fan type 140 mm LLS bearing Fractal Design Dynamic series fan
  • Maximum operating temperature (full load) 40°C, 50°C at 80% load
  • Semi-passive operation No

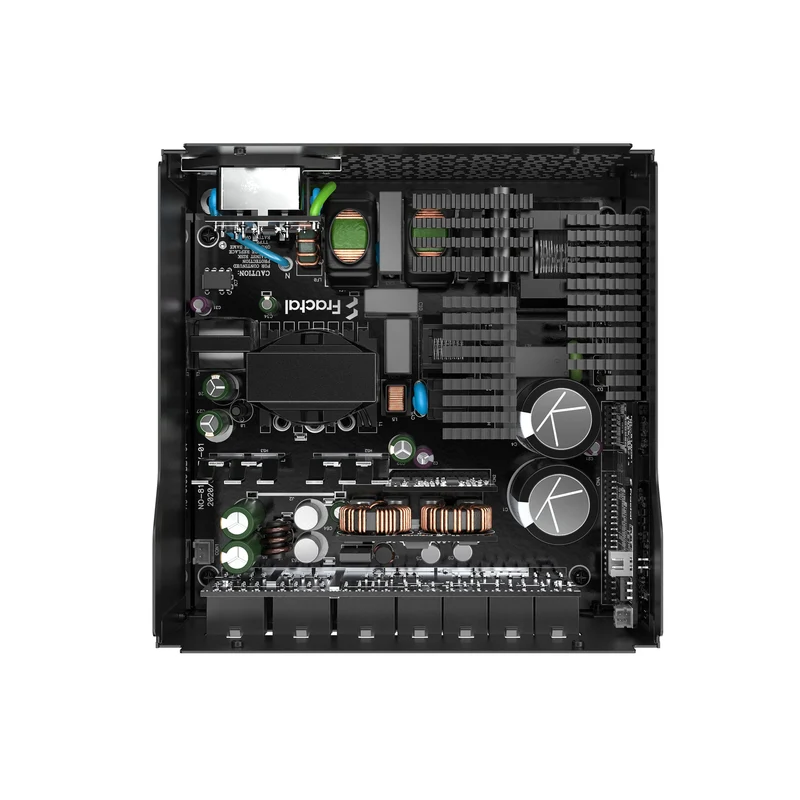

  • Capacitors Primary side: Japanese 105° main bulk capacitor(s), Secondary side: Taiwanese 105°C electrolytic & solid-state capacitors
  • Life expectancy 100,000 hours
  • PSU specification compliance ATX12V 2.52; EPS12V 2.92
  • PSU color Black
  • Cable type Modular 24-pin cable: Black wires in braided sleeve, Other modular cables: Flat black wires
  • Input voltage 100-240V AC
  • Input frequency 50-60 Hz
  • Input current 10A/5A
  • Protection features Over voltage protection, Under voltage protection, Over-power protection, Short circuit protection, Over current protection, Over temperature protection
  • Standby efficiency ErP 2013 (<0.45W @ 230 VAC, 45mA load on +5Vsb)
  • Sleep state compliance C6/C7 compatible
  • Approvals & certifications CE, FCC, KCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, RoHS, WEEE

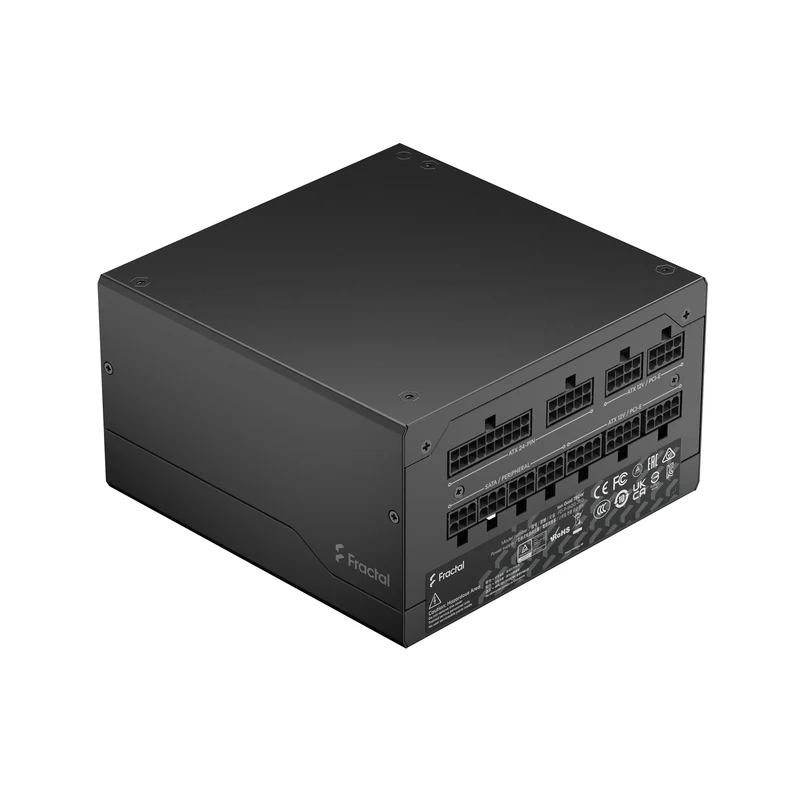

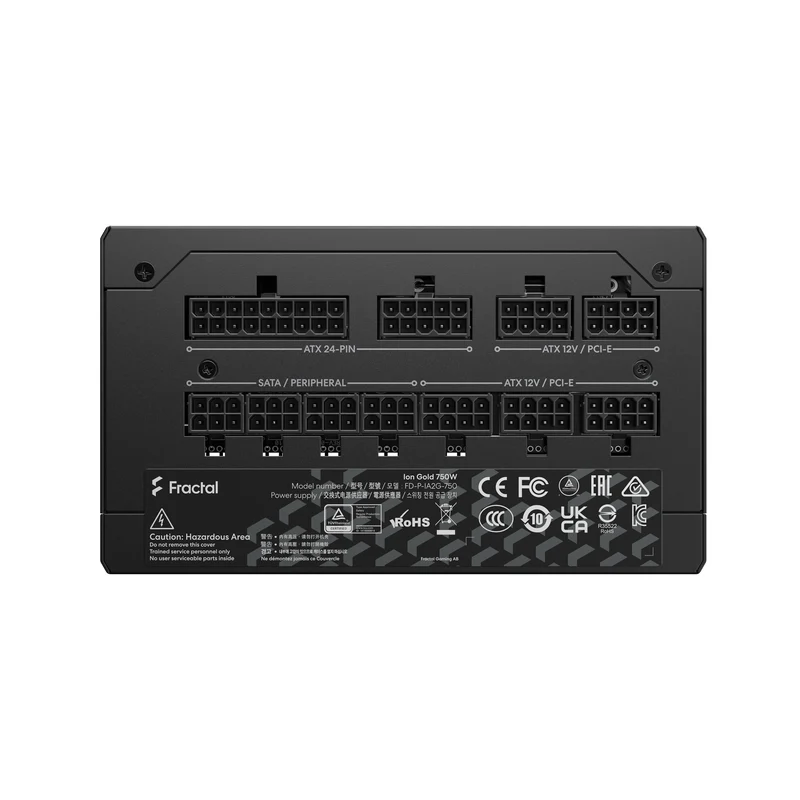

Connectors
  • ATX 24-pin 1
  • EPS/ATX12V 2
  • PCIe 4
  • SATA 8
  • Peripheral 3

Cable Configuration (length in mm between connectors)
  • ATX 24-pin 500
  • ATX 12V 4+4 pin 600
  • EPS12V 8-pin 600
  • PCIe 6+2 pin 550+150
  • SATA 500+150+150+150
  • Peripheral 500+150+150

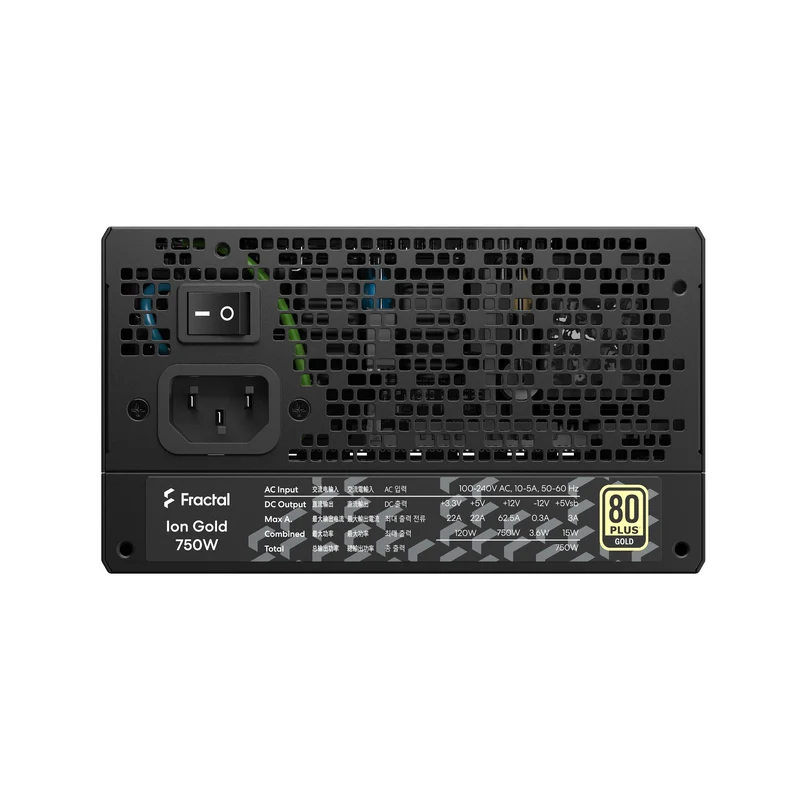

DC Output
  • 3.3V 22A
  • 5V 22A
  • 3.3V and 5V combined 120W
  • 12V 62.5A
  • -12V 0.3A
  • +5Vsb 3A
  • Total Power 750W

Other

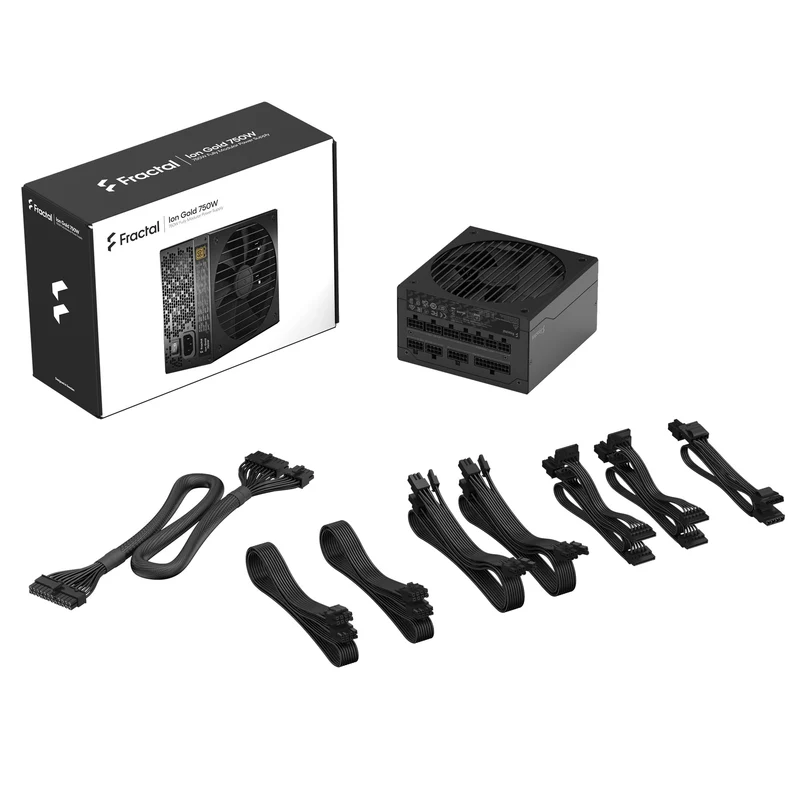

  • Package contents Ion Gold power supply, Modular cables, Screw pack with velcro cable ties, AC power cord (localized), User manual
  • Unit dimensions (LxWxH) 150 x 150 x 86 mm
  • Net weight (unit only) 2.31 kg
  • Package dimensions (LxWxH) 300 x 210 x 110 mm
  • Package weight 2.69 kg
