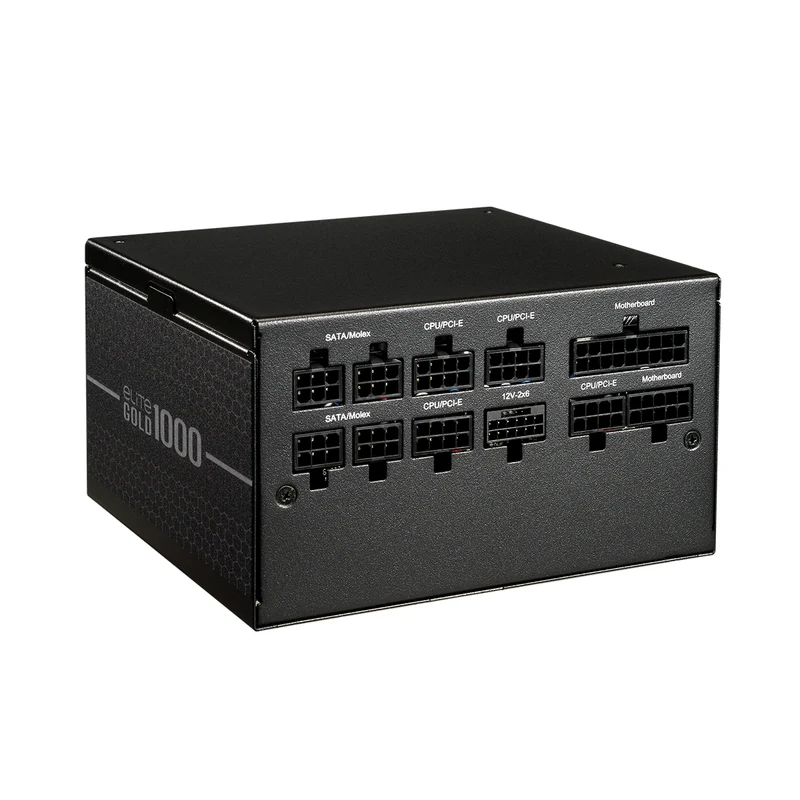

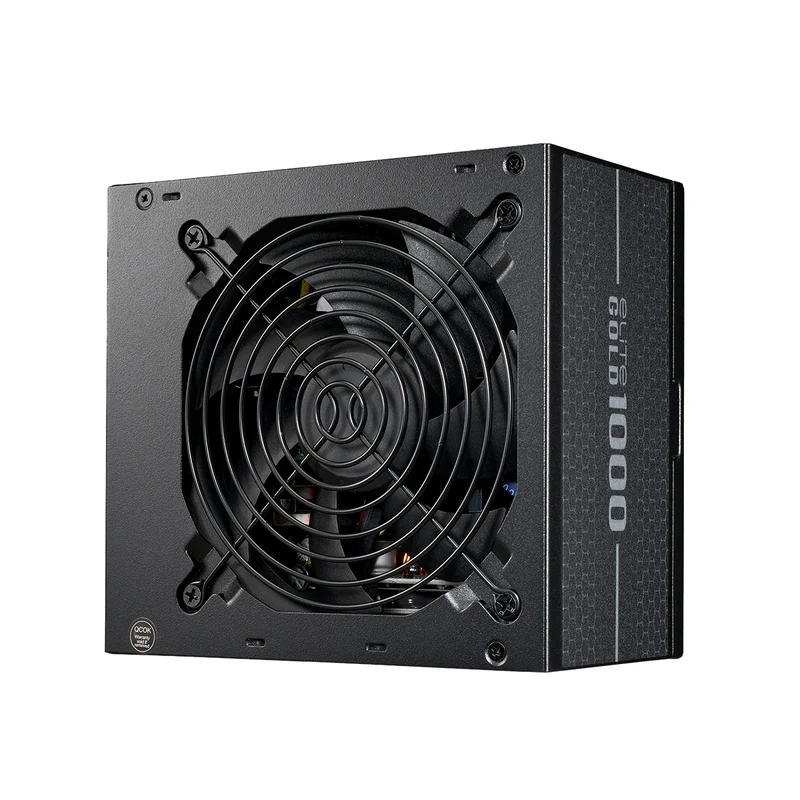

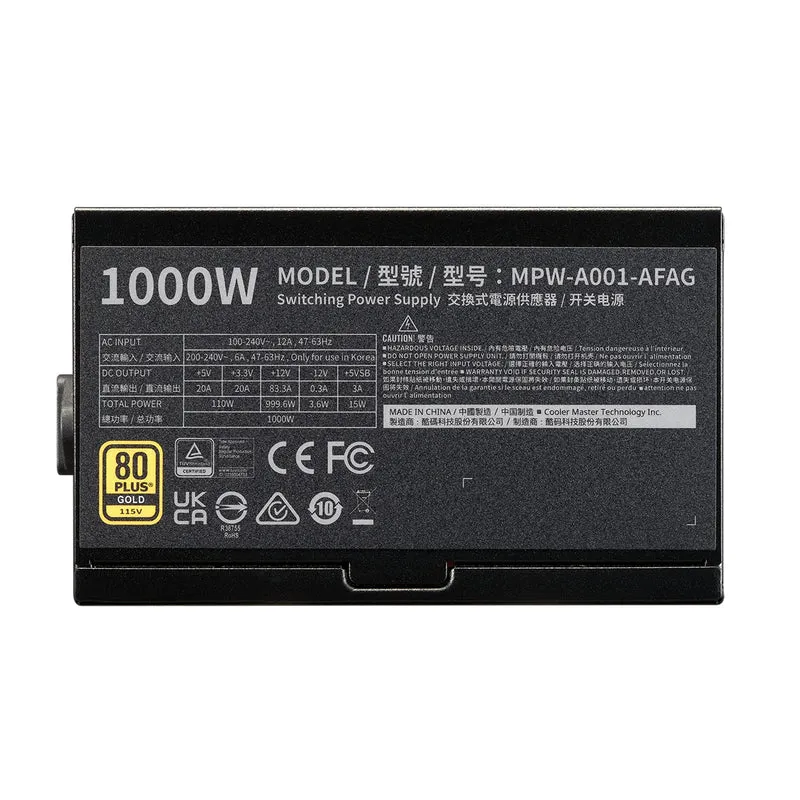

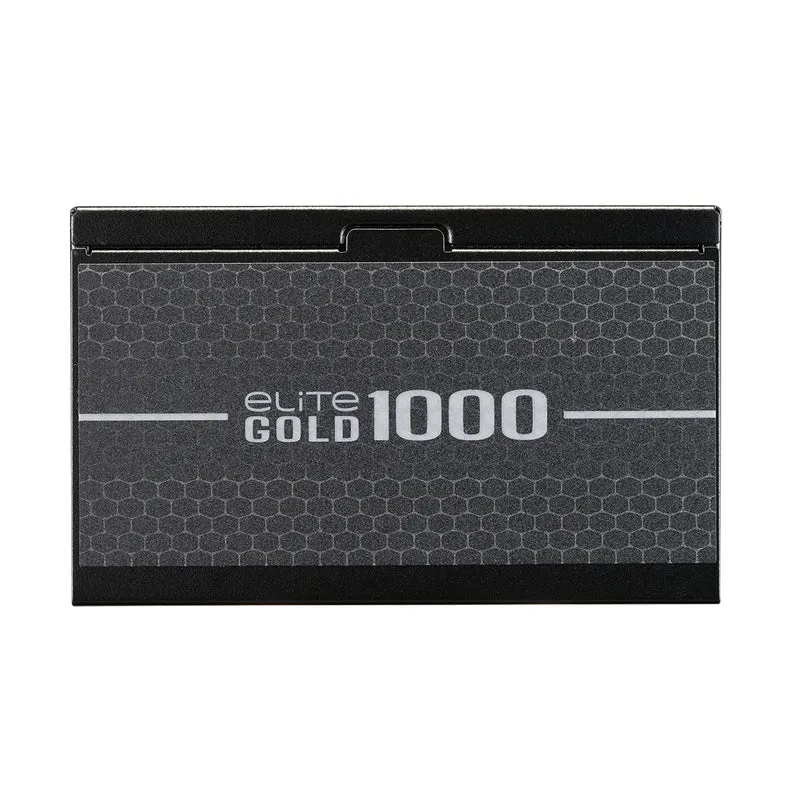

Cooler Master Elite Gold 1000 80+ Gold ATX 3.1 Full-Modular Power Supply (MPW-A001-AFAG-BUS)

ESSENTIAL GOLD POWER FOR EVERYDAY GAMING BUILDS

Cooler Master Elite Gold 1000 is designed for everyday gaming and first-time builds. With full ATX 3.1 compliance support, it's ready for RTX 50 GPUs and future upgrades. Enjoy 80 Plus Gold efficiency, reliable operation up to 40 °C, and quiet FDB fan cooling. Fully modular embossed cables simplify installation, dual EPS connectors provide wide compatibility, and a 5-year warranty ensures long-term confidence and reliability.

Specifications

Product Name	ELITE GOLD 1000
Model	MPW-A001-AFAG
ATX Version	ATX 12V Ver. 3.1
PFC	Active PFC
Input Voltage	100-240V
Input Current	6 ~ 12A
Input Frequency	50-60Hz
Dimensions (L x W x H)	140 x 150 x 86 mm
Fan Size	120mm
Fan Bearing	FDB
Efficiency	≥90% @ Typical Load
80 PLUS Rating	80 PLUS Gold
ErP 2014 Lot 3	Yes
Operating Temperature	0-40°C
Power Good Signal	100 - 150 ms
Hold Up Time	≥16ms at 80% Load
MTBF	>100,000 hours @ 25℃ ambient
Protections	UVP / OVP / OPP / OTP / SCP
Regulatory	cTUV us, CB, CE, FCC, BSMI, EAC, RCM, UKCA, RoHS2.0, REACH
ATX 24 Pin Connectors	x1 = 1 (600mm)
EPS 4+4 Pin Connectors	x2 = 2 (700mm)
SATA Connectors	x9 = 3 (500+100+100mm)
Peripheral 4 Pin Connectors	x3 = 1 (500+100+100mm)
PCI-e 6+2 Pin Connectors	x6 = 3 (550+120mm)
12+4 Pin Connectors	x1 = 1 (600mm)
Series	Elite Series
Form Factor	ATX
Watts	1000W
Modular	Fully Modular
80 Plus Efficiency	Gold
