Asus ROG Rapture GT6 WiFi 6 Tri-Band Gaming Mesh System (2-Pack)

Asus ROG Rapture GT6

Choose Your Style

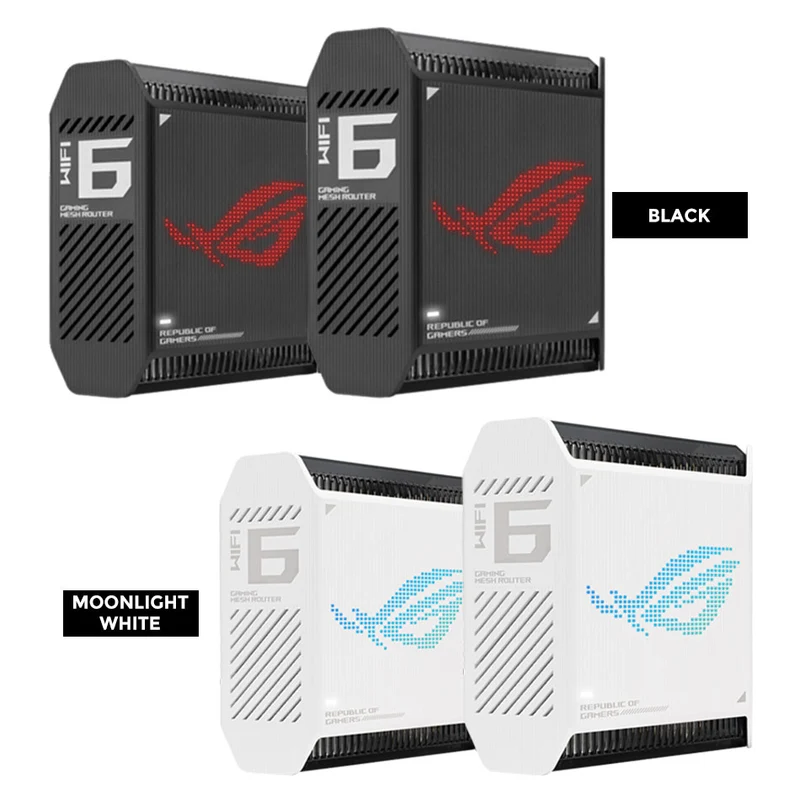

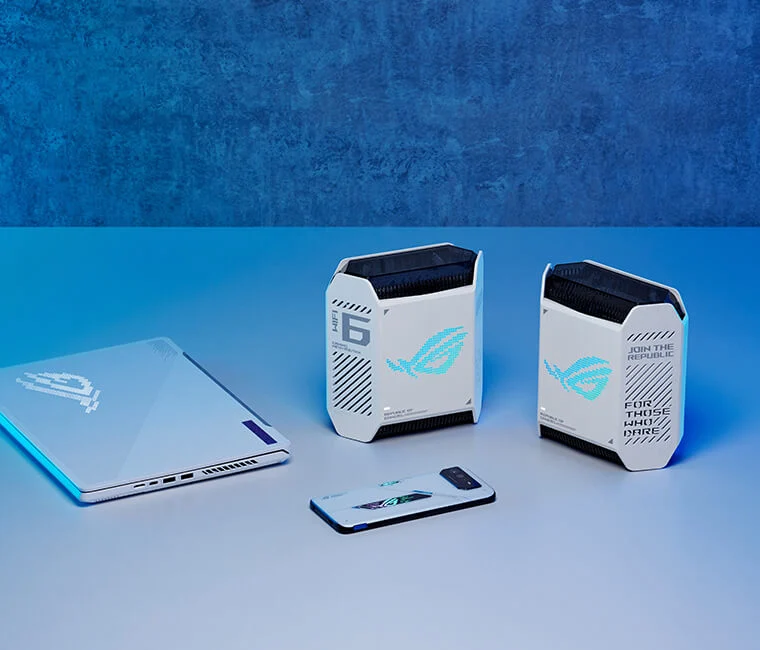

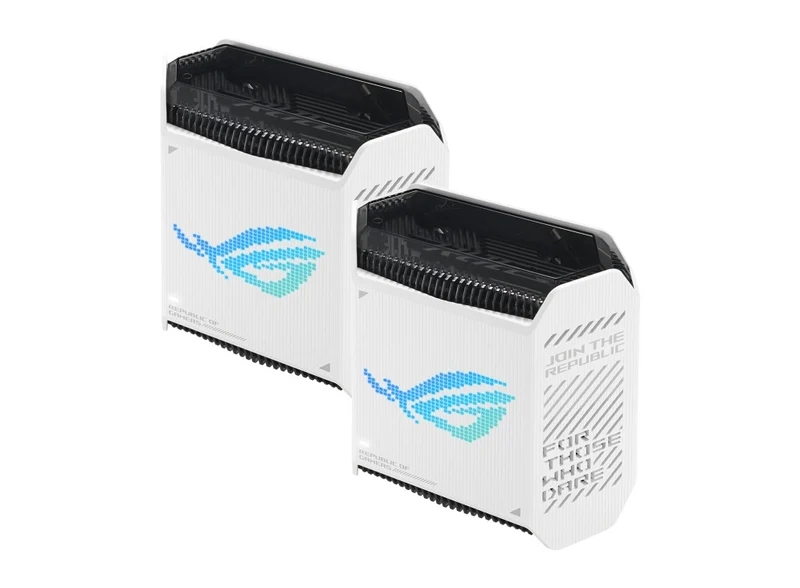

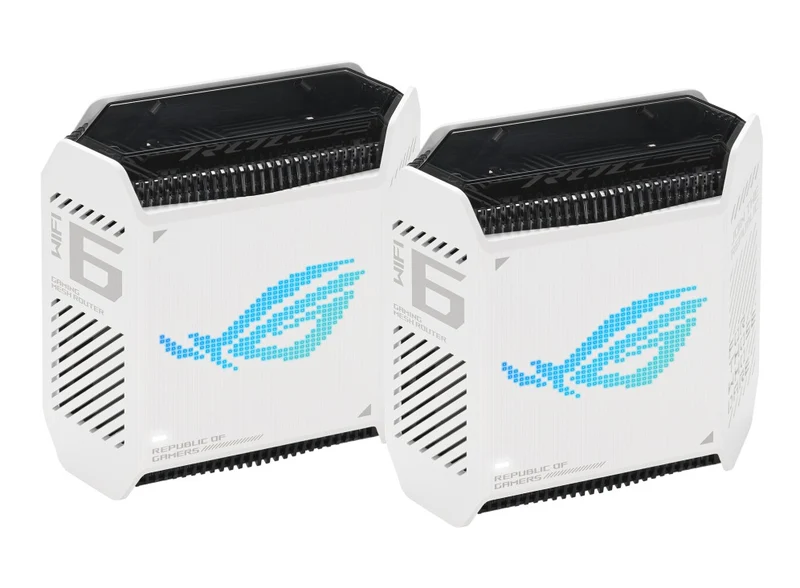

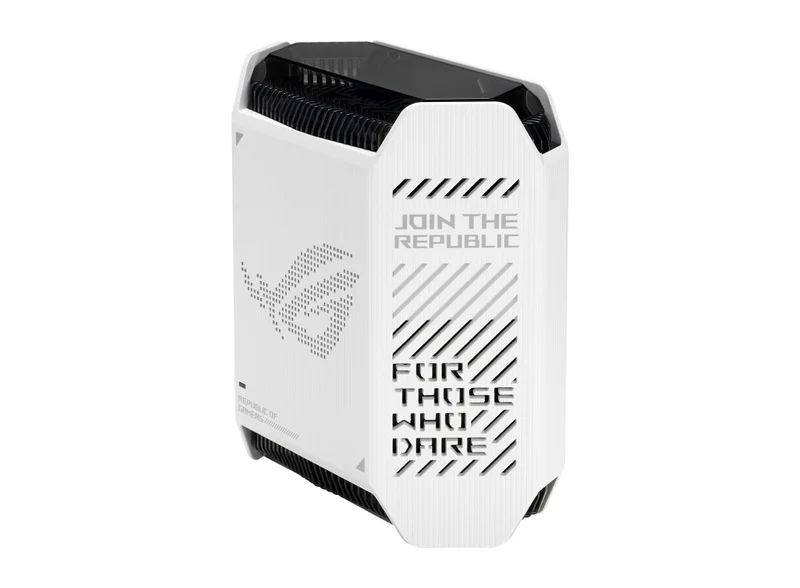

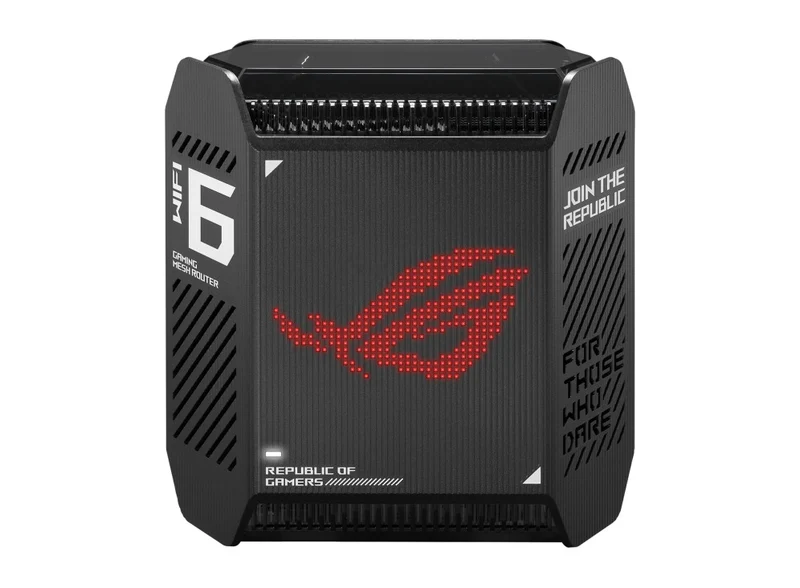

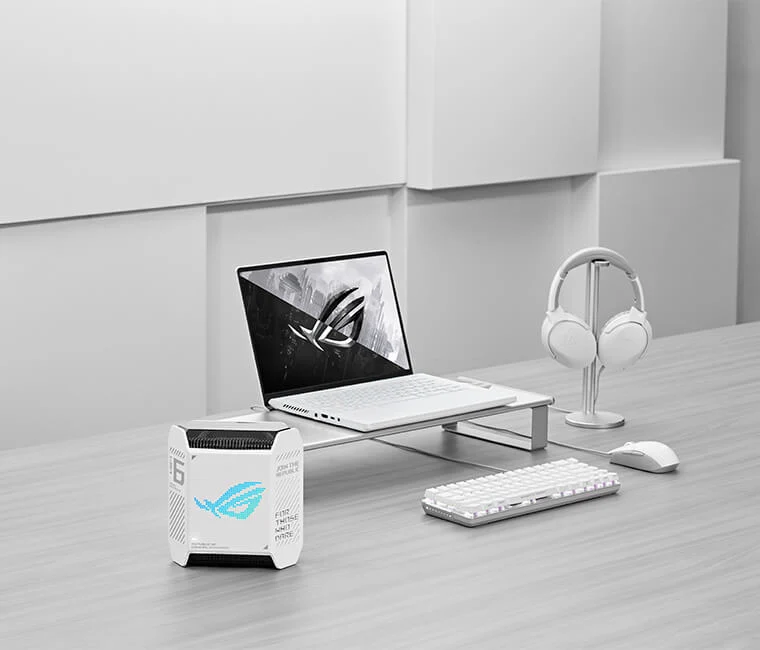

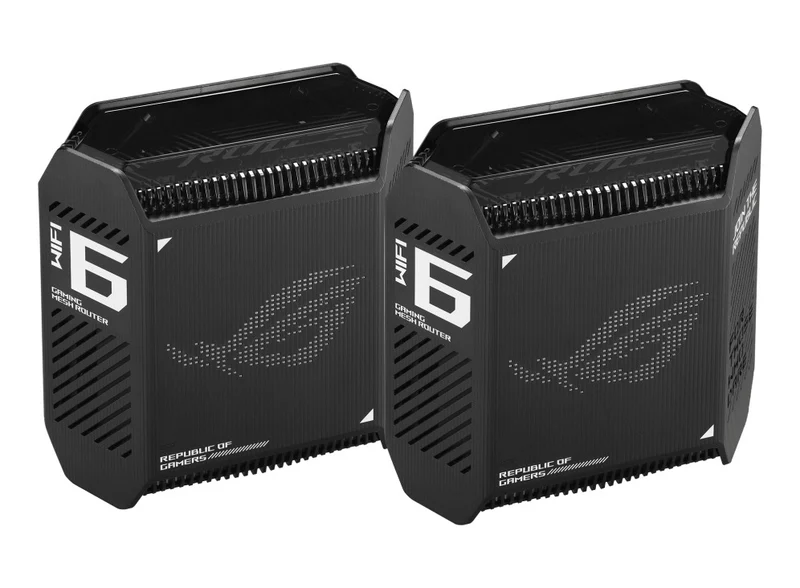

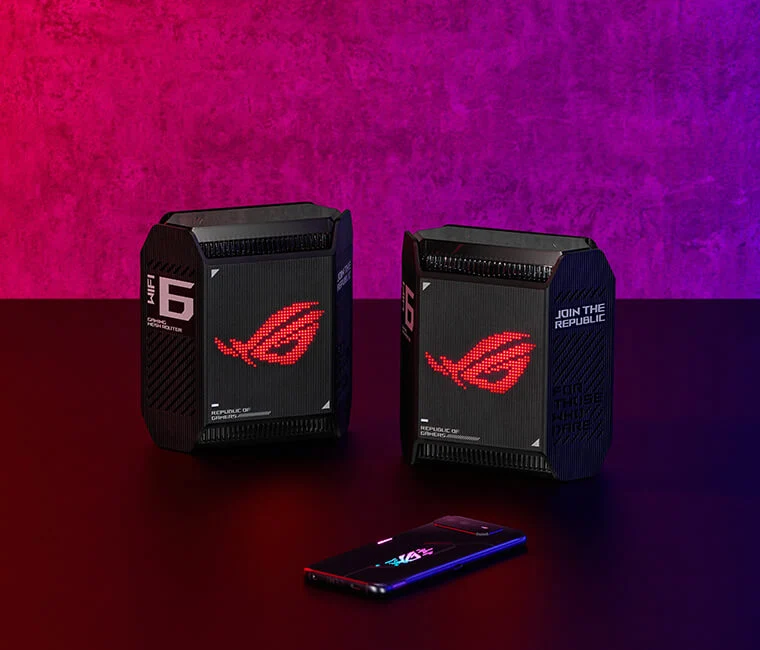

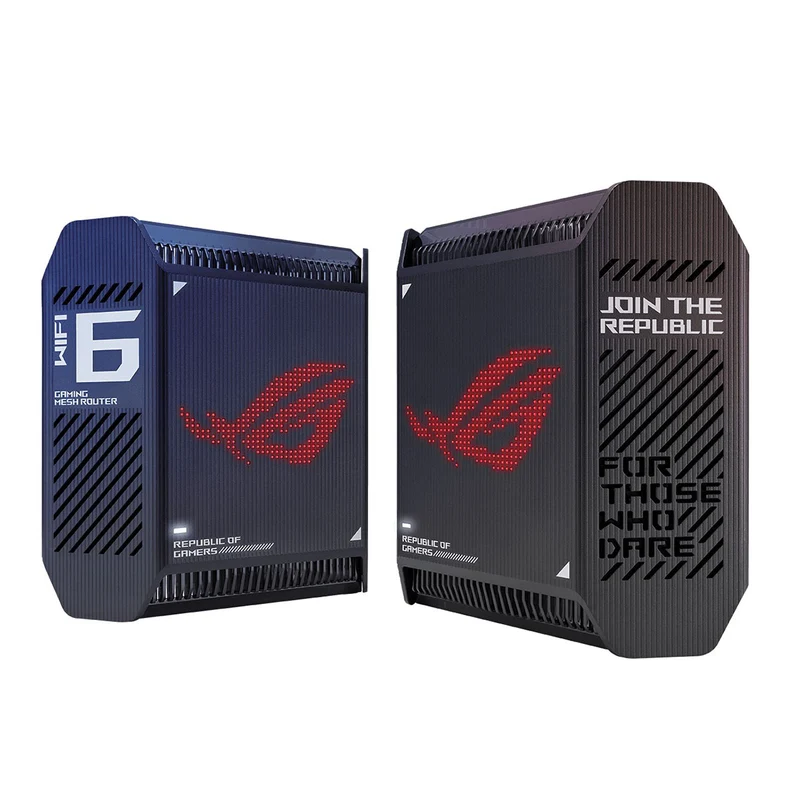

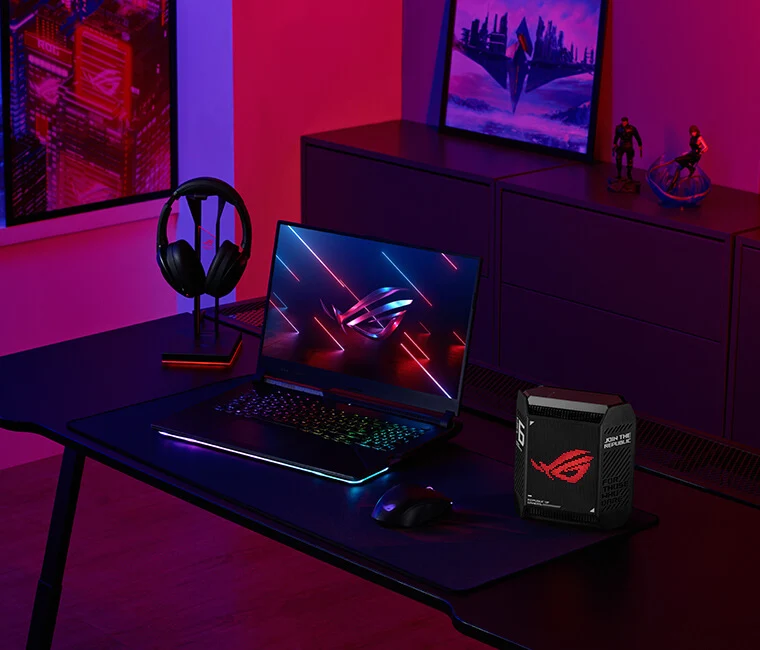

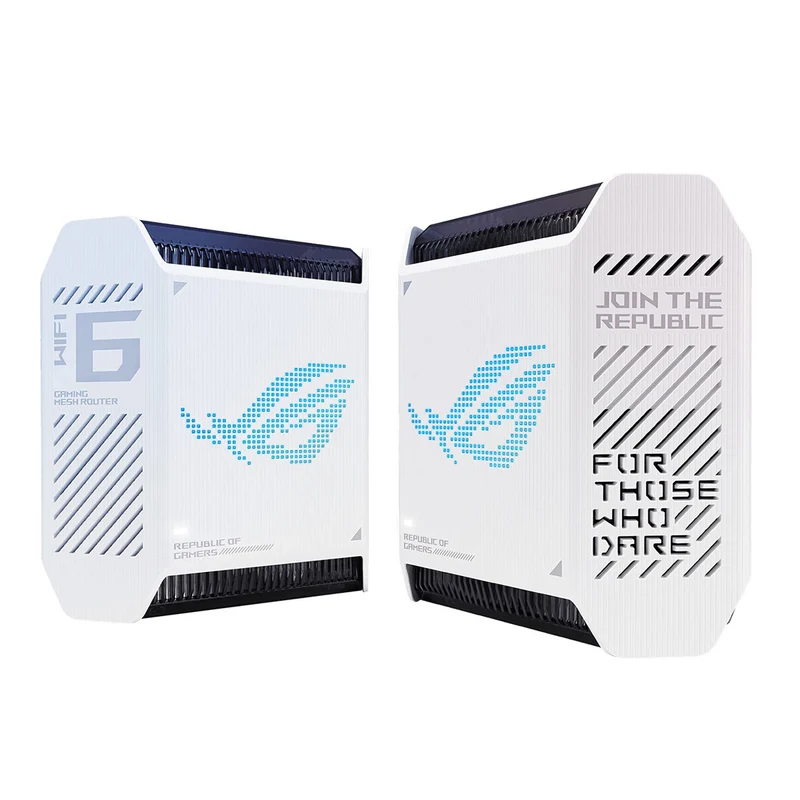

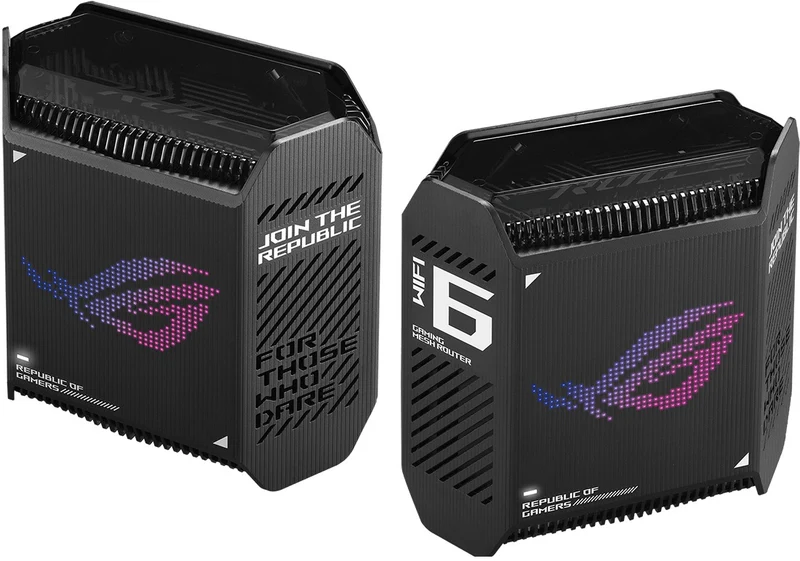

Designed with the spirit of innovation, the ROG Rapture GT6 draws inspiration from the ROG aesthetic and features distinctive hexagonal patterns throughout. It comes in two colors – Black or Moonlight White. The black version's matte finish and sleek angles offer a futuristic appearance. Meanwhile, the Moonlight White Edition offers a pristine and minimalist look. With both versions, ROG’s famous tagline – “For Those Who Dare” – is prominently displayed.

Made For Gamers

To enjoy the full speed of your internet, whether connecting to a router or its nodes, the backhaul connection is the most important to ensure maximum WiFi performance throughout a home. With dedicated mesh backhaul and the new technology that improves backhaul capacity and performance, the GT6 provides seamless online gameplay.

Expanded Coverage with RangeBoost Plus

ASUS RangeBoost Plus is the latest, most powerful version of our renowned RangeBoost technology, which can improve the coverage and WiFi performance significantly compared to other models without RangeBoost.

Outstanding WiFi Efficiency

In a router this small, most competing devices have a maximum of eight antennas. To prevent signal drops and inconsistent speeds across nodes, the GT6 embeds nine internal antennas at different angles, effectively limiting dead zones. The additional horizontal antenna provides more options for optimal signal direction.

SPECIFICATION

Network Standard

WiFi 6 (802.11ax) IPv4 IPv6 Backwards compatible with 802.11a/b/g/n/ac Wi-Fi

Product Segment

AX10000 ultimate AX performance

AX technology

Yes

Data Rate

2.4GHz AX: 2x2 (Tx/Rx) 1024 QAM 20/40MHz, up to 574Mbps 5G-1Hz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps 5G-2Hz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps

Antenna

Internal antenna x 9

Transmit/Receive

2.4GHz 2x2 5GHz-1 4x4 5GHz-2 4x4

Processor

1.7GHz tri-core processor

Memory

256MB Flash 512MB DDR4 RAM

Boosts speed

OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth * The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions.

Operating Frequency

2.4G Hz 5 GHz-1 5 GHz-2

Ports

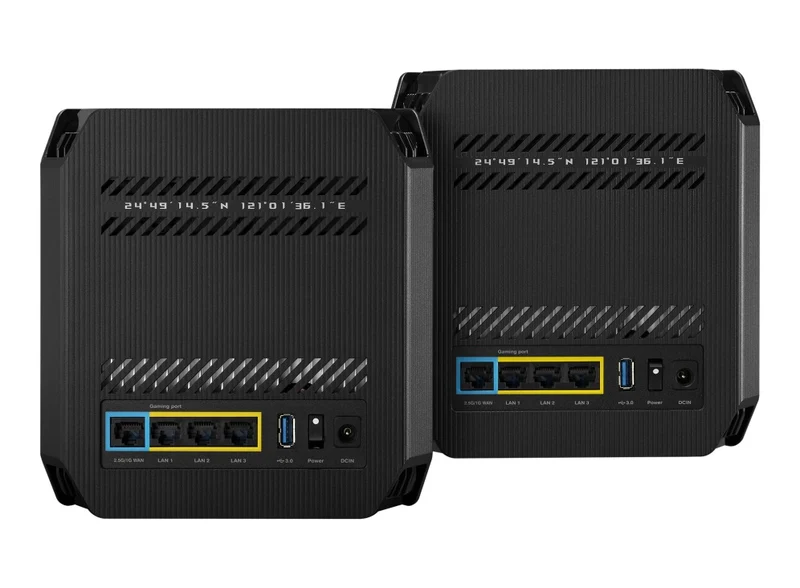

1 x 2.5 Gigabit WAN Port 3 x Gigabit LAN Ports 1 x USB 3.2 Gen 1x1 Port

Button

WPS Button Reset Button Power Switch

LED Indicator

Power x 1

Power Supply

AC Input : 110V~240V(50~60Hz) DC Output : 19 V with max. 2.37 A current / 19.5 V with max. 2.31 A current

Package content

ROG Rapture GT6 RJ-45 Cable Power Adapter Quick Start Guide Warranty Card

Product Weight (g)

880 g

AiMesh

AiMesh Primary AiMesh router AiMesh node

Router APP

ASUS Router APP

Game

Game Boost/acceleration Game Radar WTFast ROG_First OpenNAT (Game Profile) Gaming port

Alexa

Support Alexa skill

AiProtection

AiProtection Pro Router Security Assessment Malicious site blocking Two-Way IPS Infected Device Prevention and Blocking

Parental Control

Parental Control Parental Control Customized Internet schedule

Traffic Control

Adaptive QoS Bandwidth Monitor Bandwidth limiter Traditional QoS Traffic Monitor Real-time traffic monitor Wired Traffic Monitor Wireless Traffic Monitor Traffic Analyzer Traffic analysis period : Daily, Weekly, Monthly Website history

Wireless

IPv6 MU-MIMO WiFi Encryption : WPA3 Personal, WPA2 Personal, WPA Personal, WPA Enterprise, WPA2 Enterprise, Open System UTF-8 SSID Guest Network Guest Network Connection time limit WPS Wi-Fi MAC address filter Maximum MAC filters : 64 Wireless scheduler Wi-Fi Radar Airtime fairness RADIUS Client Universal beamforming

WAN

Explicit beamforming Dual WAN 3G/4G LTE dongle Android tethering Port forwarding Maximum port forwarding rule : 64 Port triggering Maximum port triggering rule : 32 DMZ DDNS NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough, PPPoE relay Let's Encrypt Safe browsing DNS-over-TLS

LAN

DHCP Server IGMP snooping IPTV LAN Link Aggregation Manually assign IP address

VPN

VPN Client L2TP VPN Client OVPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server OVPN VPN Server PPTP VPN Server WireGuard VPN Fusion

USB application

File System : HFS+, NTFS, vFAT, ext2, ext3, ext4 Safely Remove disk AiCloud Download master AiDisk Media Server Time Machine Samba Server FTP Server Shared Folder privileges
