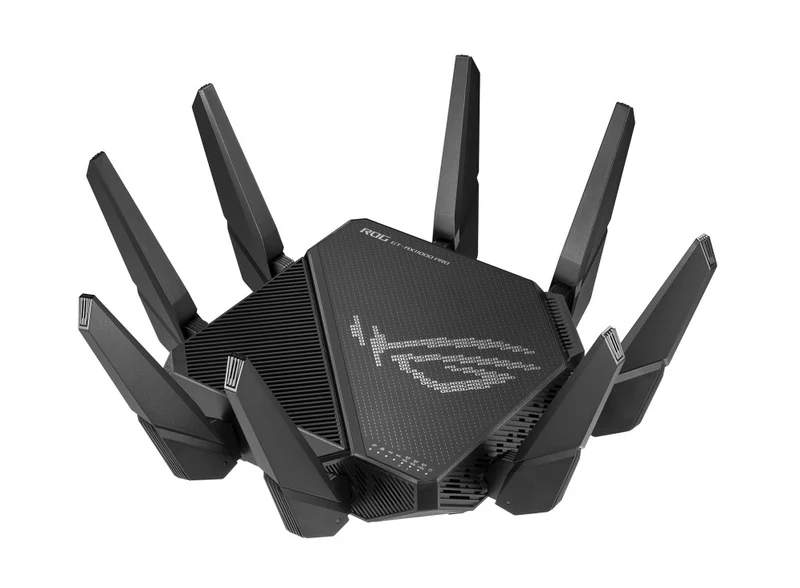

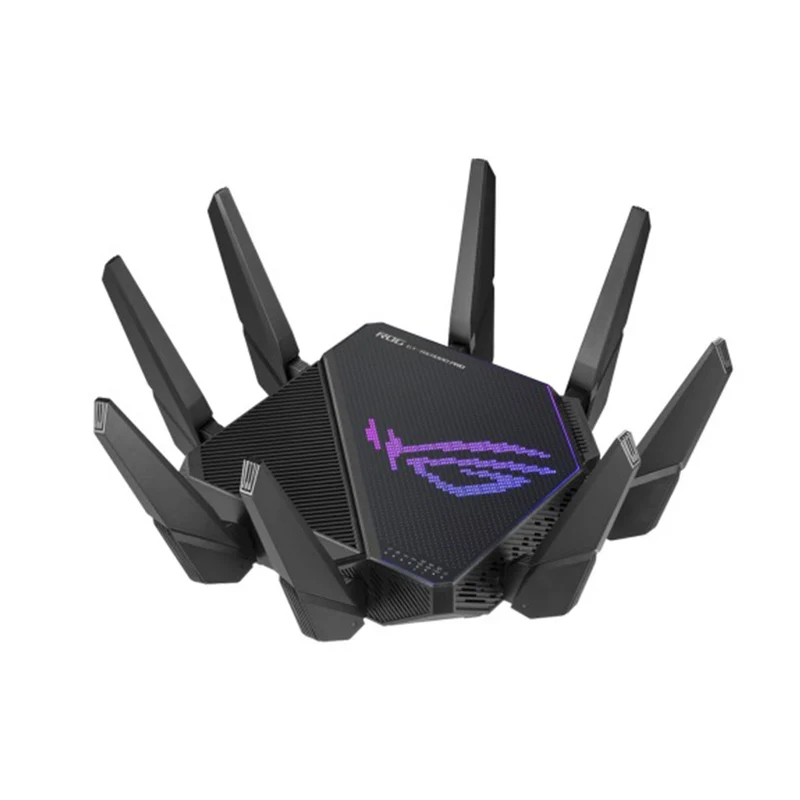

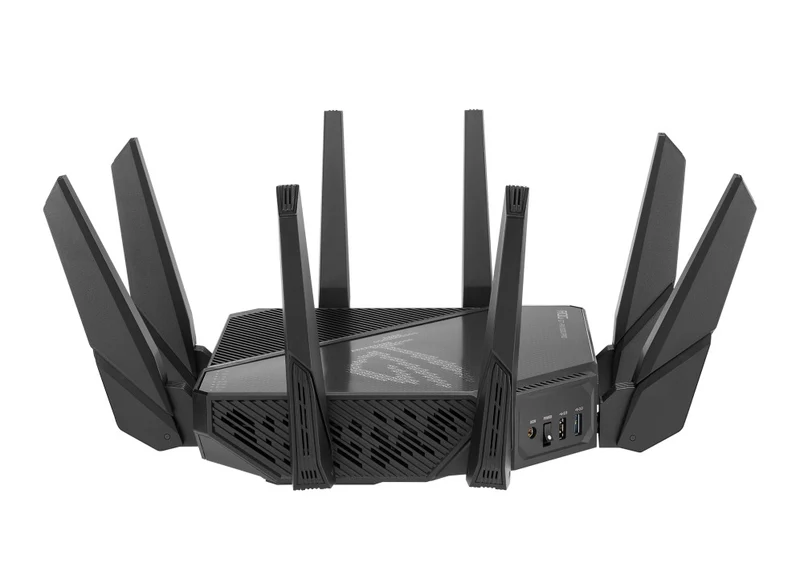

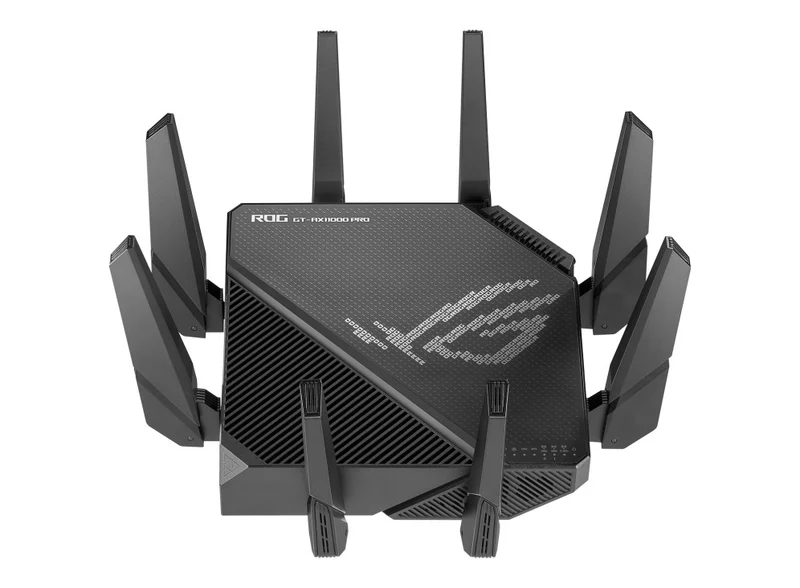

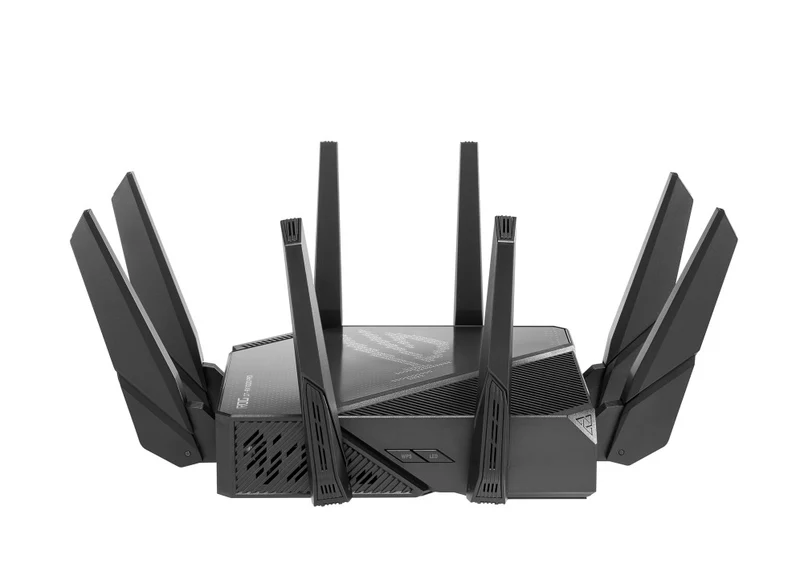

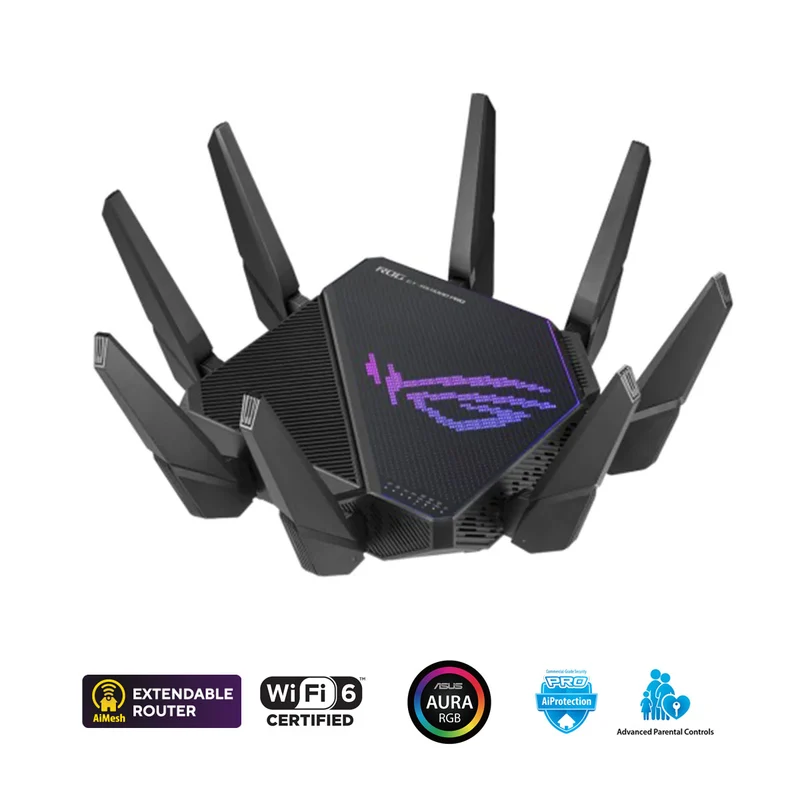

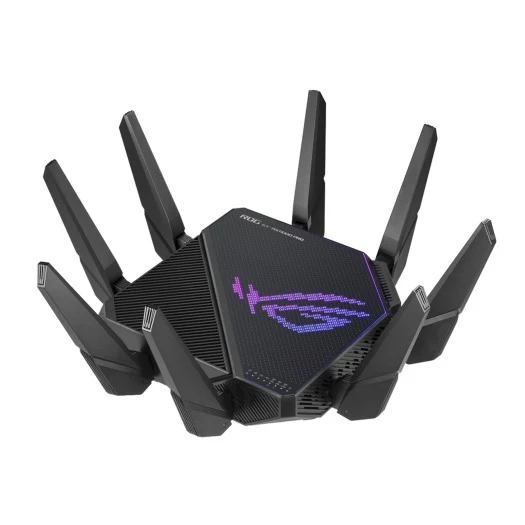

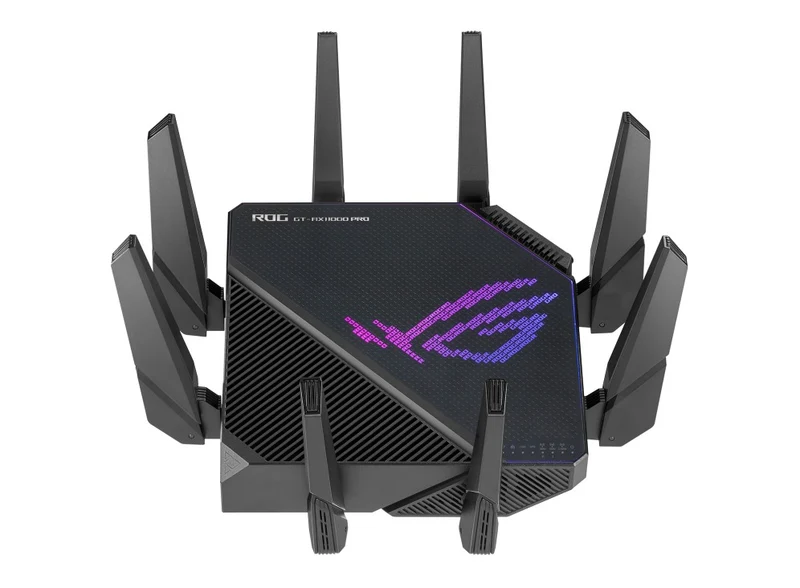

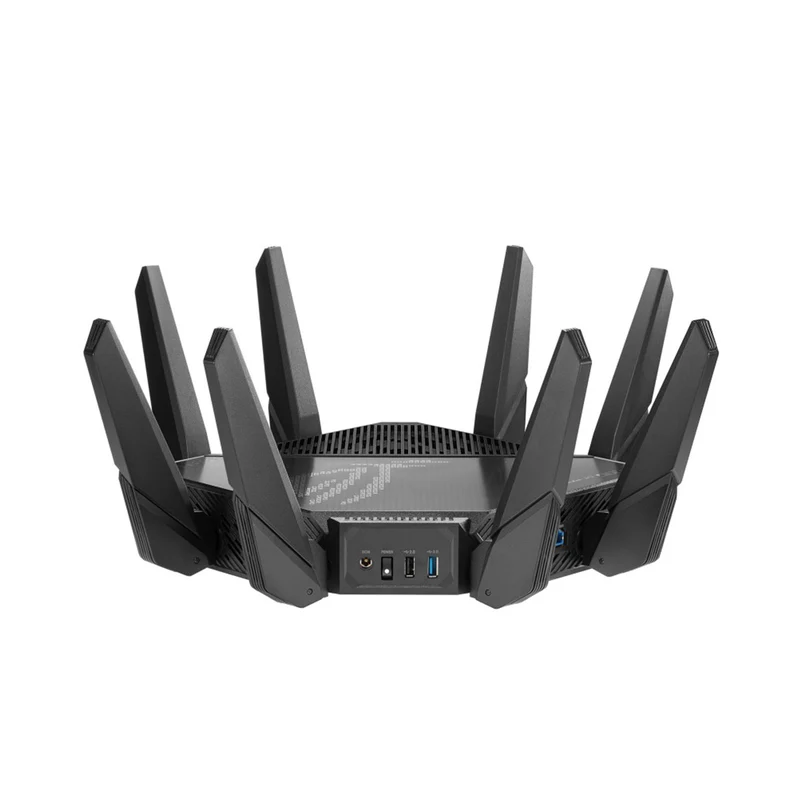

Asus ROG Rapture GT-AX11000 Pro WiFi 6 Tri-Band Gaming Router

ROG Rapture GT-AX11000 Pro

GT-AX11000 Pro Tri-Band WiFi 6 gaming router, 2.5G port, 10G port, enhanced hardware, ASUS RangeBoost Plus, 5.9 GHz, Triple-level game acceleration, free network security and AiMesh support

• High-efficiency WiFi 6 – Ultrafast WiFi 6 tri-band boosts speeds up to 11,000 Mbps, with 160 MHz channels for better efficiency and throughput
• Expanded coverage – Exclusive ASUS RangeBoost Plus improves signal range and overall coverage
• Flexible networking ports – One 2.5G port and one 10G port can be configured for either WAN or LAN operation
• Extreme quad-core CPU power – High-performance WiFi chipsets and 64-bit 2.0 GHz quad-core CPU take wireless signal processing to the next level
• Triple-level game acceleration – Online gaming gets network prioritization every step of the way, from PC to game server

 SPECIFICATION

Model Name

GT-AX11000 PRO

Network Standard

IEEE 802.11ax IPv4 IPv6

Product Segment

AX11000 ultimate AX performance

AX technology

Yes

Data Rate

2.4GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40MHz, up to 1148Mbps 5G-1Hz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps 5G-2Hz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps

Antenna

External antenna x 8 (non-detachable)

Transmit/Receive

2.4GHz 4x4 5GHz-1 4x4 5GHz-2 4x4

Processor

2.0GHz quad-core processor

Memory

256MB NAND flash and 1GB DDR4 RAM

Boosts speed

OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth * The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions.

Operating Frequency

Tri-band Wi-Fi: 2.4 GHz / 5 GHz-1 / 5 GHz-2

Ports

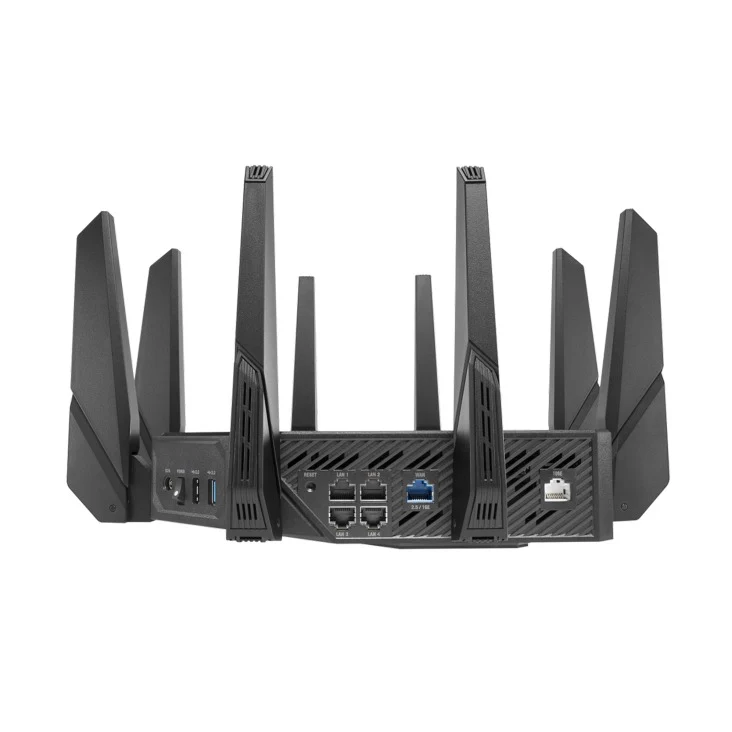

1 x 2.5 Gigabit WAN Port 1 x 10 Gigabit WAN/LAN Port 4 x Gigabit LAN Ports 1 x USB 3.2 Gen 1 Port 1 x USB 2.0 Port

Button

WPS Button, LED Button, Reset Button, Power Switch

LED Indicator

Power x 1 2.4G x 1 5GHz-1 x 1 5GHz-2 x 1 WPS x 1 10GE x 1 LAN x 1 WAN x 1

Power Supply

AC Input : 110V~240V(50~60Hz) DC Output : 19 V with max. 3.42 A ；19.5 V with max. 3.33 A

Package content

GT-AX11000 Pro WiFi Gaming Router RJ-45 Cable Power Adapter Quick Start Guide Warranty Card

Product Weight (g)

2180g

AiMesh

AiMesh Primary AiMesh router AiMesh node

Router APP

ASUS Router APP

Game

Game Boost/acceleration Game Radar WTFast UU boost ROG_First OpenNAT (Game Profile)

Alexa

Support Alexa skill

AiProtection

AiProtection Pro Router Security Assessment Malicious site blocking Two-Way IPS Infected Device Prevention and Blocking

Parental Control

Parental Control Parental Control Customized Internet schedule Maximum Parental Control profile : 64 Maximum Parental Control content filter rule : 64

Traffic Control

Adaptive QoS Bandwidth Monitor Bandwidth limiter Maximum Bandwidth limiter rule : 32 Traditional QoS Traffic Monitor Real-time traffic monitor Wired Traffic Monitor Wireless Traffic Monitor Traffic Analyzer Traffic analysis period : Daily, Weekly, Monthly Website history

Wireless

IPv6 MU-MIMO WiFi Encryption : WPA3 Personal, WPA2 Personal, WPA Personal, WPA Enterprise, WPA2 Enterprise, Open System UTF-8 SSID Guest Network Maximum Guest Network rule : 2.4 GHz x 3, 5 GHz-1 x 3, 5 GHz-2 x 3 Guest Network Connection time limit Guest Network Encryption : Open system, WPA/WPA2-Personal/WPA3-Personal WPS Wi-Fi MAC address filter Maximum MAC filters : 64 Wireless scheduler Airtime fairness RADIUS Client Universal beamforming

WAN

Explicit beamforming Internet connection Type : Automatic IP, Static IP, PPPoE, PPTP, L2TP Dual WAN WAN Aggregation 3G/4G LTE dongle Android tethering Port forwarding Maximum port forwarding rule : 64 Port triggering Maximum port triggering rule : 32 DMZ DDNS NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay Let's Encrypt Safe browsing DNS-over-TLS
