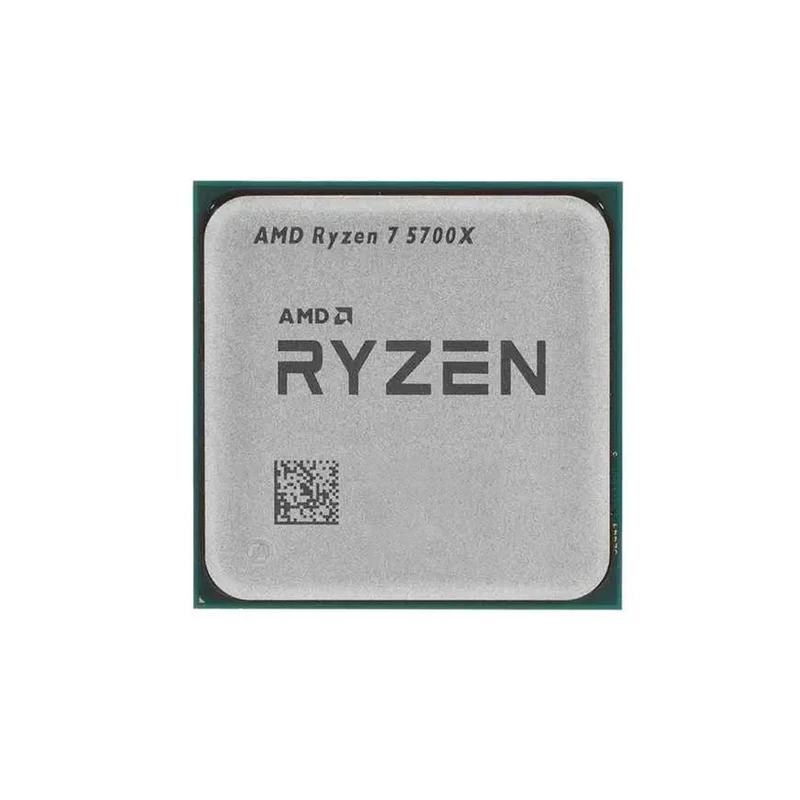

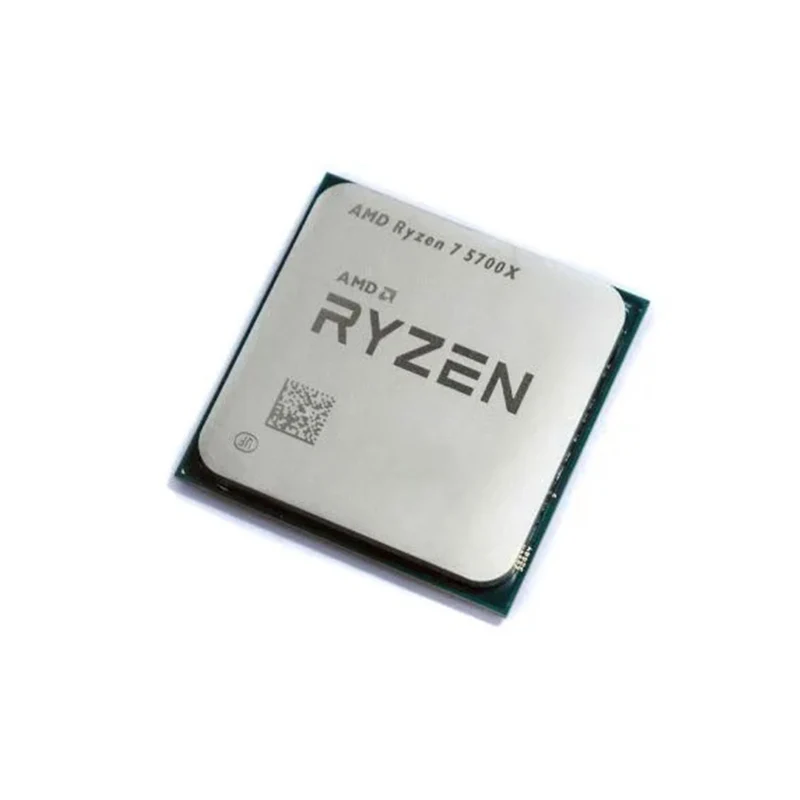

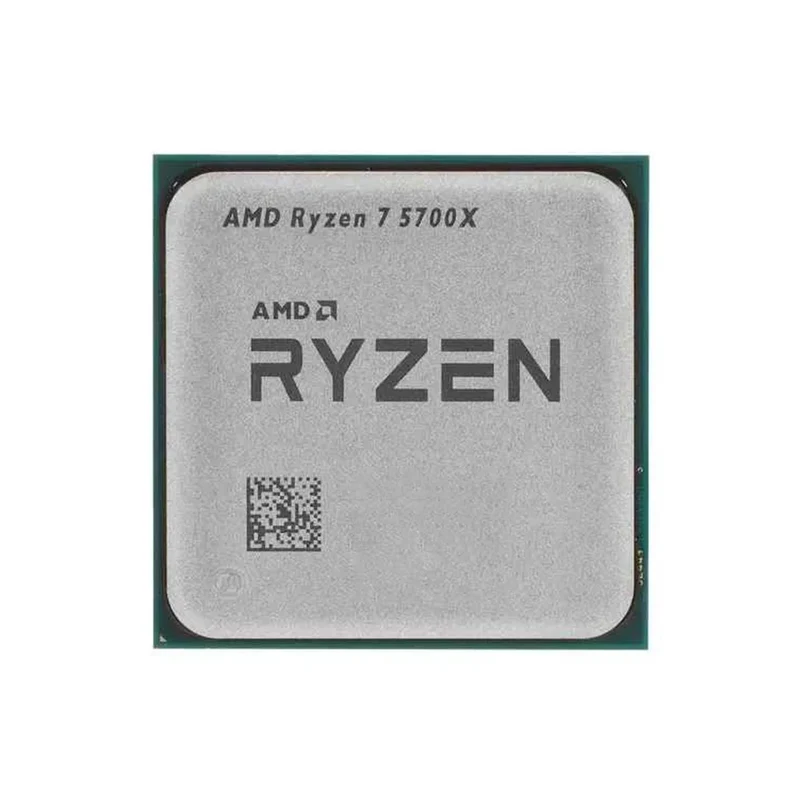

AMD Ryzen 7 5700X Processor - Tray

Features:

• Can deliver ultra-fast 100 plus FPS performance in the world's most popular games, discrete graphics card required
• 8 Cores and 16 processing threads, based on AMD "Zen 3" architecture
• 4.6 GHz Max Boost, unlocked for overclocking, 36 MB cache, DDR4-3200 support
• For the advanced Socket AM4 platform, can support PCIe 4.0 on X570 and B550 motherboards

General Specifications Platform: Desktop Market Segment: Enthusiast Desktop Product Family: AMD Ryzen™ Processors Product Line: AMD Ryzen™ 7 Desktop Processors Consumer Use: Yes Architecture: "Zen 3" # of CPU Cores: 8 Multithreading (SMT): Yes # of Threads: 16 Max. Boost Clock : Up to 4.6GHz Base Clock: 3.4GHz L1 Cache: 512KB L2 Cache: 4MB L3 Cache: 32MB Default TDP: 65W Processor Technology for CPU Cores: TSMC 7nm FinFET Processor Technology for I/O Die: 12nm (Globalfoundries) CPU Compute Die (CCD) Size: 74mm² I/O Die (IOD) Size: 125mm² Package Die Count: 2 Unlocked for Overclocking : Yes CPU Socket: AM4 Socket Count: 1P Supporting Chipsets:

• X570
• X470
• X370
• B550
• B450
• B350
• A520

CPU Boost Technology: Precision Boost 2 Instruction Set: x86-64 Supported Extensions: AES, AMD-V, AVX, AVX2, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 Thermal Solution (PIB): Not included Max. Operating Temperature (Tjmax): 90°C *OS Support:

• Windows 11 - 64-Bit Edition
• Windows 10 - 64-Bit Edition
• RHEL x86 64-Bit
• Ubuntu x86 64-Bit

*Operating System (OS) support will vary by manufacturer. Connectivity USB Type-C® Support: Yes Native USB 3.2 Gen 2 (10Gbps) Ports: 4 Native USB 3.2 Gen 1 (5Gbps) Ports: 0 Native USB 2.0 (480Mbps) Ports: 0 Native SATA Ports: 2 PCI Express® Version: PCIe 4.0 Native PCIe® Lanes (Total/Usable): 24/20 Additional Usable PCIe Lanes from Motherboard:

• AMD X570 | 16x Gen 4
• AMD X470 | 2x Gen 3
• AMD X470 | 8x Gen 2

NVMe Support: Boot, RAID0, RAID1, RAID10 System Memory Type: DDR4 Memory Channels: 2 Max. Memory: 128GB System Memory Subtype: UDIMM System Memory Specification: Up to 3200MHz Max Memory Speed:

• 2x1R | DDR4-3200
• 2x2R | DDR4-3200
• 4x1R | DDR4-2933
• 4x2R | DDR4-2667

ECC Support: Yes (Requires mobo support) Graphics Capabilities Integrated Graphics: No Graphics Model: Discrete Graphics Card Required Key Features Supported Technologies:

• AMD StoreMI Technology
• AMD "Zen 3" Core Architecture
• AMD Ryzen™ VR-Ready Premium
