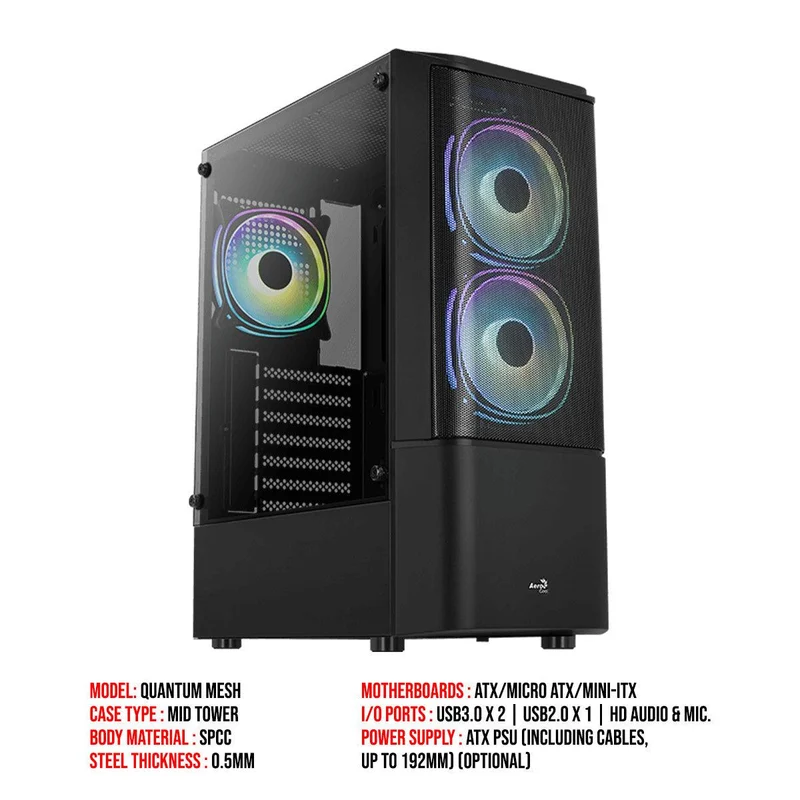

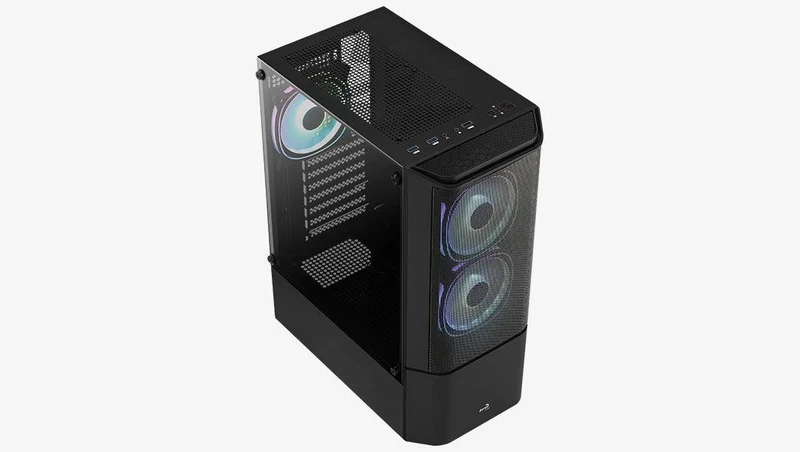

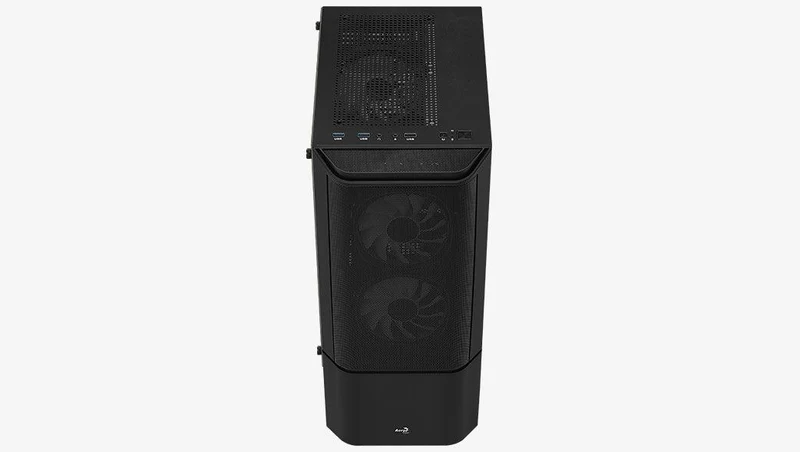

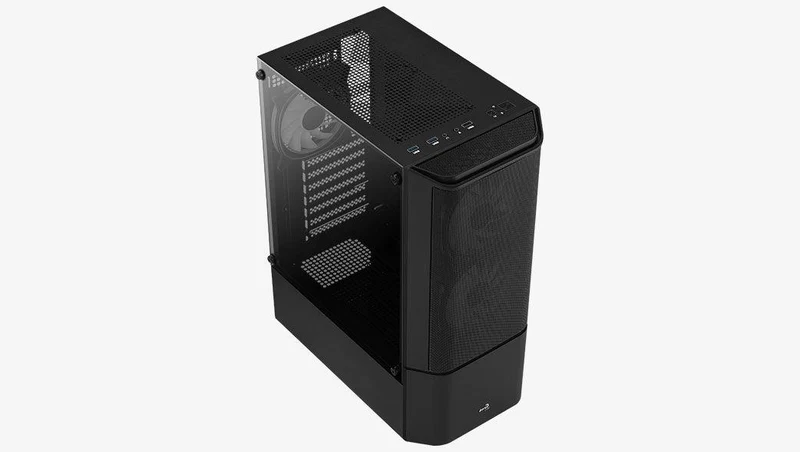

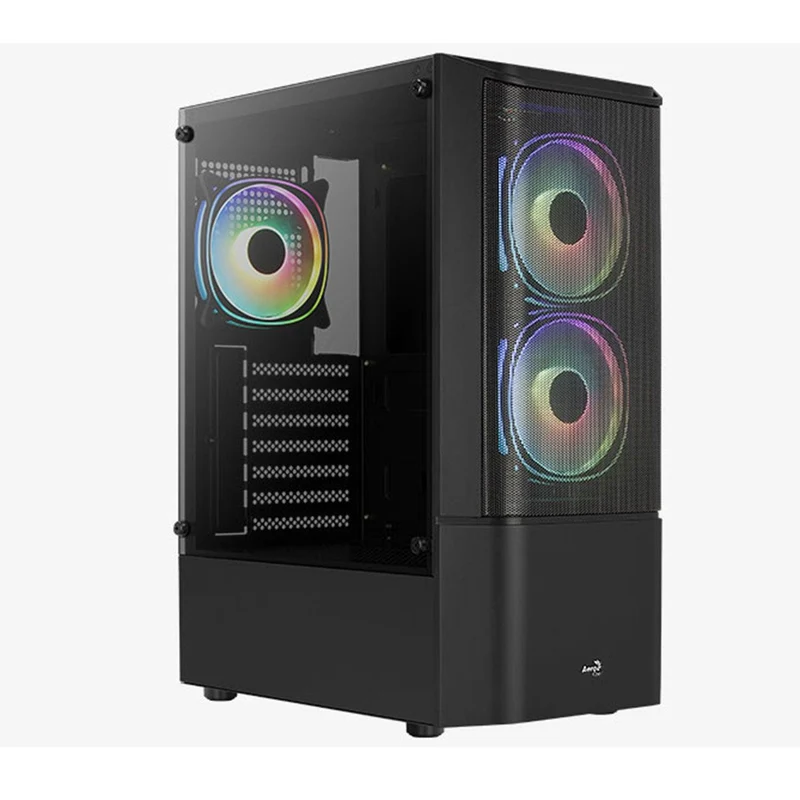

Aerocool Quantum Mesh-G-BK-V3 Mid-Tower Case (Black)

 Quantum Mesh

MID TOWER CASE

Featuring space grey metallic paint finishing with a mesh front panel design, this case provides improved air ventilation while delivering a premium and futuristic look and feel. This high performance mid tower case comes equipped with a tempered glass side panel to showcase the inside of your rig.

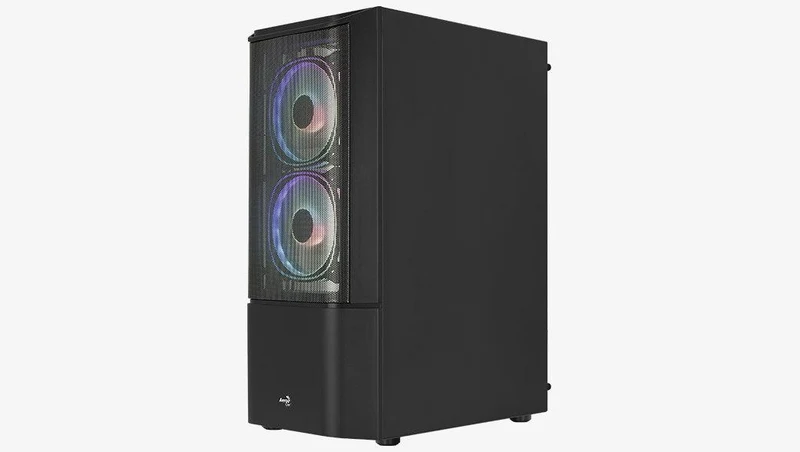

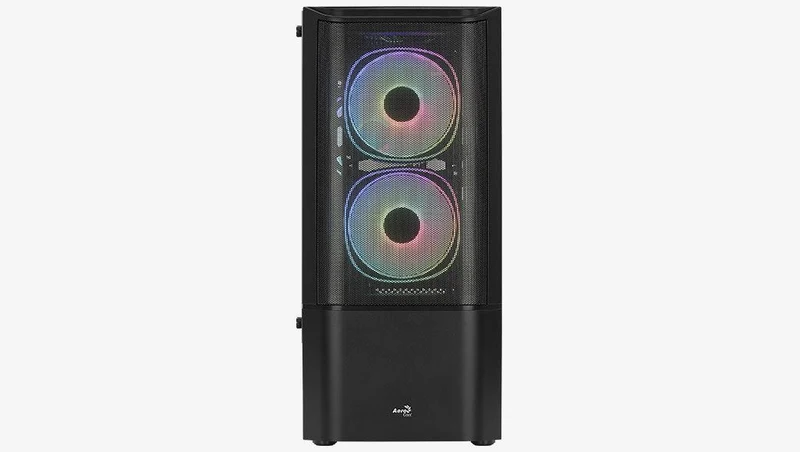

• Mesh front panel design allows improved air ventilation
• Space grey metallic paint finishing delivers a premium and futuristic look and feel

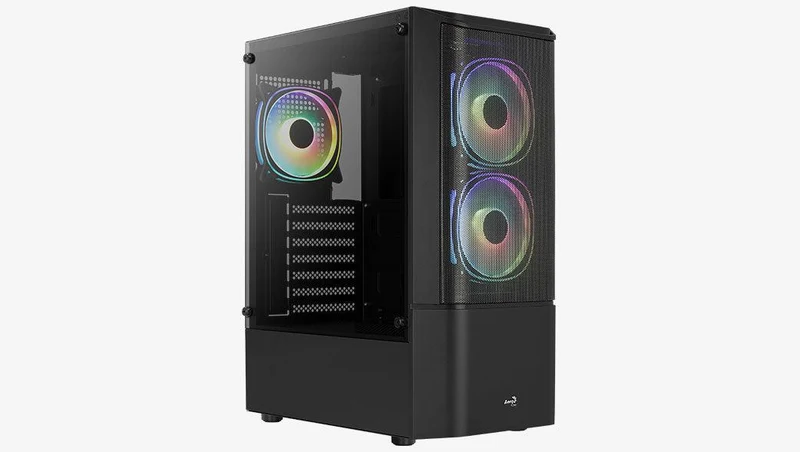

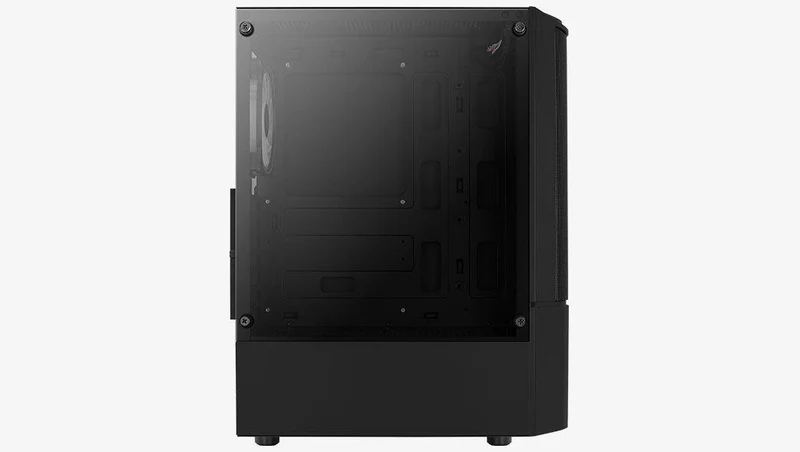

• Comes equipped with a tempered glass side panel to showcase the inside of your rig
• Fan mounts on the PSU shroud supports up to 2 x 120mm fans for superior VGA cooling
• Supports liquid cooling in the front and rear of the case
• Supports air cooling in the front, top, and rear of the case

 Full Specification

Model	Quantum Mesh
Case Type	Mid Tower
Color	Black
Body Material	SPCC
Front Panel Material	ABS
Steel Thickness	0.5mm
Motherboards	ATX/micro ATX/mini-ITX
Case Dimensions (Internal)	200 x 440 x 300mm (W x H x D)
Case Dimensions (Overall)	206 x 450 x 360mm (W x H x D)
3.5” Drive Bays	2 Max. (2 x 3.5”/2.5″)
2.5” Drive Bays	2 Max. (2 x 2.5”/3.5” for Micro-ATX & ATX M/B) 4 Max. (2 x 2.5”/3.5” and 2 x 2.5” for Mini-ITX M/B)

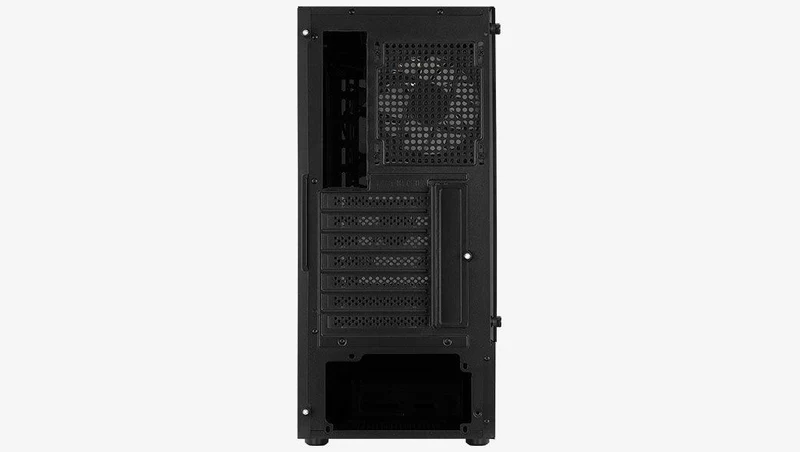

Expansion Slots	7
GPU Clearance	Supports GPU up to 297mm (without front radiator)
CPU Cooler Clearance	Supports CPU cooler up to 158mm
Air Cooling	Front: 120mm x 3 or 140mm x 2 (Max.) Top: 120mm x 2 (Max.) Rear: 120mm x 1 (Max.) PSU Shroud:120mm x 2 (Max.)
Liquid Cooling	Front: 120/240/280mm Radiator (Optional) (for 280mm, supports max length of 323mm and max thickness of 28mm) Rear: 120mm Radiator (Optional)
I/O Ports	USB3.0 x 2 | USB2.0 x 1 | HD Audio & Mic.
Internal Cable Management Depth	18.9mm
Power Supply	ATX PSU (Including cables, up to 160mm) (Optional)
EAN Code	Quantum Mesh-G-BK-v1: 4710562758566 (Includes 12cm Black Fan x 1) Quantum Mesh-G-BK-v2: 4710562758573 (Includes 12cm FRGB Fan x 3) Quantum Mesh-G-BK-v3: 4710562758580 (Includes 12cm RGB Fan x 3)
